16㎥ Compactor Garbage Truck

Compactor Garbage Truck

16㎥ Compactor Garbage Truck

•
•
•

Function:

Compressed garbage truck (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart ,bin lorry , waste collection vehicle) is designed to collect and transport municipal solid waste.

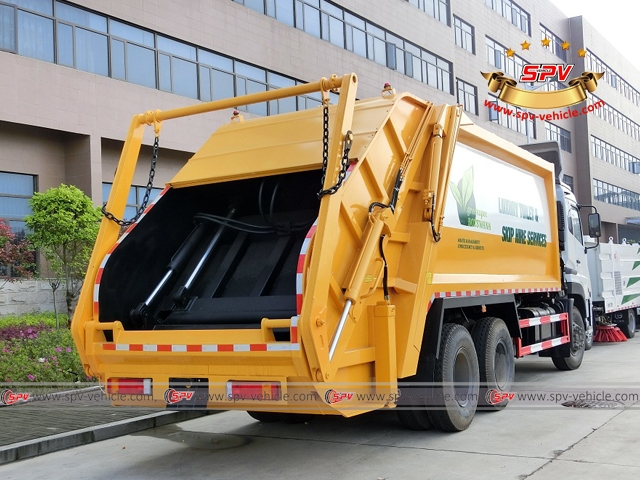

Garbage compactor is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items , to load and transport more garbage by one time. Dirty liquid flows in waste sink, perfectly preventing re-pollution. When arriving at destination , the garbage can be dumped completely. It is ideal solution for solid waste collection.

The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic , with manual control system. Crush the garbage through filling, pushing and spading, finally make the waste compaction in the dustbin.

Features:

---- Dongfeng kinland chassis, perfect performance
----Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life

Specification:

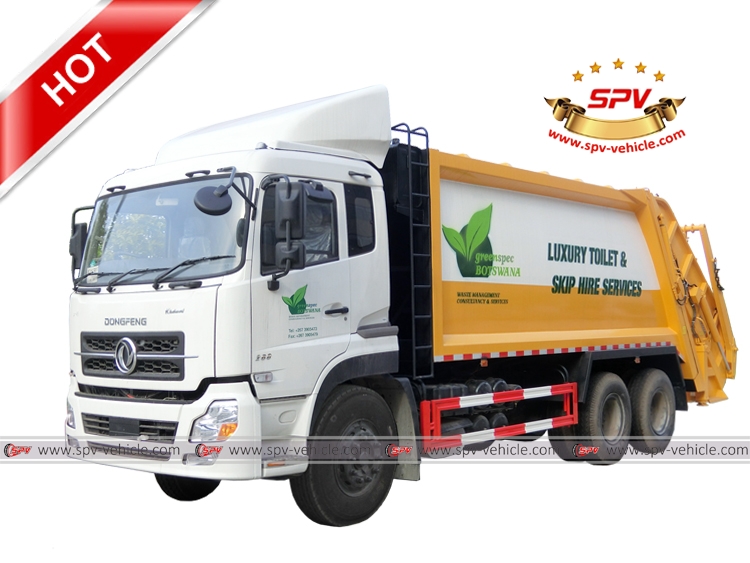

Garbage Compactor Truck Dongfeng Kinland (16㎥)
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng Kinland
	Overall Dimension	10010X2496X3450 mm
	GVW / Kerb Weight	25,000 kg / 14,505 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Air conditioner equipped
Engine	Fuel Type	Diesel
	Engine Brand	Cummins engine
	Power	260 Hp (191 KW)
	Displacement	8300 ml
	Emission Standard	Euro Ⅲ
Chassis	Drive Type	6X4, Right hand drive
	Transmission	9 front and 1 reverse
	Wheelbase/No. of axle	4350+1300 mm / 3
	Tyre Specification	10.00-20
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	80 km/h
	Paint	Metallic paint
Superstructure and the main characteristic	Garbage box Capacity	20㎥ ( 5,284gallons)
	Garbage box Material	Carbon steel
	1: Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism.
	2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.
	3: With working device of emergency braking stop button.
	4: Garbage body use frame design, elegant, strong structure, large effective capacity.
	5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
	6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression.
	7: All other standard accessories: Tool kit, English manual…
