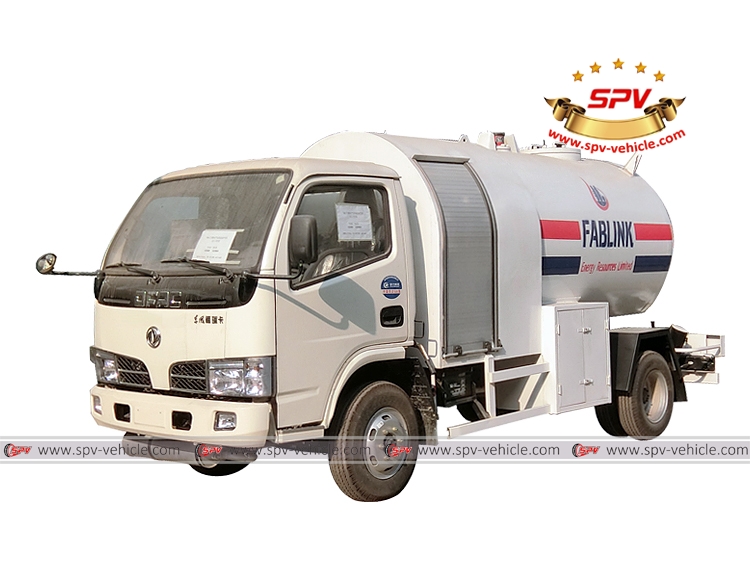

Dongfeng 5,000 Litres LPG Tank Truck

LPG Delivery Truck Dongfeng
5,000 Litres LPG Tank Truck
LPG Delivery Truck Dongfeng

Function:
LPG delivery truck (also called  LPG tank truck, LPG dispensing tanker, LPG tanker truck,LPG transport truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

LPG transport tank truck also can be used as a mobile gas station after equipped with gas dispenser, LPG gas pump.

The LPG tanker material uses a specialized steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.

LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
Features:
---- Dongfeng chassis, perfect performance
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:

LPG Delivery Truck Dongfeng (5,000 Litres )
GeneralVehicle BrandSPV
Chassis BrandDongfeng
Overall Dimension6400 * 2200 * 2750 mm
GVW / Kerb Weight6,800 kg / 4,200 kg
CabCab Capacity2 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandDongfeng Chaoyang engine
Power95 Hp (70 KW)
Displacement3856 ml
Emission StandardEuro III
ChassisDrive Type4X2, left hand or right hand drive
Transmission5-speed forward, 1-reverse
Wheelbase/No. of axle3300 mm / 2
Tyre Specification7.00-16
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureTank Capacity5,000 Litres (1,300 Gallons)
Tank MaterialSpecialized steel for high pressure gas tank
Tank Thickness8 mm
Designe Pressure1.77 Mpa
Designe Temperature50 °C
LPG DispenserEquipped, with ticket printer
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, drainback system, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape…
Optional** Separate inlet and outlet.
** Pump, gas dispenser….

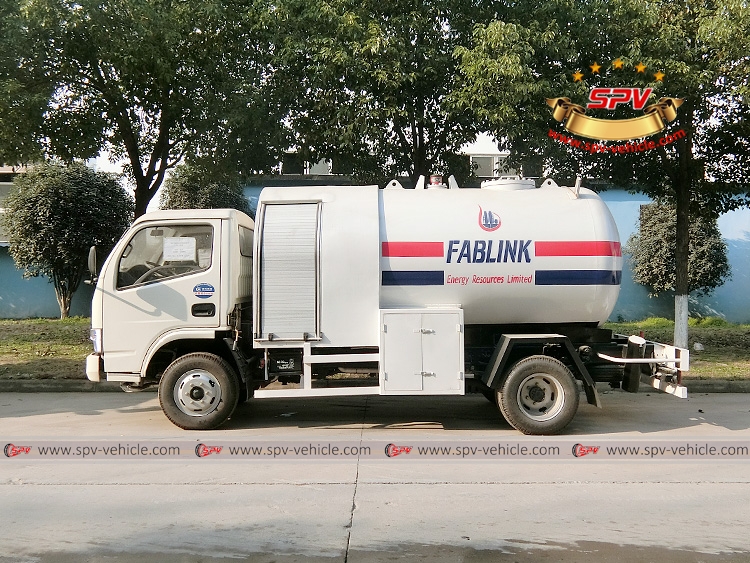

LPG Delivery Truck Dongfeng - LS
Photo 1: Left side view of LPG Delivery Truck Dongfeng - With LPG Dispenser

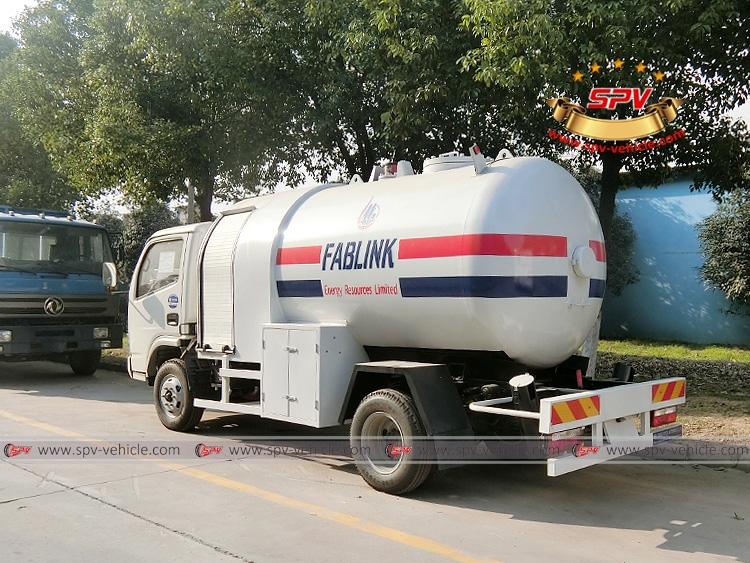

LPG Delivery Truck Dongfeng - LB
Photo 2: Left back view of LPG Delivery Truck Dongfeng - With LPG Dispenser

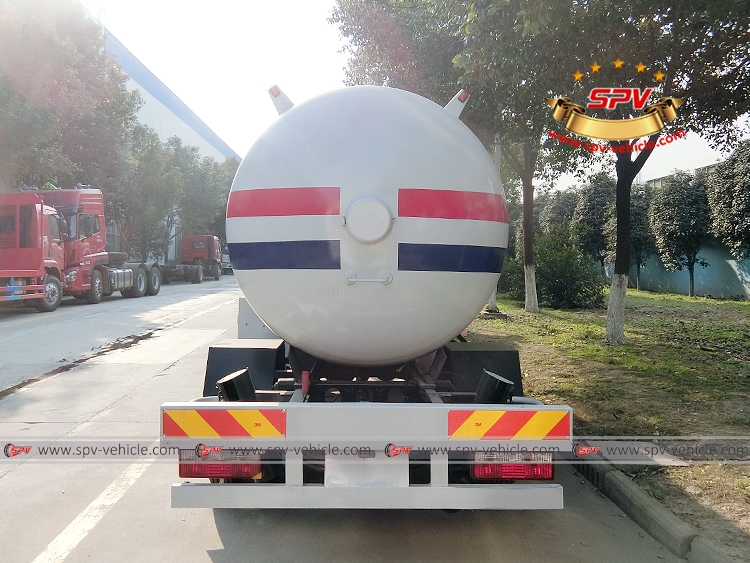

LPG Delivery Truck Dongfeng - B
Photo 3: Back side view of LPG Delivery Truck Dongfeng -  With LPG Dispenser

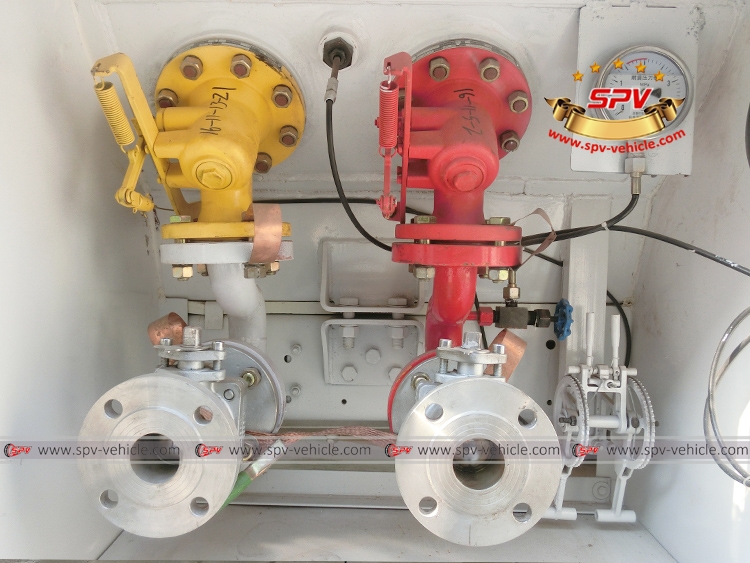

LPG Delivery Truck Dongfeng - Detail View
Photo 4: Detialed view of LPG Delivery Truck Dongfeng

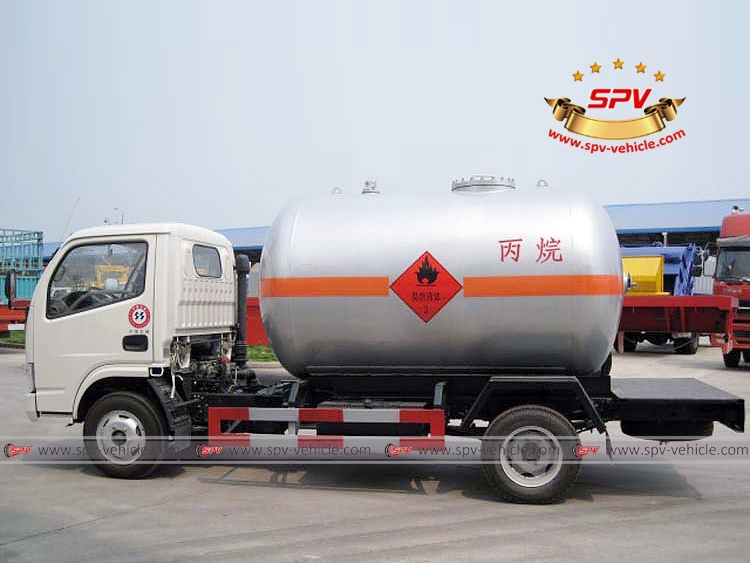

5,000 Litres LPG Delivery Truck-LS
Photo 5: Left Side View of LPG Delivery Truck Dongfeng(5,000 Litres)

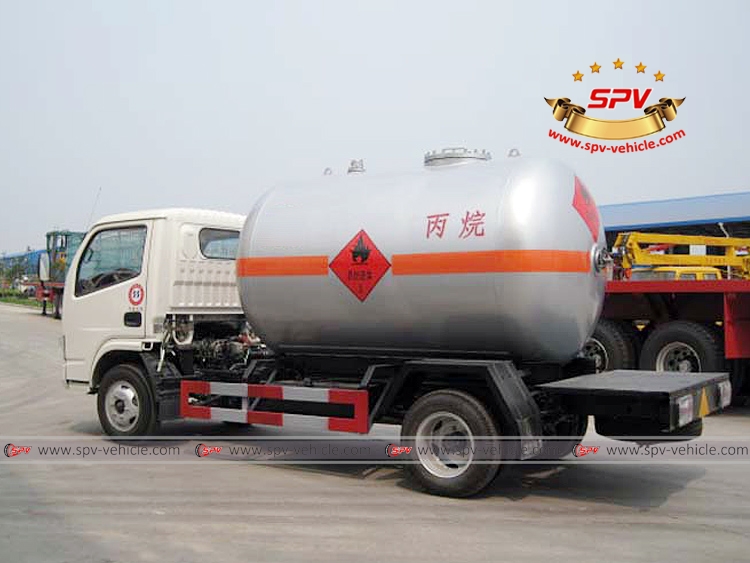

5,000 Litres LPG Delivery Truck-LB
Photo 6: Left Back View of LPG Delivery Truck Dongfeng(5,000 Litres)

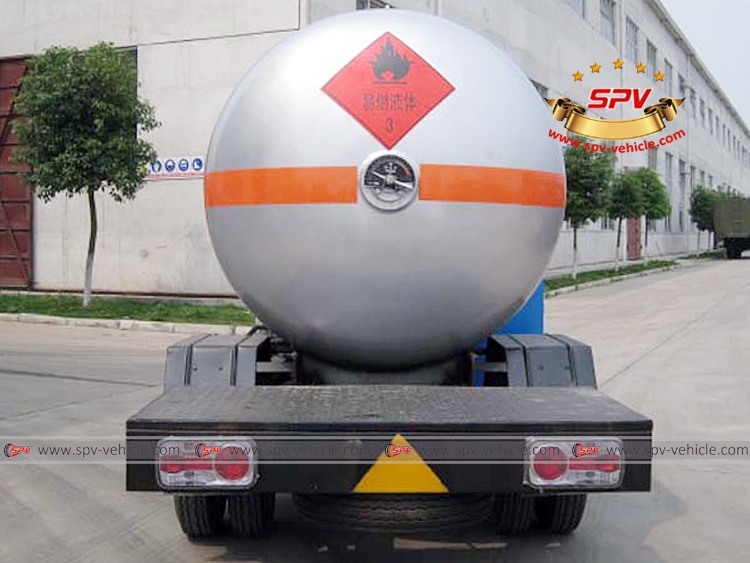

5,000 Litres LPG Delivery Truck-B
Photo 7: Back View of LPG Delivery Truck Dongfeng(5,000 Litres)
Similar Key Words: truck mounted LPG tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck
