Changan 1,000 Litres Water Tender Truck

Mini Fire Truck Changan

1,000 Litres Water Tender Truck

•
•
•

Function:

Fire truck (also called water fire truck, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire fighting equipment) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- Changan chassis, perfect performance.
---- Changan petroleum engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.

Specification:

Mini Fire Truck Changan (1,000 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	Changan
	Overall Dimension	4200 * 1600 * 2000 mm
	GVW / Kerb Weight	2,500 kg / 1,360kg
Cab	Cab Capacity	2 persons allowed
	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Petroleum
	Engine Brand	Changan Chaoyang
	Power	53 Ps (39 KW)
	Displacement	1012 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	5-speed front, 1 reverse
	Wheelbase/No. of axle	2500 mm / 2
	Tyre Specification	165/70R13LT
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Water Capacity	1,000 Litres (About 260 gallons)
	Tank Material	Carbon steel
	Fire Pump	Flow speed	20L/s
		Pressure	1.0MPa
	Fire Cannon	Flow speed	20 L/s
		Shot	48 m
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional	Ladders, floodlights...

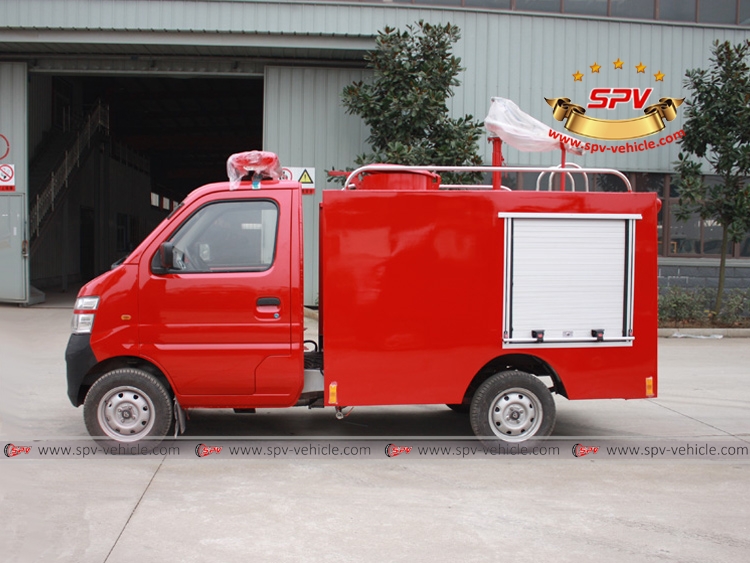

Photo 1: Left side view of Changan fire truck (1,000 Litres)

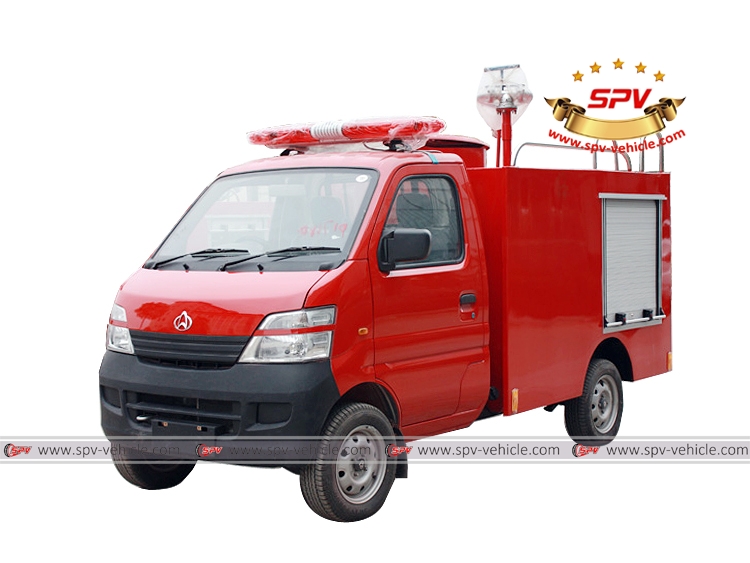

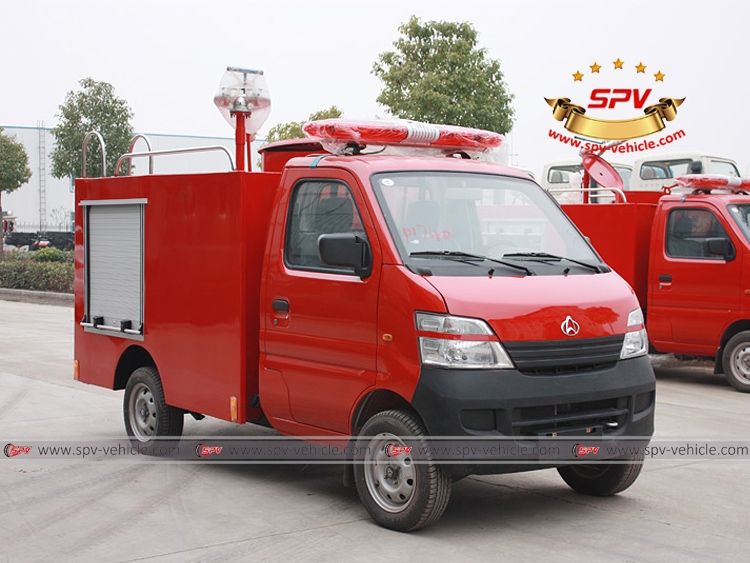

Photo 2: Right front view of Changan fire truck (1,000 Litres)

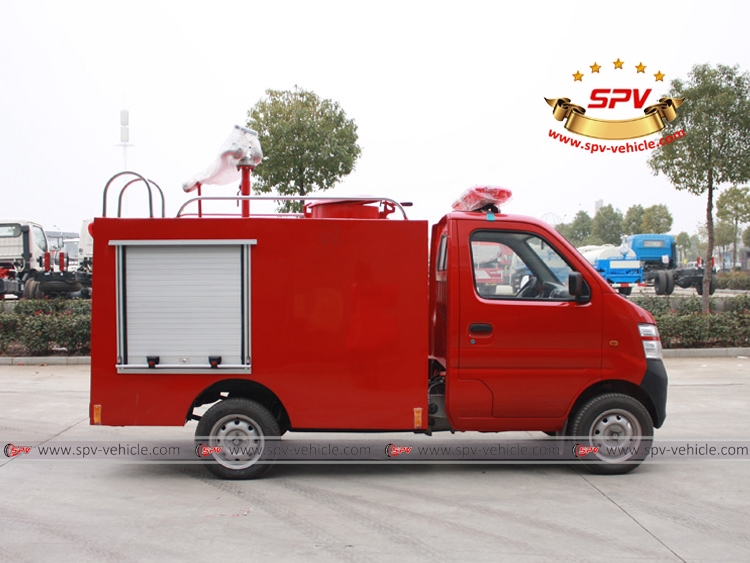

Photo 3: Right side view of Changan fire truck (1,000 Litres)
