DONGFENG 16,000Litres Vacuum Tank

Sewer Cleaner DONGFENG

16,000Litres Vacuum Tank

•
•
•

Function:

Sewer cleaner (also called truck mounted sewage vacuum cleaner, vacuum tank truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, cesspit emptier, gully emptier etc.) is used to collect, transport and discharge liquid such as waste water, waste oil, sludge, septic, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

SPV sewage vacuum cleaners are available in several standard size with tank capacity of 4,000L (1060gals), 6 ,000L (1600gals), 8 ,000L (gals), 10 ,000L (2100gals), 12 ,000L (3200gals), 14 ,000L (3700gals), 16 ,000L (4200gals), 18 ,000L (4800gals) ……

Cylinderial vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. With full opening design, discharge can be very quick and complete.

Features:

---- Vacuum tank mounted on DONGFENG – KINLONG rigid chassis, perfect performance.
---- Cummins diesel engine, super powerful, reliable performance, no overhaul within 100,000 km.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

Specification:

Similar Key Words:   sewage suction truck, sewage vacuum truck, suction sewage tanker truck, waste vacuum tanker, oil vacuum tanker, waste oil collection tanker, sewage suction truck, vacuum cleaning truck…

Sewer Cleaner Dongfeng (16,000 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng
	Overall Dimension	9600 * 2500 * 3690 mm
	GVW / Kerb Weight	25,000 kg / 12,305 kg
Cab	Cab Capacity	2 persons allowed
	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Cummins engine
	Power	260 Ps (191 KW)
	Displacement	8300 ml
	Emission Standard	Euro III
Chassis	Drive Type	6X4, left or right hand drive
	Transmission	9-speed front, 1 reverse
	Wheelbase/No. of axle	4350+1300 mm / 3
	Tyre Specification	11.00-20
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	16,000 Litres (about 4,200 gallons)
	Tank Material	High quality carbon steel (mild steel), with anti-rust coating inside tanker
	Suction Head	7m
	Vacuum Pump	Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
	Hose	High quality, wire strengthened hose
	Install vacuum Pump drive by engine through PTO, 2sets of hydraulic cylinders. one multi-way valve, two pressure gauges, one water-gas separator, one oil-gas separator, one oil tank reservoir, a level inspection window and a piece of 6m suction hose.
	Rear door can be hydraulic opened for complete discharge of solid stuff.
Optional	** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand……

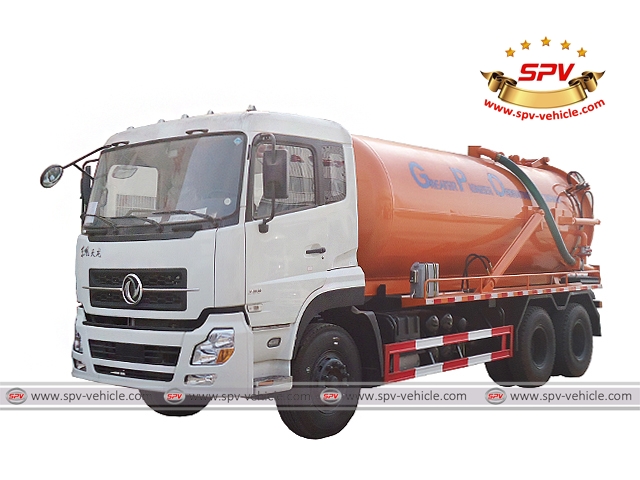

Photo 1: Front view of 16,000Litres Sewage Vacuum Cleaner Dongfeng

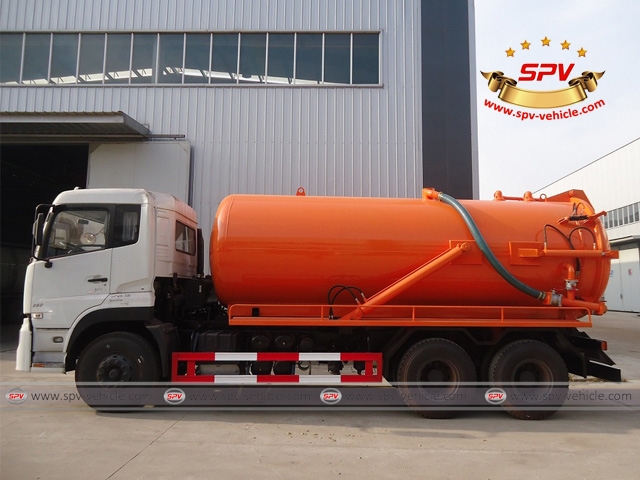

Photo 2: Side view of 16,000Litres Sewage Vacuum Cleaner Dongfeng

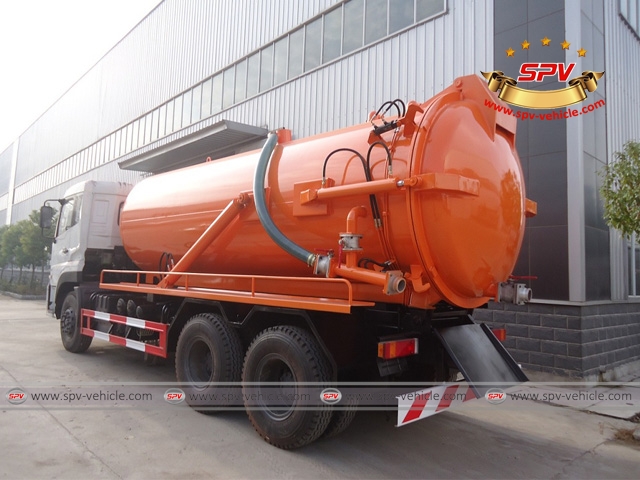

Photo 3: Rear view of 16,000Litres Sewage Vacuum Cleaner Dongfeng

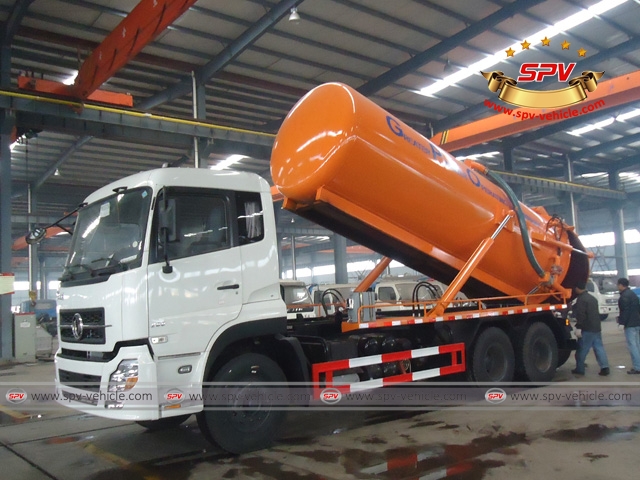

Photo 4: Sewage vacuum tank can be lifted hydraulically to 40-45 degree

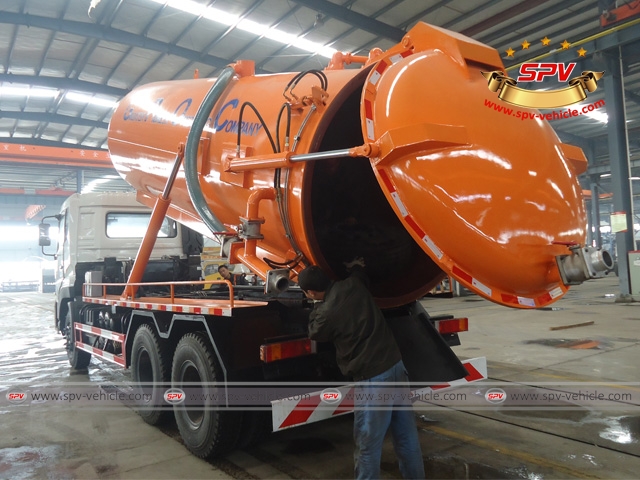

Photo 5: Vacuum tanker rear door can be opened and closed hydraulically

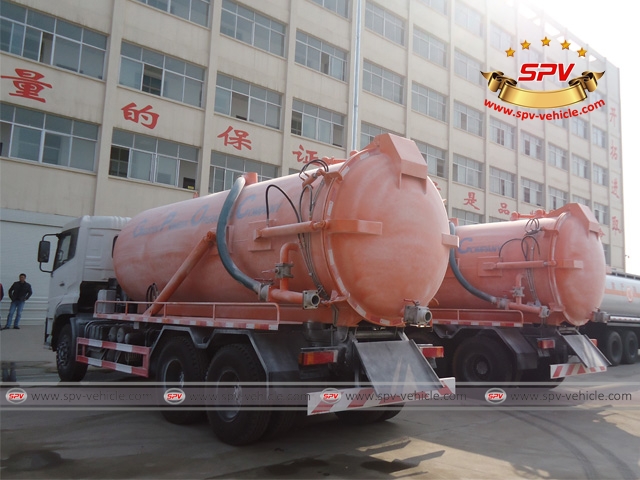

Photo 6: 16,000Litres Sewage Vacuum Cleaners were ready for East Africa
