Dongfeng 25,000 Litres LPG Transport Truck

LPG Tanker Truck Dongfeng
25,000 Litres LPG Transport Truck
LPG Tanker Truck Dongfeng

Function:
LPG tanker truck (also called  LPG transport truck, LPG dispensing tanker, LPG tank truck, LPG tank dispensing truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

LPG transport tank truck also can be used as a mobile gas station after equipped with gas dispenser, LPG gas pump.

The LPG tanker material uses a specialized steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.

LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
Features:
---- Dongfeng chassis, perfect performance
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:

LPG Tanker Truck Dongfeng (25,000 Litres )
GeneralVehicle BrandSPV
Chassis BrandDongfeng
Overall Dimension10500 * 2500 * 3500 mm
GVW / Kerb Weight25,000 kg / 14,500 kg
CabCab Capacity3 persons seat with 1 sleeper
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandCummins engine
Power210 Hp (155 KW)
Displacement5900 ml
Emission StandardEuro III
ChassisDrive Type6X4, left hand or right hand drive
Transmission9-speed forward, 1-reverse
Wheelbase/No. of axle4350+1300 mm / 3
Tyre Specification10.00-20
Tyre Number10 tyres and 1 spare tyre
Max Speed90 km/h
PaintMetallic paint
SuperstructureTank Capacity25,000 Litres
Tank MaterialQ370R
Specialized steel for high pressure gas tank
Tank Thickness12 mm
Designe Pressure1.77 Mpa
Compression Test Pressure2.1 Mpa
Designe Temperature50 °C
LPG DispenserOptional
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, drainback system, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape…
Optional** Separate inlet and outlet.
** Pump, gas dispenser….

LPG Tanker Truck Dongfeng - F

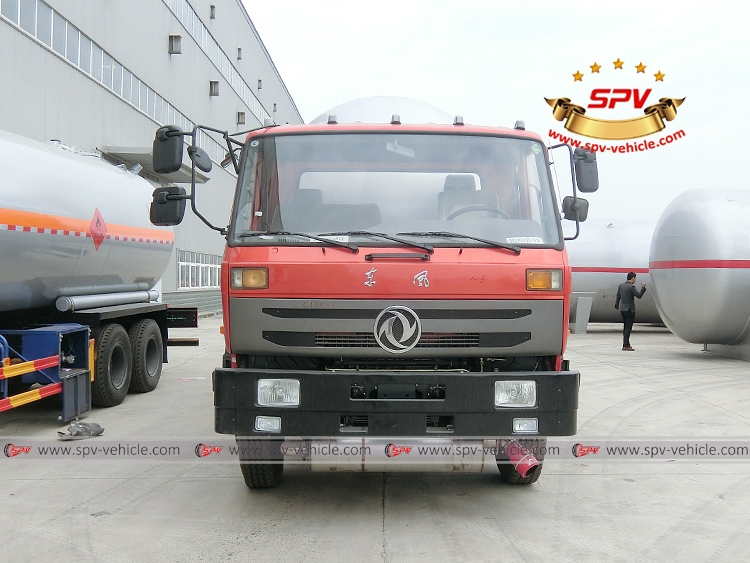

Photo 1: Front View of LPG Tanker Truck Dongfeng(25,000 litres)

LPG Tanker Truck Dongfeng - LF

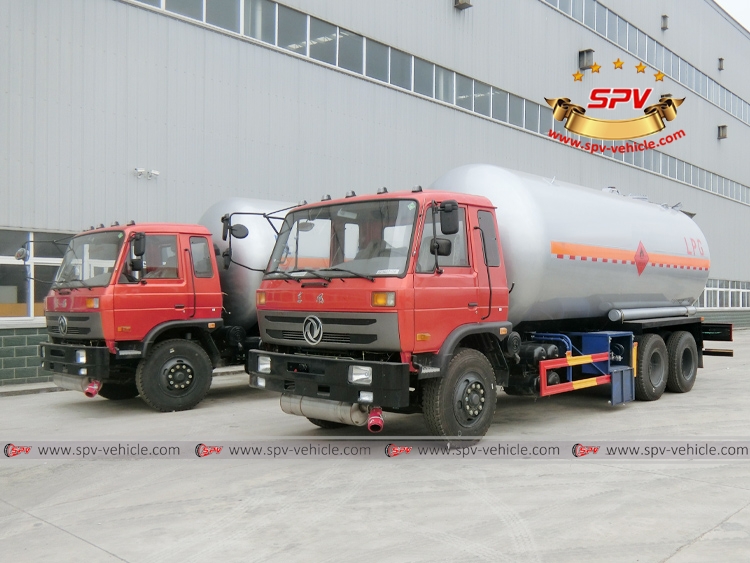

Photo 2: Left front View of LPG Tanker Truck Dongfeng(25,000 litres)

LPG Tanker Truck Dongfeng - LS

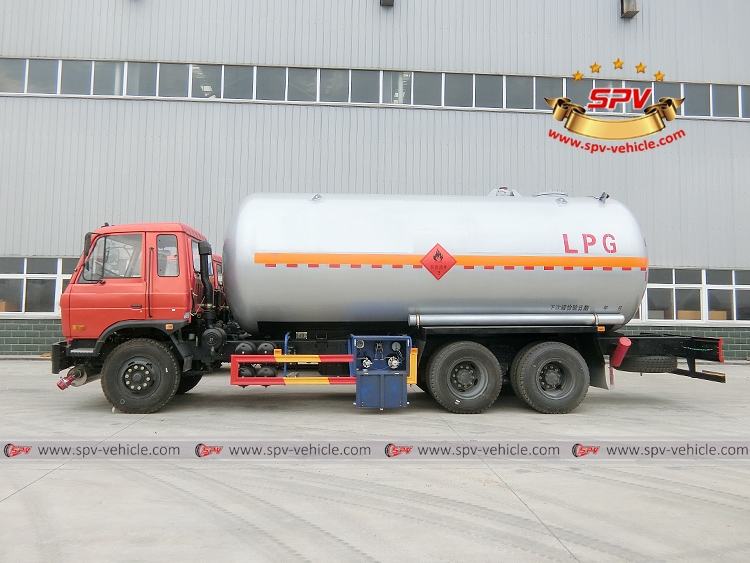

Photo 3: Left side View of LPG Tanker Truck Dongfeng(25,000 litres)

LPG Tanker Truck Dongfeng - LB

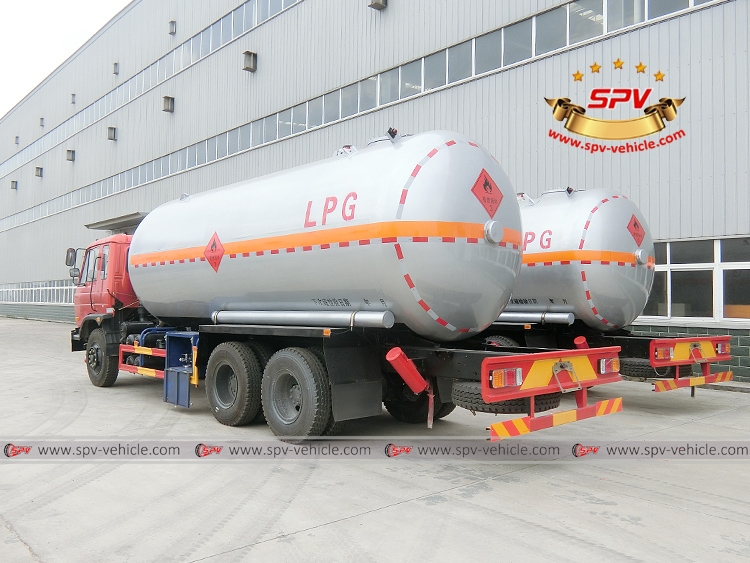

Photo 4: Left back View of LPG Tanker Truck Dongfeng(25,000 litres)

LPG Tanker Truck Dongfeng - B

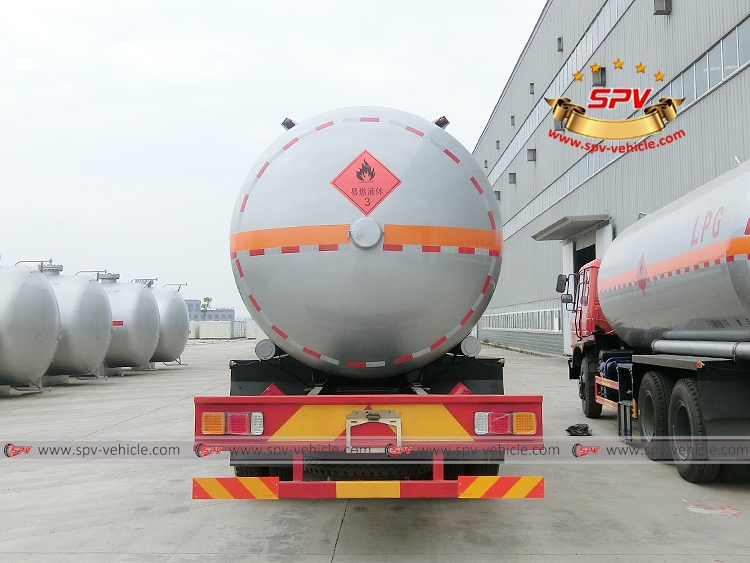

Photo 5: Back View of LPG Tanker Truck Dongfeng(25,000 litres)
Similar Keywords: truck mounted LPG tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck
