Dongfeng 4 CBM dustbin and 2 CBM water tank

Road Sweeper with Snowplow Dongfeng
4 CBM dustbin and 2 CBM water tank


Function:
Road sweeper (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.

By adding a device of snowplow, this road sweeper could also be used to clean snow on the road.
Features:
---- Dongfeng chassis, perfect performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Specification:
Similar Key Words: multi-function road sweeper, street cleaner, road sweeper, sweeper truck
Road Sweeper with Snowplow Dongfeng
GeneralVehicle BrandSPV
Chassis BrandDongfeng
Overall Dimension7800 * 2000 * 2400 mm
GVW / Kerb Weight6,895kg / 4,965kg
CabCab Capacity2 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandDongfeng
Power120 Ps (88 KW)
Displacement3856 ml
Emission StandardEuro III
ChassisDrive Type4X2, left hand drive
Transmission5-speed front, 1 reverse
Wheelbase/No. of axle3800 mm / 2
Tyre Specification6.50-16
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureWater TankStainless Steel
Dustbin Capacity4 CBM
Dustbin MaterialStainless Steel
Water Tank Capacity2,000 Litres (About 500 gallons)
Sweeping Capacity42,000 m³/h
Sweeping Speed3-15 km/h
Max Sweeping Width2800mm
Brooms2 sets at each side, at diameter 900 mm
Auxiliary EngineJMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

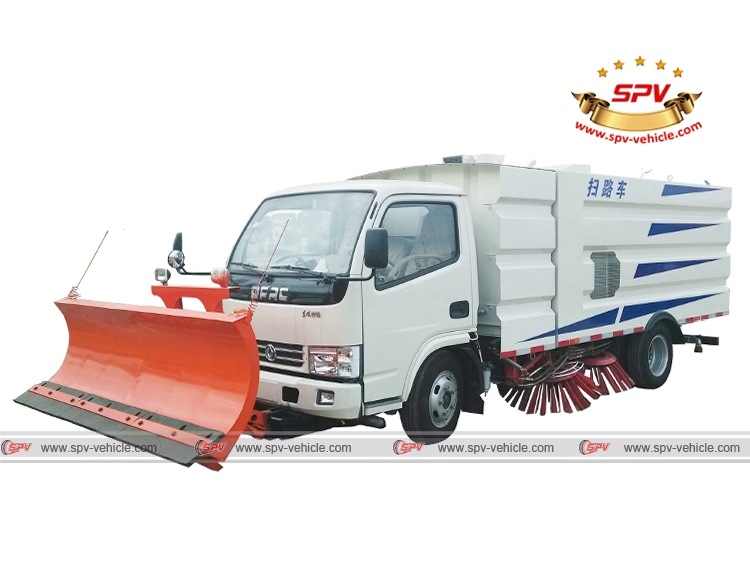

Photo 1: Left front view of Road Sweeper with Snowplow Dongfeng

Photo 2: Left back view of Road Sweeper with Snowplow Dongfeng


Photo 3: Right front view of Road Sweeper with Snowplow Dongfeng

Photo 4: Right back view of Road Sweeper with Snowplow Dongfeng


Photo 5: Detail view of the front snowplow
