Dongfeng 6 CBM dustbin and 4 CBM water tank

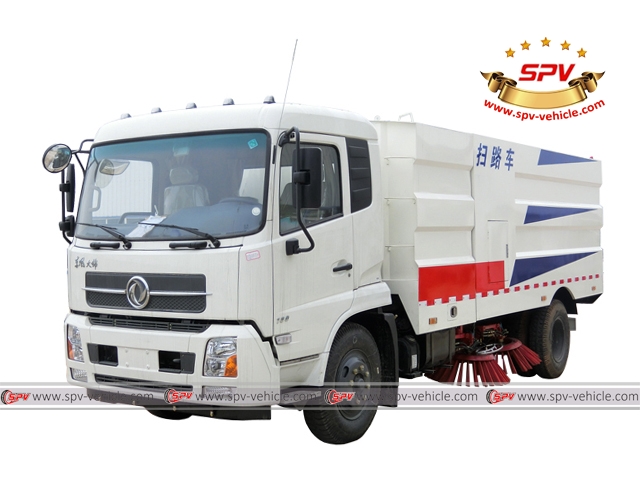

Road cleaning truck Dongfeng
6 CBM dustbin and 4 CBM water tank





Function:
Road sweeper (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is used for all cleaning, brushing and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city/ municipal roads and areas.

It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

It is composed of water tank, dustbin, sprayers, sweeping brooms, auxiliary engine, air blower, etc.

It is widely used in the municipal sanitation field because of convenient operation and high efficiency.
Features:
---- Dongfeng chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
---- 6 CBM dustbin and 4 CBM water tank
Specification:
Similar Key Words: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck
Road Cleaning Truck Dongfeng
GeneralVehicle BrandSPV
Chassis BrandDongfeng
Overall Dimension7880 * 2500 * 3150 mm
GVW / Kerb Weight16,000kg / 10,200 kg
CabCab Capacity3 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandCummins
Power190 Ps (140 KW)
Displacement5900 ml
Emission StandardEuro III
ChassisDrive Type4X2, left hand drive
Transmission6-speed front, 1 reverse
Wheelbase/No. of axle4200 mm / 2
Tyre Specification10.00-20
Tyre Number6 tyres and 1 spare tyre
Max Speed90 km/h
PaintMetallic paint
SuperstructureWater TankStainless Steel
Water Tank Capacity4,000Litres (About 1,000 gallons)
Dustbin MaterialStainless Steel
Dustbin Capacity6 CMB
Sweeping Capacity42,000 m³/h
Sweeping Speed3-15 km/h
Max Sweeping Width2800mm
Brooms2 sets at each side, at diameter 900 mm
Auxiliary EngineJMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
