Dongfeng 7 CBM Dustbin and 3.5 CBM Water Tank

Road Sweeper Truck Dongfeng
7 CBM Dustbin and 3.5 CBM Water Tank



Function:
Road sweeper truck (also street cleaing truck, road sweeping vehicle, truck mounted sweeper, road cleaning truck, street sweeping truck, street cleaning truck) is used for all cleaning, brushing and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city/ municipal roads and areas.
It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

It is composed of water tank, dustbin, sprayers, sweeping brooms, auxiliary engine, air blower, etc.

It is widely used in the municipal sanitation field because of convenient operation and high efficiency.
Features:
---- Dongfeng chassis, perfect performance.
---- Cummins engine(American brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 7 CBM Dustbin and 3.5 CBM Water Tank
Specification:

Road Sweeper Truck Dongfeng(7 CBM Dustbin and 3.5 CBM Water Tank)
GeneralVehicle BrandSPV
Chassis BrandDongfeng
Overall Dimension8600 * 2500 * 3000 mm
GVW / Kerb Weight16,000kg / 12,900 kg
CabCab Capacity3 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandCummins Engine(American brand)
Power190 Ps (140 KW)
Displacement5900 ml
Emission StandardEuro III
ChassisDrive Type4X2, left hand or right hand drive
Transmission6-speed front, 1 reverse
Wheelbase/No. of axle4500 mm / 2
Tyre Specification9.00-20
Tyre Number6 tyres and 1 spare tyre
Max Speed90 km/h
PaintMetallic paint
SuperstructureWater TankStainless Steel
Water Tank Capacity3,500Litres (About 900 gallons)
Dustbin MaterialStainless Steel
Dustbin Capacity7 CBM
Sweeping Capacity45,000 -90,000 m³/h
Sweeping Speed3-25 km/h
Max Sweeping Width3000 - 3500 mm
Brooms2 sets at each side
Auxiliary EngineCummins engine (American brand)
140 HP (103 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

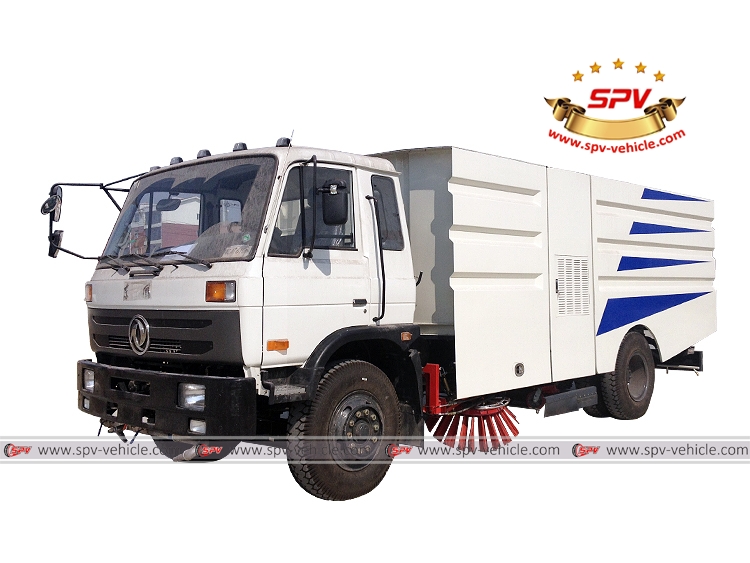

Photo 1: Front view of Road Sweeper Truck Dongfeng (7 CBM Dustbin and 3.5 CBM Water Tank)


Photo 2: Left side view of Road Sweeper Truck Dongfeng (7 CBM Dustbin and 3.5 CBM Water Tank)


Photo 3: Left back view of Road Sweeper Truck Dongfeng (7 CBM Dustbin and 3.5 CBM Water Tank)


Photo 4: Back view of Road Sweeper Truck Dongfeng (7 CBM Dustbin and 3.5 CBM Water Tank)

Photo 5: Right front view of Road Sweeper Truck Dongfeng (7 CBM Dustbin and 3.5 CBM Water Tank)


Photo 6: Right back view of Road Sweeper Truck Dongfeng (7 CBM Dustbin and 3.5 CBM Water Tank)
Similar Key Words: street cleaing truck, road sweeping vehicle, truck mounted sweeper, road cleaning truck, street sweeping truck, street cleaning truck
