Dongfeng 8 CBM Dustbin Capacity

Vacuum Sweeper Truck Dongfeng

8 CBM Dustbin Capacity

•

Function:

Vacuum sweeper truck (also called air vacuum truck, street cleaing truck, road sweeping vehicle, truck mounted sweeper, road cleaning truck, street sweeping truck, street cleaning truck) is used for all cleaning, brushing and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city/ municipal roads and areas.

Vacuum sweeper truck is a new style of road sweeper truck. It could be used to cleaning not only dry dust but also wet trash. And it doesn’t have raising dust problem because of the brush shield and vacuum pipe.

There are two stainless steel dustbins for collecting dry and wet trash. And their functions are independent. Wet trash will never be collected into the dry dustbin.

The special dry  and  wet cleaing swith modle makes  it widely used in dry and dusty places for road cleaning. Such as mining factory, lime / cement company, steel factory, etc.

Features:

---- Dongfeng chassis, perfect performance.
---- Cummins engine(American brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 6 CBM Dry Trash Dustbin and 2 CBM Wet Trash Dustbin

Specification:

Vacuum Sweeper Truck Dongfeng
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng
	Overall Dimension	8200 * 2500 * 3200 mm
	GVW / Kerb Weight	16,000kg / 11,280 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Air conditioner is equipped
Engine	Fuel Type	Diesel
	Engine Brand	Cummins Engine(American brand)
	Power	180 Ps (132 KW)
	Displacement	5900 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left hand or right hand drive
	Transmission	6-speed front, 1 reverse
	Wheelbase/No. of axle	4500 mm / 2
	Tyre Specification	9.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Dry Trash Dustbin	6 CBM
	Wet Trash Dustbin	2 CBM
	Dustbin Material	Stainless Steel
	Cleaning Speed	3 - 25 km / h
	Cleaing Capacity	45,000 -90,000 m³/h
	Max. Diameter of Particle	110 mm
	No. of Dust Filter	14
	Diameter of Brush	835 mm
	Auxiliary Engine	Cummins engine (American brand) 170 HP (125 KW), super powerful
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel.

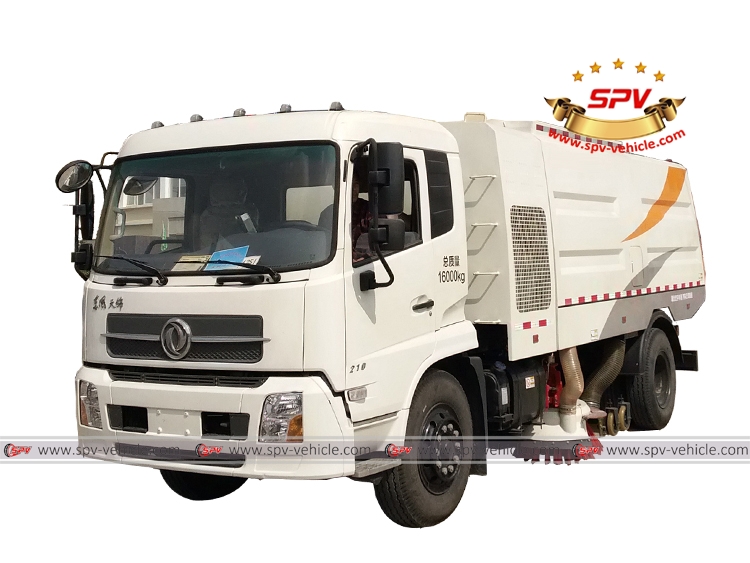

Photo 1: Front view of Vacuum Sweeper Truck Dongfeng (6 CBM Dry Trash Dustbin and 2 CBM Wet Trash Dustbin)

Photo 2: Left side view of Vacuum Sweeper Truck Dongfeng (6 CBM Dry Trash Dustbin and 2 CBM Wet Trash Dustbin)
**  Brush shield and vacuum pipe equipped for  cleaing road without dust raising.  **

Photo 3: Left back view of Vacuum Sweeper Truck Dongfeng (6 CBM Dry Trash Dustbin and 2 CBM Wet Trash Dustbin)


Photo 4: Right side view of Vacuum Sweeper Truck Dongfeng (6 CBM Dry Trash Dustbin and 2 CBM Wet Trash Dustbin)

Photo 5: Right back view of Vacuum Sweeper Truck Dongfeng (6 CBM Dry Trash Dustbin and 2 CBM Wet Trash Dustbin)
