Dongfeng(RHD) 5 m³ Water Tank and 1.5m³ Foam Tank

Fire Fighting Truck Dongfeng(RHD)

5 m³ Water Tank and 1.5m³ Foam Tank

•
•
•

Function:

Fire fighting truck (also called fire fighting vehicle, fire engine, fire fighting apparatus, fire service truck, fire and rescue truck, foam fire tank truck, fire-extinguishing foam tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- Dongfeng chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 6,500 Litres fire truck carries 5,000 litres water tank and 1,500 litres foam tank

Specification:

Right Hand Drive Fire Fighting Truck Dongfeng (6,500 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng
	Overall Dimension	7900 * 2500 * 3400 mm
	GVW / Kerb Weight	14,900kg / 8,380kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	Cummins
	Power	190 Ps (140 KW)
	Displacement	5900 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, right hand drive
	Transmission	6-speed front, 1 reverse
	Wheelbase/No. of axle	4500 mm / 2
	Tyre Specification	10.00R20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	85 km/h
	Paint	Metallic paint
Superstructure	Water Tank Material	Stainless Steel
	Water Capacity	5,000 Litres (About 1,300 gallons)
	Foam Tank Material	Stainless Steel
	Foam Capacity	1,500 Litres (About 400 gallons)
	Tank Material	Carbon steel
	Fire Pump	Flow speed	60L/s
		Pressure	1.0 MPa
	Fire Cannon	Flow speed	Water	50 L/s
			Foam	50 L/s
		Shot	Water	65 m
			Foam	55 m
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional	Ladders, floodlights...

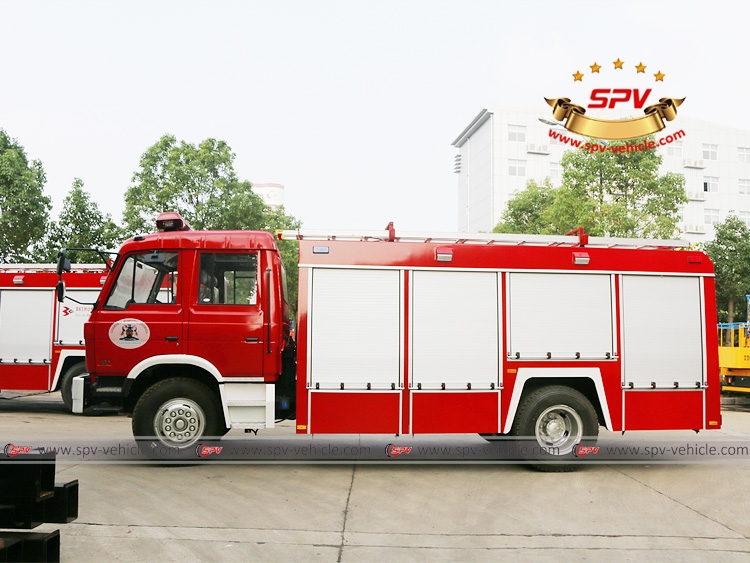

Photo 1: Left side view of Dongfeng Fire Fighting Truck (Right Hand Drive, 5,000 Litres Water & 1,500 Litres Foam)

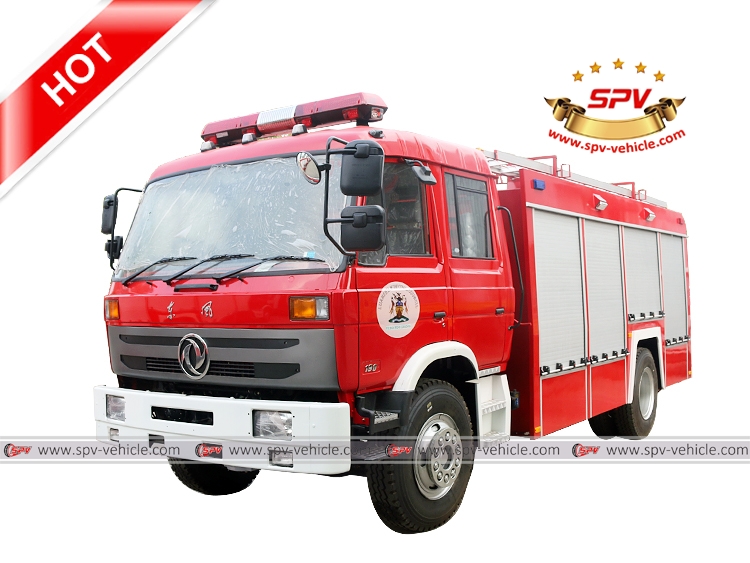

Photo 2: Right Front view of Dongfeng Fire Fighting Truck (Right Hand Drive, 5,000 Litres Water & 1,500 Litres Foam)

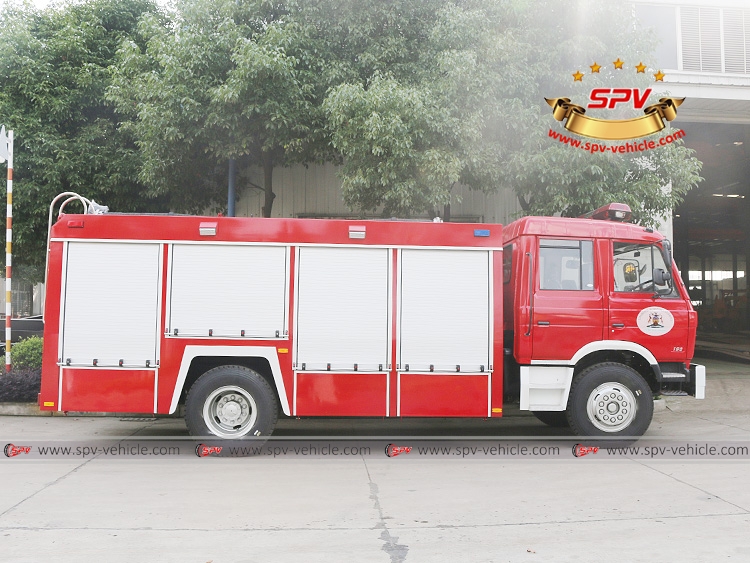

Photo 3: Right Side view of Dongfeng Fire Fighting Truck (Right Hand Drive, 5,000 Litres Water & 1,500 Litres Foam)

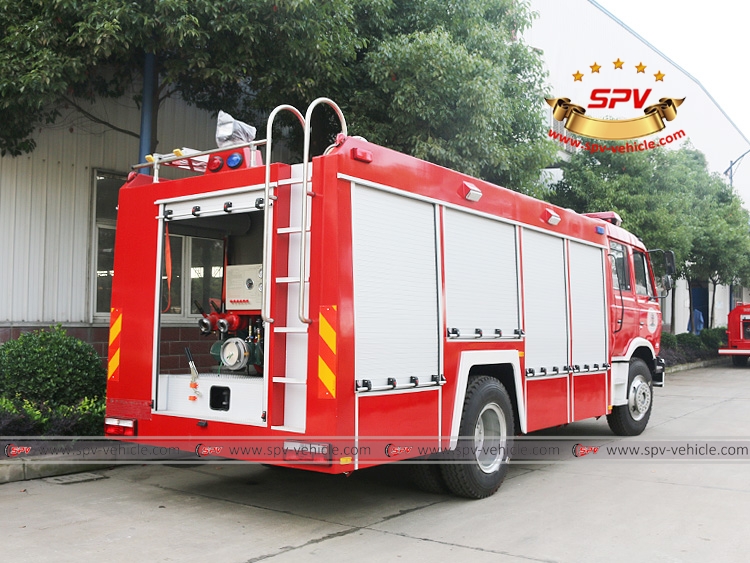

Photo 4: Right Back view of Dongfeng Fire Fighting Truck - To Zambia

--- More shipments of fire fighting trucks to Tajikistan ---

Photo 5: To Tajikistan - 3 units of Dongfeng Foam Fire Truck

--- More shipments of fire fighting trucks to Zambia ---

 Photo 7: To Zambia -  Dongfeng Fire Fighting Truck

--- More shipments of fire fighting trucks to Bangladesh ---

 Photo 8: To Bangladesh - Dongfeng Fire Fighting Truck

Photo 9 : On-site training in Bangladesh for Dongfeng fire fighting trucks (5,000 litres water & 1,000 litres foam)


Photo 10: On-site training in Bangladesh for Dongfeng fire fighting trucks (5,000 litres water & 1,000 litres foam)


Photo 12 : On-site training in Bangladesh for 3 units of Dongfeng fire fighting trucks (5,000 litres water & 1,000 litres foam)
