Forland 2,000 L Sewer Vacuum Truck

Vacuum Truck Forland
2,000 L Sewer Vacuum Truck
Vacuum Truck Forland

Function:
Vacuum truck (also called sewer vacuum truck, sewer vacuum truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
Features:
---- Foton - Forland chassis, perfect performance.
---- Chinese Top Yunei engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.
Specification:

Vacuum Truck Forland (2,000 Litres)
GeneralVehicle BrandSPV
Chassis BrandForland
Overall Dimension5300 × 1900 × 2100 mm
GVW / Kerb Weight4,294 kg / 2,094 kg
CabCab Capacity2 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandChinese top Yunei engine
Power90 Ps (66 KW)
Displacement2600 ml
Emission StandardEuro II
ChassisDrive Type4X2, left hand or right hand drive
Transmission5-speed front, 1 reverse
Wheelbase/No. of axle2600 mm / 2
Tyre Specification6.50-16
Tyre Number6 tyres and 1 spare tyre
Max Speed80 km/h
PaintMetallic paint
SuperstructureTank Capacity2,000 Litres (about 500 gallons)
Tank MaterialCarbon steel
Suction Head6 m
Vacuum PumpHighly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m.
HoseHigh quality, wire strengthened hose
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: inlet, discharge, antifill valve……..
Optional** Tank material could be carbon steel, stainless steel..…..
** Vacuum pump could be imported brand……

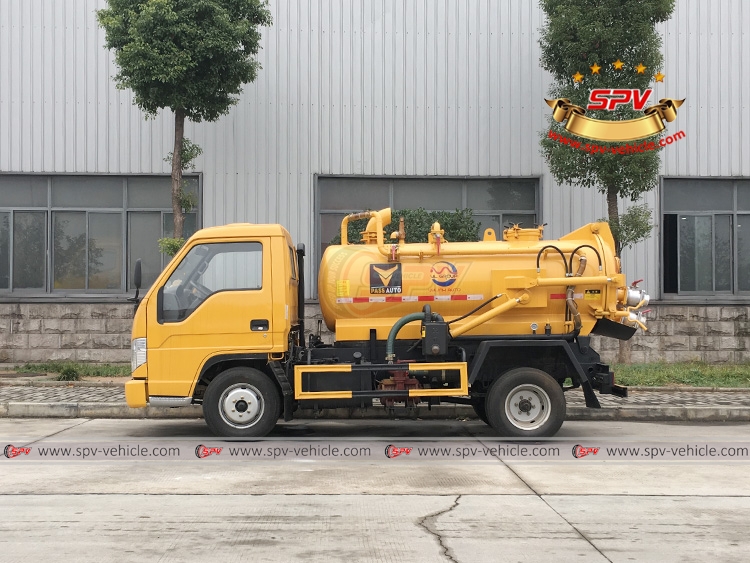

 2,000 Litres Vacuum Truck Forland - LS
Photo 1: Left side view of Vacuum Truck Forland(2,000 litres)

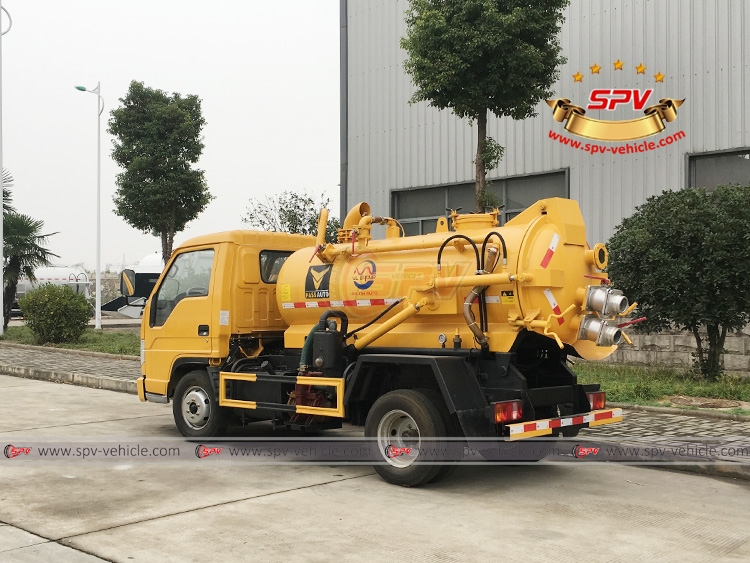

2,000 Litres Vacuum Truck Forland - LB
Photo 2: Left back view of Vacuum Truck Forland(2,000 litres)

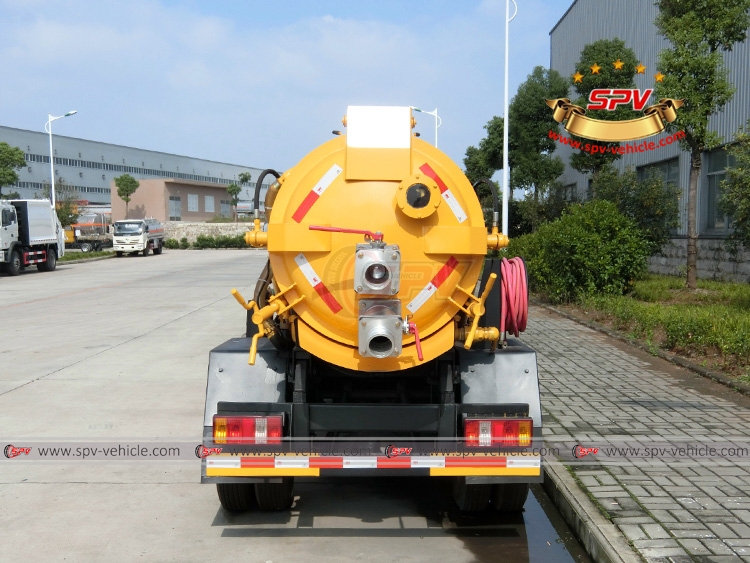

2,000 Litres Vacuum Truck Forland - B
Photo 3: Back view of Vacuum Truck Forland(2,000 litres)

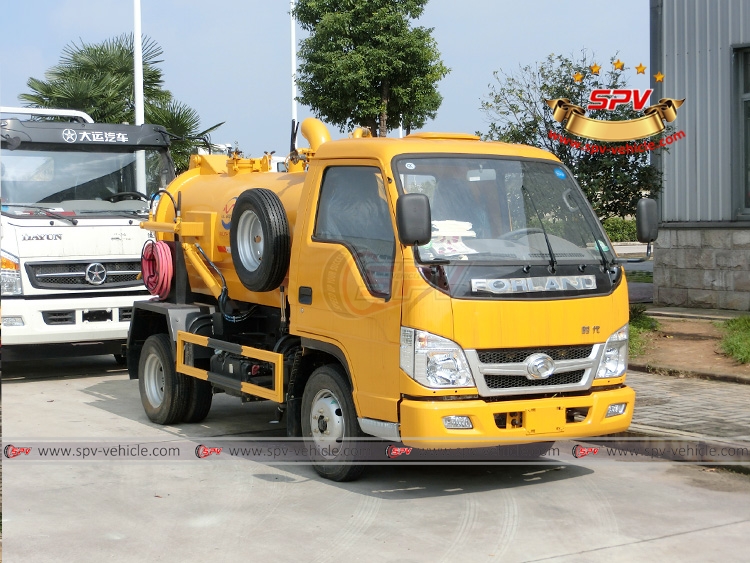

2,000 Litres Vacuum Truck Forland - RF
Photo 4: Right front view of Vacuum Truck Forland(2,000 litres)

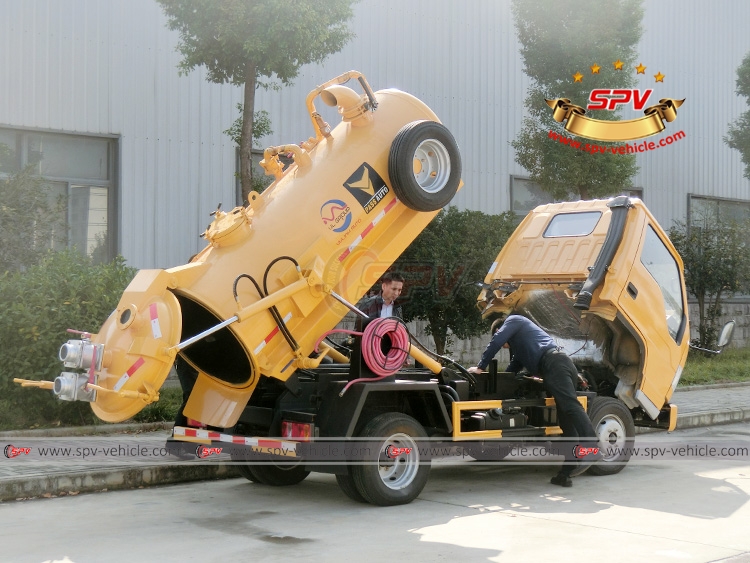

2,000 Litres Vacuum Truck Forland - RB
Photo 5: Right back view of Vacuum Truck Forland(2,000 litres)
