Forland 4 CBM Dustbin and 1.5 CBM Water Tank

Road Cleaning Truck Forland
4 CBM Dustbin and 1.5 CBM Water Tank




Function:
Road cleaning truck (also called road sweeper truck, street cleaing truck, truck mounted sweeper, road cleaning truck, street sweeping truck, street cleaning truck) is used for all cleaning, brushing and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city/ municipal roads and areas.
It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

It is composed of water tank, dustbin, sprayers, sweeping brooms, auxiliary engine, air blower, etc.

It is widely used in the municipal sanitation field because of convenient operation and high efficiency.
Features:
---- Forland chassis, perfect performance.
---- Quanchai diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 4 CBM Dustbin and 1.5 CBM Water Tank
Specification:

Road Cleaning Truck Forland
GeneralVehicle BrandSPV
Chassis BrandForland(Foton)
Overall Dimension6200 * 2300 * 2600 mm
GVW / Kerb Weight7,300kg / 5,100 kg
CabCab Capacity2 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandQuanchai Diesel Engine
Power95 Ps (70 KW)
Displacement2545 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
Transmission5-speed front, 1 reverse
Wheelbase/No. of axle3360 mm / 2
Tyre Specification6.50-16
Tyre Number6 tyres and 1 spare tyre
Max Speed90 km/h
PaintMetallic paint
SuperstructureWater TankStainless Steel
Water Tank Capacity1,500Litres (About 1,000 gallons)
Dustbin MaterialStainless Steel
Dustbin Capacity4 CBM
Sweeping Capacity45,000 -90,000 m³/h
Sweeping Speed3-25 km/h
Max Sweeping Width2800 - 3200 mm
Brooms2 sets at each side
Auxiliary EngineJX493 (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

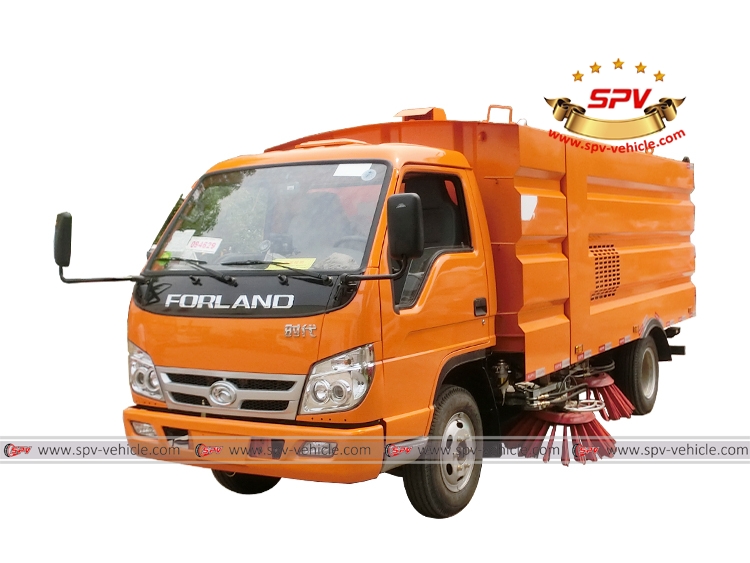

Photo 1: Left side view of Road Cleaning Truck Forland (4 CBM Dustbin and 1.5 CBM Water Tank)


Photo 2: Left back view of Road Cleaning Truck Forland (4 CBM Dustbin and 1.5 CBM Water Tank)


Photo 3: Right front view of Road Cleaning Truck Forland (4 CBM Dustbin and 1.5 CBM Water Tank)


Photo 4: Right side view of Road Cleaning Truck Forland (4 CBM Dustbin and 1.5 CBM Water Tank)


Photo 5: Right back view of Road Cleaning Truck Forland (4 CBM Dustbin and 1.5 CBM Water Tank)
Similar Key Words: sweeper truck, street cleaing truck, truck mounted sweeper, road cleaning truck, street sweeping truck, street cleaning truck
