Foton 12 m³ Concrete Mixer Truck

Transit Mixer Foton
12 m³ Concrete Mixer Truck
Transit Mixer Foton

Function:
Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.
Features:
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts,  massive, durable, perfect performance
---- Prolonged service life
Specification:
 Similar Key Words:  transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
Transit Mixer Foton (12 CBM)
GeneralVehicle BrandSPV
Chassis BrandFoton
Overall Dimension9550 * 2500 * 3950 mm
GVW / Kerb Weight25,000 kg / 14,200 kg
CabCab Capacity3 persons allowed
Air ConditionerAr conditioner is optional
EngineFuel TypeDiesel
Engine BrandWeichai engine
Power340 Hp (250 KW)
Displacement9726 ml
Emission StandardEuro III
ChassisDrive Type6X4, left or right hand drive
Transmission9-speed front, 1 reverse
Wheelbase/No. of axle4100+1350 mm / 3
Tyre Specification11.00-20
Tyre Number10 tyres and 1 spare tyre
Max Speed78 km/h
PaintMetallic paint
SuperstructureMixing Capacity12 m³
Drum MaterialAlloy steel
Hydraulic MotorImported Brand
HydraulicPumpImported Brand
Reduction BoxImported Brand
RadiatorHigh Class Chinese Brand
Rest Rate≤0.5%
Water Supply SystemAir pressure
Water Tank Volume 400L
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.

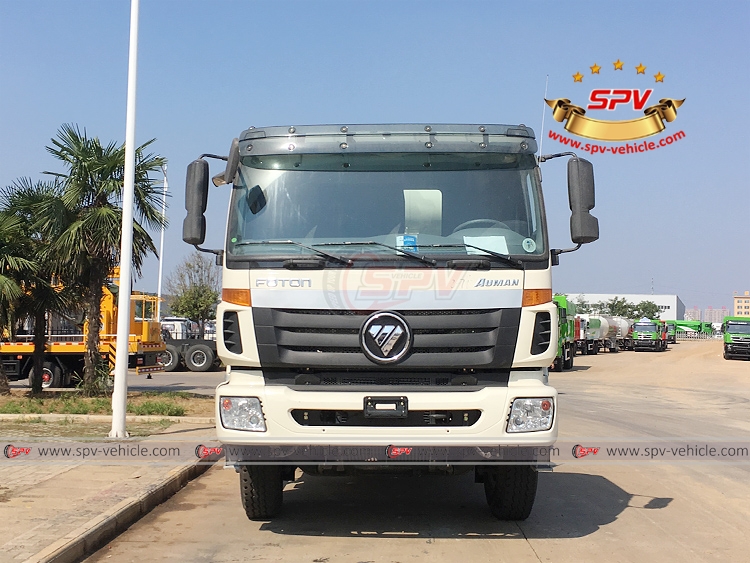

Transit Mixer FOTON - F
Photo 1: Front view of transit mixer truck FOTON

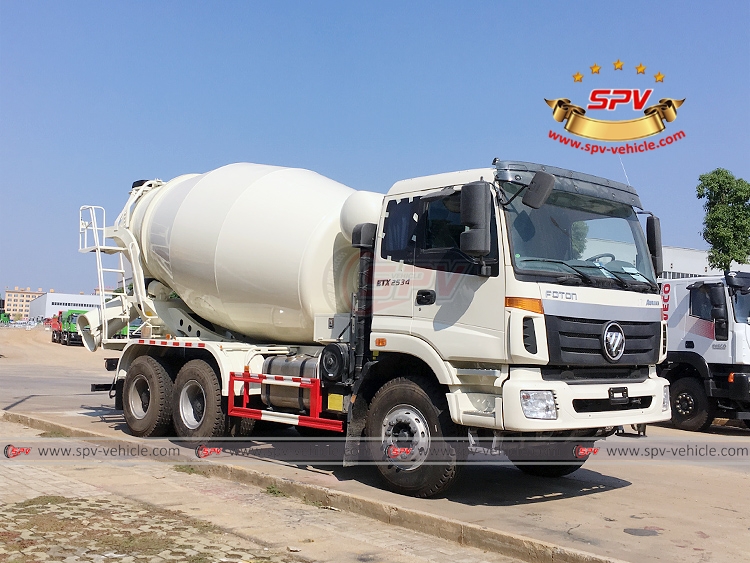

Transit Mixer FOTON - RF
Photo 2: Right Front view of transit mixer truck FOTON

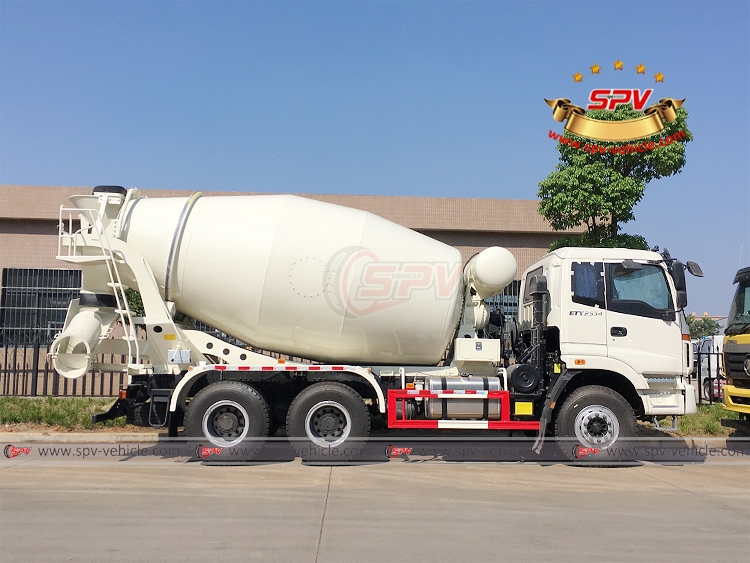

Transit Mixer FOTON - RS
Photo 3: Right side view of transit mixer truck FOTON

Transit Mixer FOTON
Photo 4: Right back view of transit mixer truck FOTON
