FOTON 18㎥ Compactor Waste Truck

Garbage Compactor Truck FOTON
18㎥ Compactor Waste Truck
Garbage Compactor Truck FOTON

Function:
Garbage compactor truck (also called waste compactor truck, garbage compactor vehicle, trash compactor, refuse collection truck, compactor garbage truck, rubbish truck, bin wagon, dustcart ,bin lorry , waste collection vehicleis designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermetical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items , to load and transport more garbage by one time. Dirty liquid flows in waste sink, perfectly preventing re-pollution. When arriving at destination , the garbage can be dumped completely. It is ideal solution for solid waste collection.

The compression garbage truck controlled by the integration of the machinery, electricity and hydraulic , with manual control system. Crush the garbage through filling, pushing and spading, finally make the waste compaction in the dustbin.


Features:
---- FOTON chassis, perfect performance
---- Chinese top Weichai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:

Garbage Compactor Truck FOTON (18 ㎥)
GeneralVehicle BrandSPV
Chassis BrandFOTON
Overall Dimension10100 X 2500 X 3450 mm
GVW / Kerb Weight25,000 kg / 14,505 kg
CabCab Capacity3 persons allowed
Air ConditionerAir conditioner equipped
EngineFuel TypeDiesel
Engine BrandChiense top Weichai engine
Power320 Hp (235 KW)
Displacement9726 ml
Emission StandardEuro II
ChassisDrive Type6X4, left hand drive or right hand drive
TransmissionManual, 9 speed forward, 1 reverse
No. of axle3
Tyre Specification295/80R22.5
Tyre Number10 tyres and 1 spare tyre
Max Speed80 km/h
PaintMetallic paint
Superstructure and the main characteristic
Garbage box Capacity18 CBM
Garbage box MaterialCarbon steel
1: Can choose 240L(single bin、double bins)or 360L、660L、1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.
3: With working device of emergency braking stop button.
4: Garbage body use frame design, elegant, strong structure, large effective capacity.
5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
7: All other standard accessories: Tool kit, English manual…

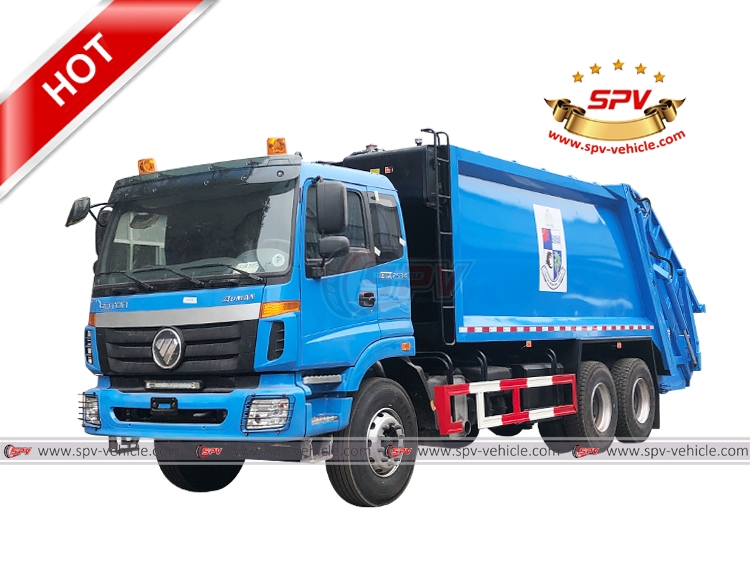

18 CBM Garbage Compactor Truck FOTON - F
Front View of Garbage Compactor Truck FOTON (18 CBM)

18 CBM Garbage Compactor Truck FOTON - LF
Left front View of Garbage Compactor Truck FOTON (18 CBM)

18 CBM Garbage Compactor Truck FOTON - LS
Left side View of Garbage Compactor Truck FOTON (18 CBM)

18 CBM Garbage Compactor Truck FOTON - RF
Right front View of Garbage Compactor Truck FOTON (18 CBM)

18 CBM Garbage Compactor Truck FOTON - RB
Right back View of Garbage Compactor Truck FOTON (18 CBM)
Similar Key Words:  Garbage compactor, trash compactor, waste compactor, refuse compactor, compactor truck...
