FOTON 5 CBM dustbin and 2 CBM water tank

Street Sweeper FOTON
5 CBM dustbin and 2 CBM water tank


Function:
Street sweeper (also called road sweeping vehicle, road sweeper truck, sweeper truck, street-cleaner, road clean vacuum sweeper truck etc.)  is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
Features:
---- FOTON chassis, perfect performance.
---- Cummins diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Specification:
Similar Key Words: street cleaning vehicle for sale, street sweepers manufacturer, sweeper trucks price, road sweepers, street cleaner vehicles
Street Sweeper FOTON ( 5 CBM dustbin & 2 CBM water tank )
GeneralVehicle BrandSPV
Chassis BrandFOTON
Overall Dimension6860 * 2200 * 2580 mm
GVW / Kerb Weight8,280kg / 5,770kg
CabCab Capacity2 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandCummins
Power154 Ps (115 KW)
Displacement3760 ml
Emission StandardEuro III , Euro IV
ChassisDrive Type4X2, left hand drive & right hand drive
Transmission5 gear box, no overhaul within 500,000km
Wheelbase/No. of axle3800 mm / 2
Tyre Specification7.50R16 / 8.25R16
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureDustbin Capacity5 CBM
Dustbin MaterialStainless Steel
Water Tank Capacity2,000 Litres (About 500 gallons)
Water Tank MaterialStainless Steel
Sweeping Capacity42,000 m³/h
Sweeping Speed3-15 km/h
Max Sweeping Width2800mm
Brooms2 sets at each side, at diameter 900 mm
Auxiliary EngineJMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

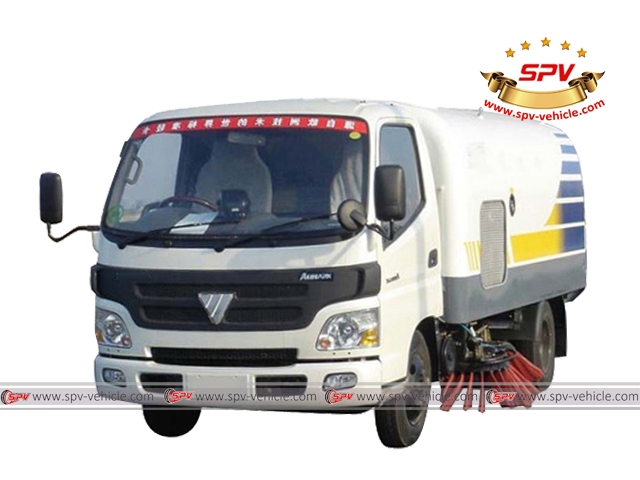

Photo 1: Front view of FOTON Road Sweepers (5 cbm dustbin + 2 cbm water tank)


Photo 2: Side view of FOTON Road Sweepers (5 cbm dustbin + 2 cbm water tank)


Photo 3: Rear view of FOTON Road Sweepers (5 cbm dustbin + 2 cbm water tank)
