Foton Forland 4,000 Litres Water Spray Truck

Water Tank Truck Forland

4,000 Litres Water Spray Truck

•

Function:

Water tank truck (also called water spray truck, water transport truck, water lorry, water sprinkler, watering truck, irrigation sprinkler, Camión cisterna) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.

With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.

Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:

---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life

Specification:

Similar Key Words:  Forland, water spray truck, water transport truck, water camion, water bowser, water tank truck, water truck, water lorry

Water Tank Truck Forland (4,000 litres)
General	Vehicle Brand	SPV
	Chassis Brand	Foton, Forland
	Overall Dimension	5650 * 1900 * 2250 mm
	GVW / Kerb Weight	7,000 kg / 2,840 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	Chinese top engine, Wuxi Diesel Engine
	Power	95 Hp (70 KW)
	Displacement	2540 ml
	Emission Standard	Euro II
Chassis	Drive Type	4X2, left hand drive
	Transmission	5-speed front, 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	6.50-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	4,000 Litres ( About 1,000 gallons)
	Tank Material	Carbon steel
	Flow Speed	500 litres / min
	Delivery Head	40 m
	Suction Head	6 m
	Hose	High quality PVC hose, anti-aging
	All other standard accessories: manhole, ladder, inlet, discharge…….
Optional	** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

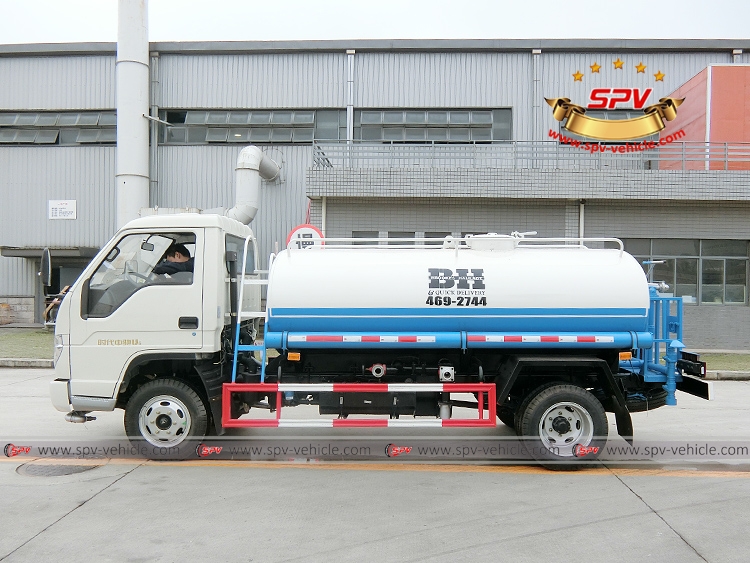

Photo 1: Side view of Forland water sprinkler truck (4,000 litres), wheelbase: 3360 mm.

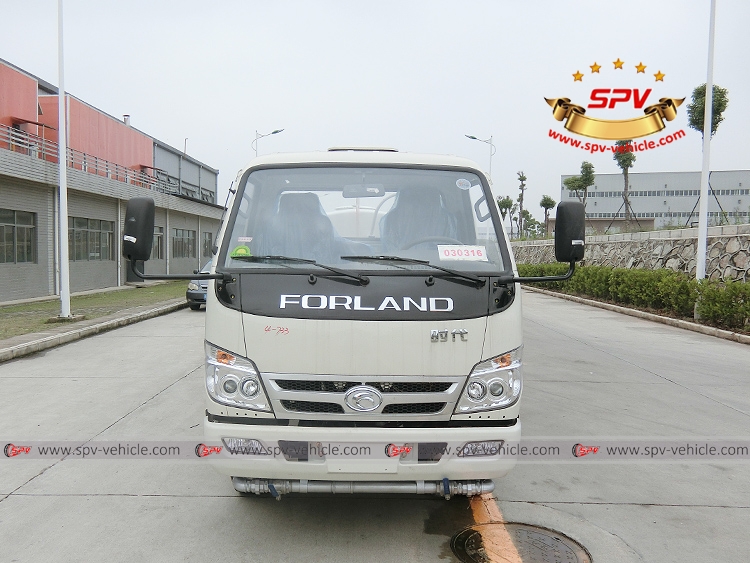

Photo 2: Front view of Forland water sprinkler truck. Detail of front water sprayer.

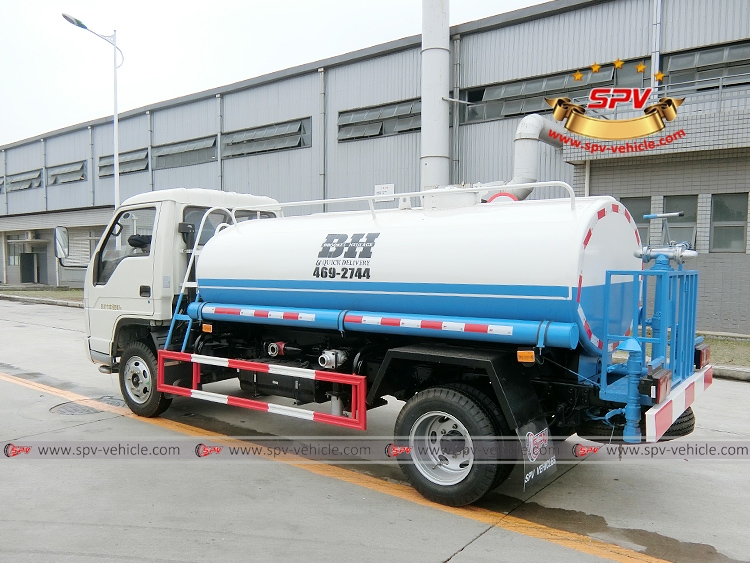

Photo 3: Left back view of Forland water sprinkler truck.

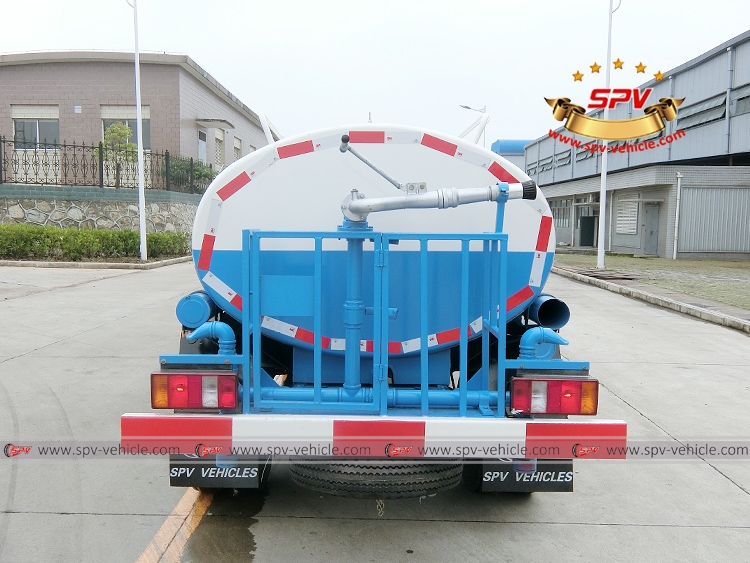

Photo 4: Back view of Forland water sprinkler truck. Detail of rear water sprinlers and water connon.

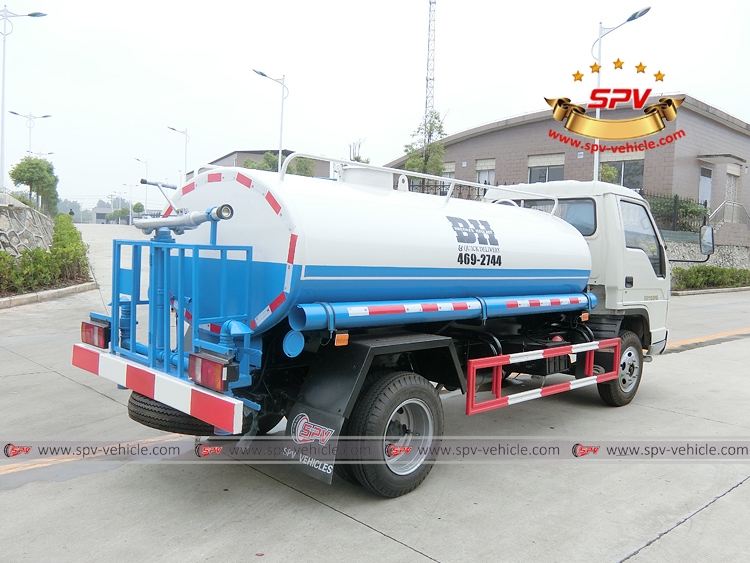

Photo 5: Right back view of Forland water sprinkler truck.


Photo 6: Left back view of Forland water sprinkler truck.
