ISUZU 10,000 Litres Water Delivery Truck

Water Spraying Truck ISUZU

10,000 Litres Water Delivery Truck

•

Function:

Water spraying truck (also called water delivery truck, water bowser, water sray truck, water transport truck, water hauling truck, clean water truck, truck tanker for drinkable water tanker, water tanker for truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.

With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.

Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life

Specification:

Similar Keywords:  ISUZU water delivery truck, IVECO water transport truck, water bowser, water lorry, water truck sprinkler, water spray truck, mobile water truck, water truck with pumping system, potable water tanker

Water Spraying Truck ISUZU (10,000 litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	8900 * 2500 * 3200 mm
	GVW / Kerb Weight	16,000kg / 6,800 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 4HK1-TCG40
	Power	190 Hp (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU MLD gear box, 6-speed forward, 1 reverse
	Wheelbase/No. of axle	4700 mm / 2
	Tyre Specification	10.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	110 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	10,000 Litres ( About 2,600 gallons)
	Tank Material	Carbon steel
	Flow Speed	1000 litres / min
	Delivery Head	90 m
	Suction Head	6 m
	Hose	High quality PVC hose, anti-aging
	All other standard accessories: manhole, ladder, inlet, discharge…….
Optional	** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

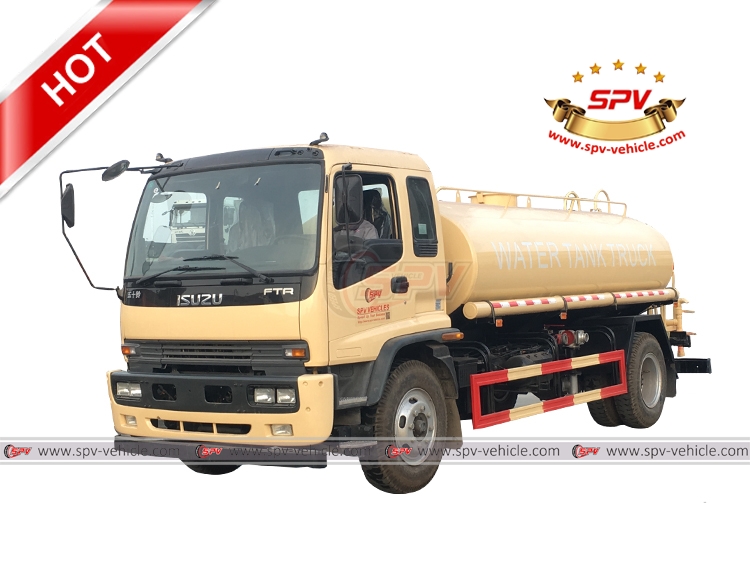

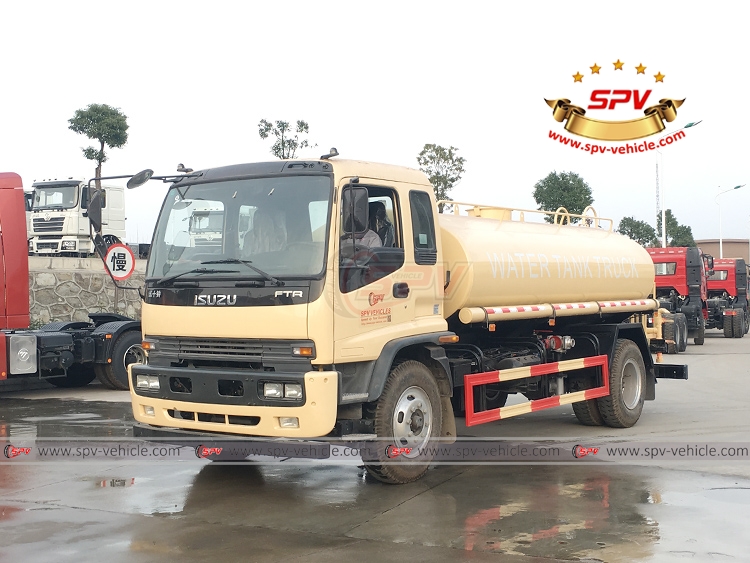

Photo 1: Front View of ISUZU Water Spraying Truck (10,000  Litres)

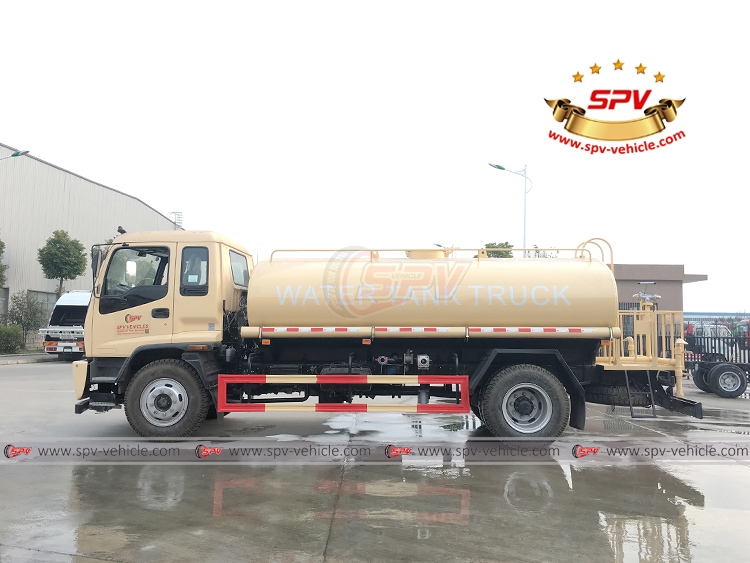

Photo 2: Left side view of Water Spraying Truck ISUZU(10,000 litres)

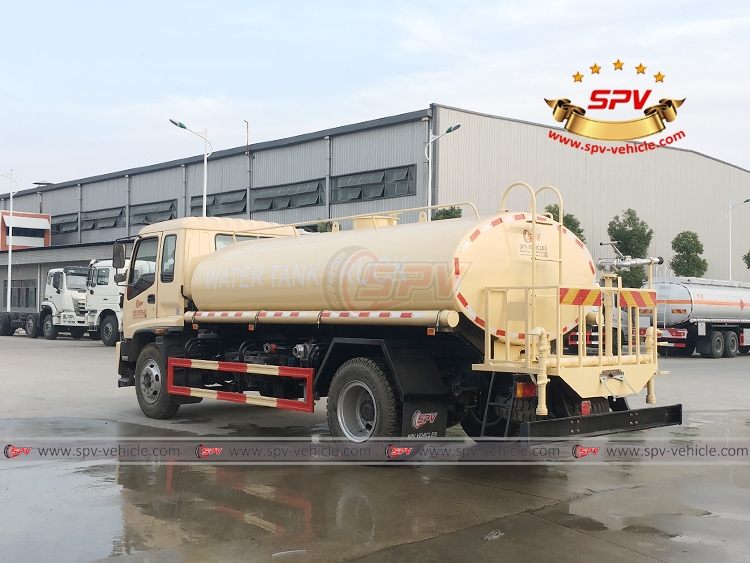

Photo 3: Left back view of Water Spraying Truck ISUZU(10,000 litres)

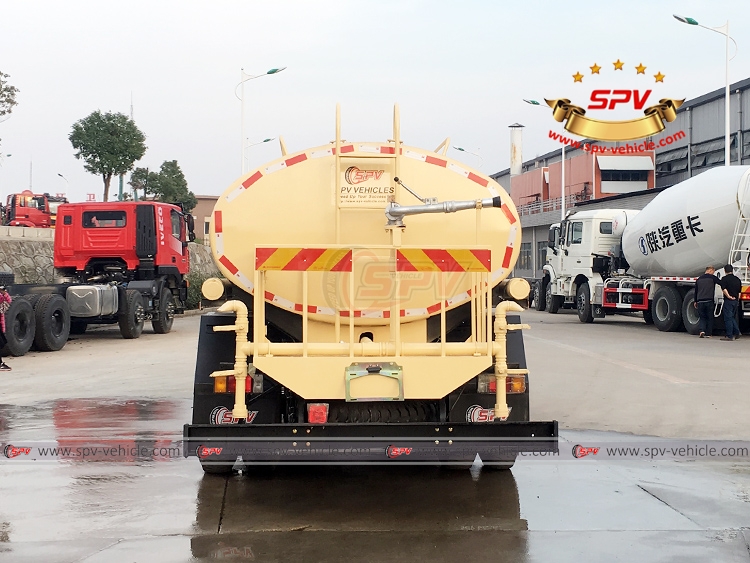

Photo 4: Back view of Water Spraying Truck ISUZU(10,000 litres)

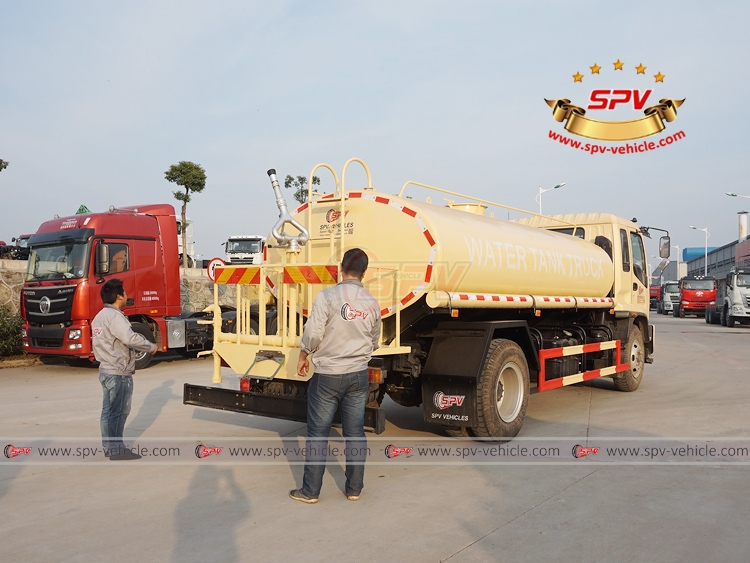

Photo 6: Testing of Water Spraying Truck ISUZU(10,000 litres)

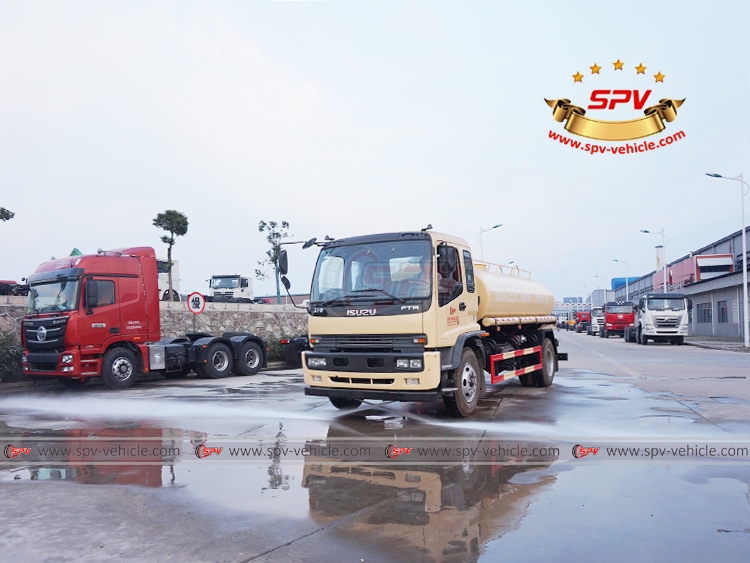

Photo 7: Water Spraying Truck ISUZU(10,000 litres) - Front flushing

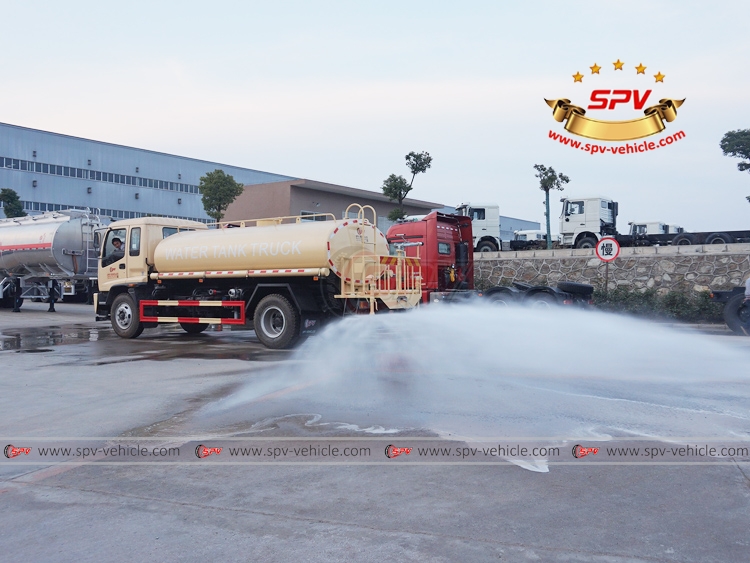

Photo 8: Water Spraying Truck ISUZU(10,000 litres) - Rear Spraying

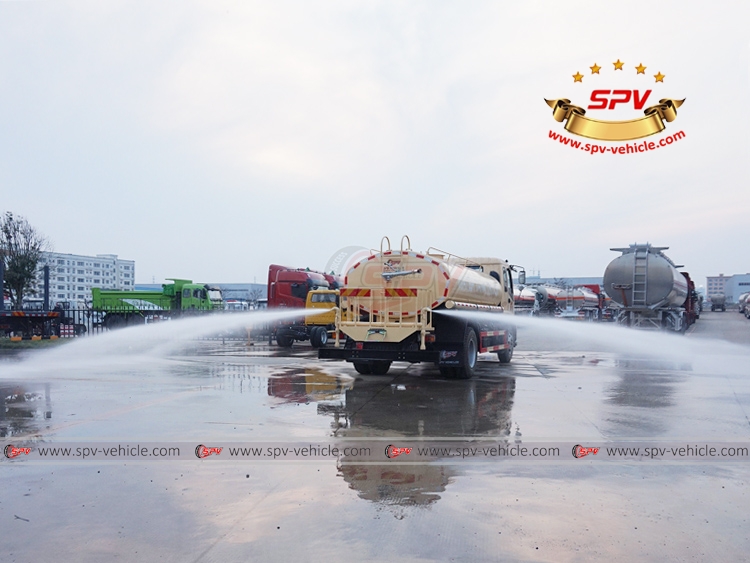

Photo 9: Water Spraying Truck ISUZU(10,000 litres) - Side Spraying

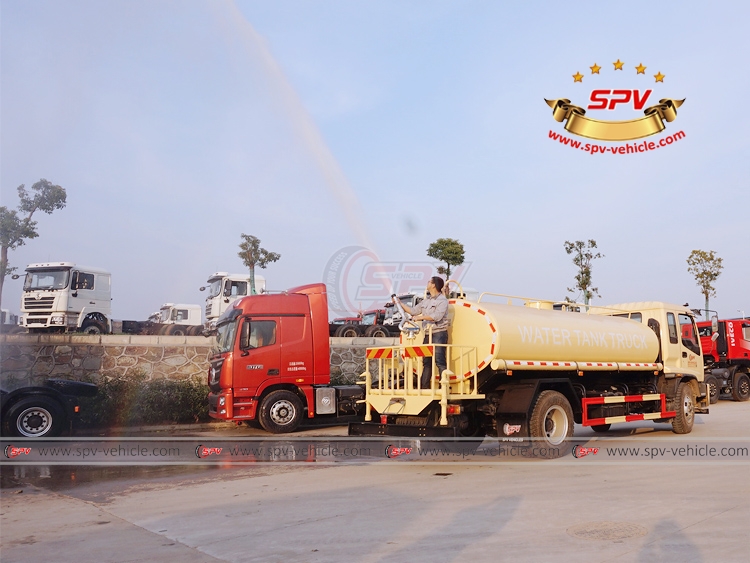

Photo 10: Water Spraying Truck ISUZU(10,000 litres) - Water Cannon Shooting

***  To Morocco in Mar, 2018 - Water Spray Truck(10,000 litres) and Road Sweeper Truck ISUZU  ***

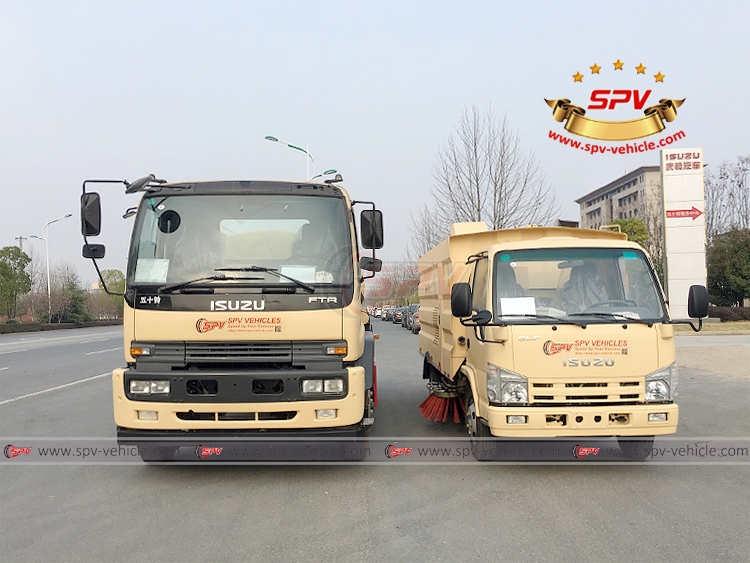

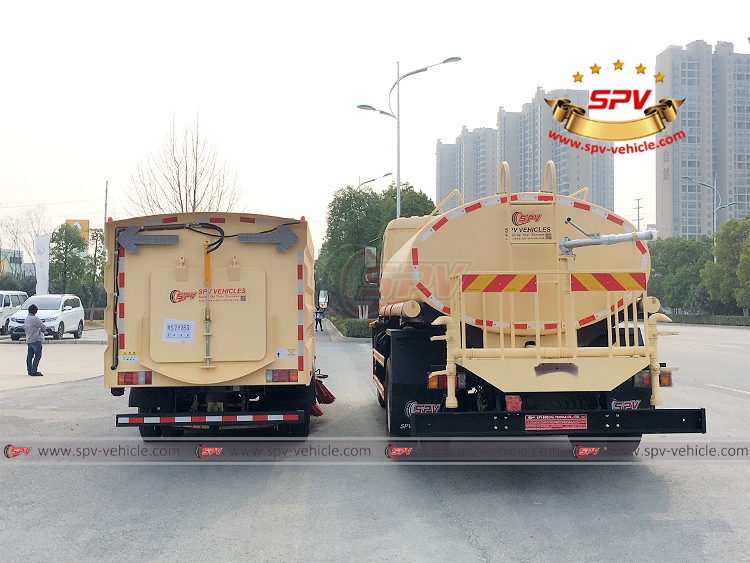

Photo 11: To Morocco in Mar, 2018 - Water Spray Truck(10,000 litres) and Road Sweeper Truck ISUZU

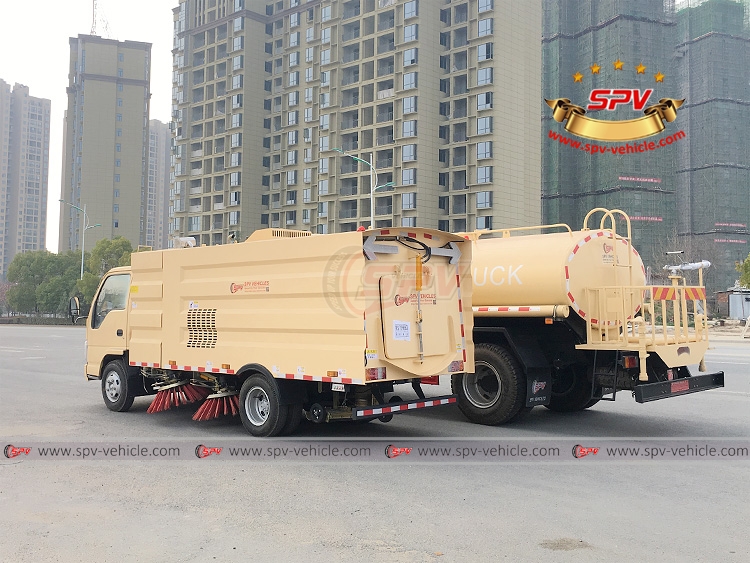

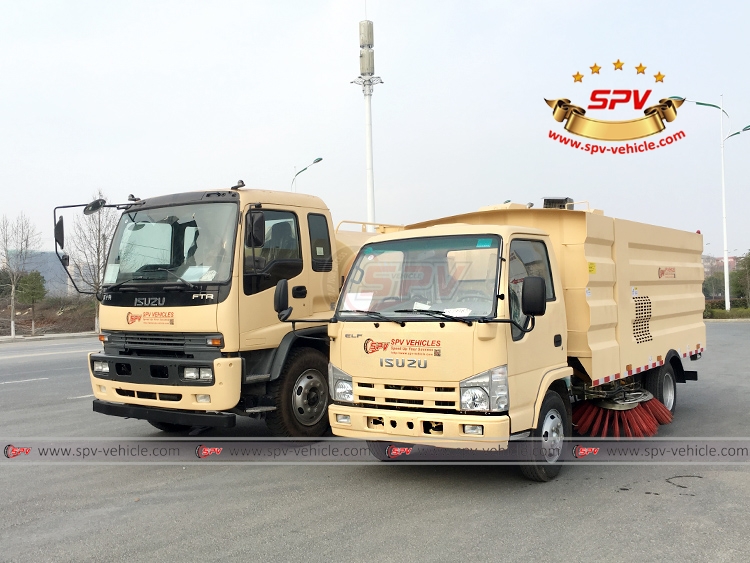

Photo 11: To Morocco - Water Spray Truck(10,000 litres) and Road Sweeper Truck ISUZU


Photo 12: To Morocco - Water Spray Truck(10,000 litres) and Road Sweeper Truck ISUZU

Photo 13: To Morocco - Water Spray Truck(10,000 litres) and Road Sweeper Truck ISUZU
