ISUZU 12 m³ Solid Waste Collection Truck

Garbage Compactor Truck ISUZU
12 m³ Solid Waste Collection Truck
Garbage Compactor Truck ISUZU

Function:
Garbage compactor truck(also called solid waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:
Similar Key Words:  ISUZU solid waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry, garbage compactor vehicles, garbage compacting truck, refuse collector,,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle

Garbage Compactor Truck ISUZU ( 12 m³)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension8920 * 2500 * 3280 mm
GVW / Kerb Weight16,000 kg / 10,100 kg
CabCab Capacity3 persons allowed with 1 sleeper
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU engine, 4HK1-TCG40
Power190 Hp (139 KW)
Displacement5193 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, 6 speed forward, 1 reverse
Wheelbase/No. of axle4500 mm / 2
Tyre Specification10.00-20
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureWaste Box Capacity12  m³
Waste Box MaterialCarbon steel
All other standard accessories: Tool kit, English manual……
Optional **Various rear loading mechanism: container lifting; hopper flip; skip loader…
 **Electronic operating system

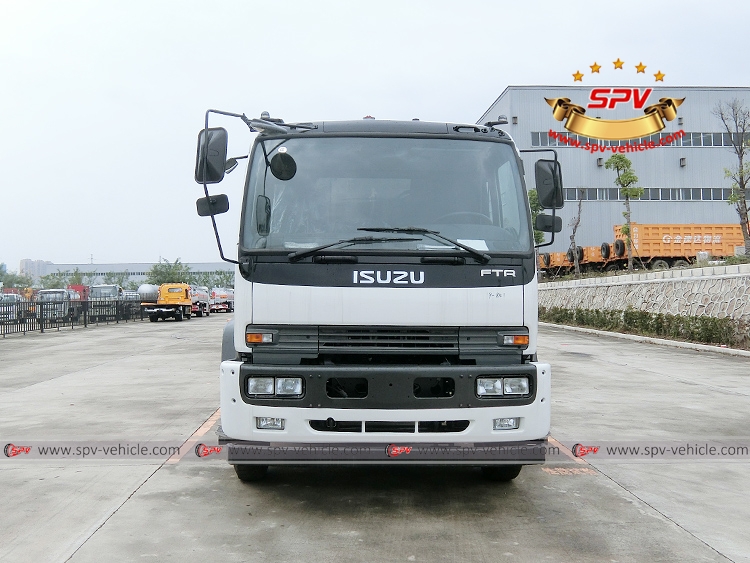

Garbage Compactor Truck ISUZU -F
Photo 1: Front view of ISUZU Garbage Compactor Truck

Garbage Compactor Truck ISUZU - LS
Photo 2: Left front view of ISUZU Garbage Compactor Truck

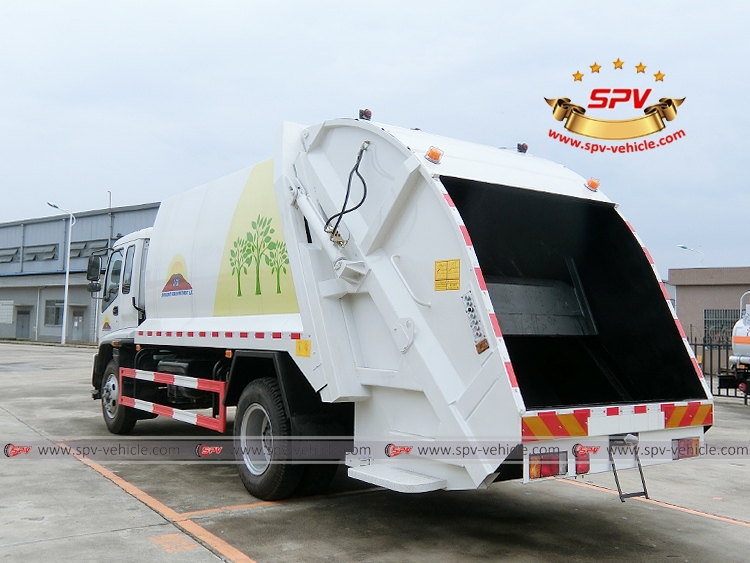

Garbage Compactor Truck ISUZU - LB
Photo 3: Left back view of ISUZU Garbage Compactor Truck

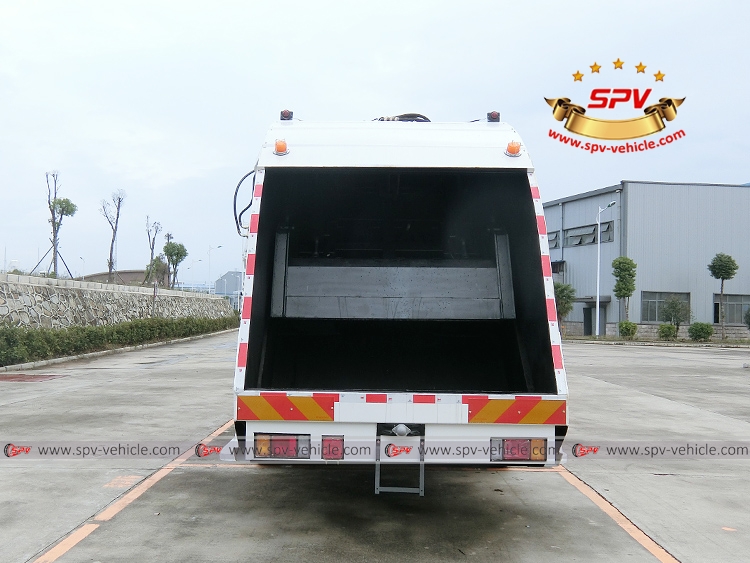

Garbage Compactor Truck ISUZU -B
Photo 4: Back view of ISUZU Garbage Compactor Truck

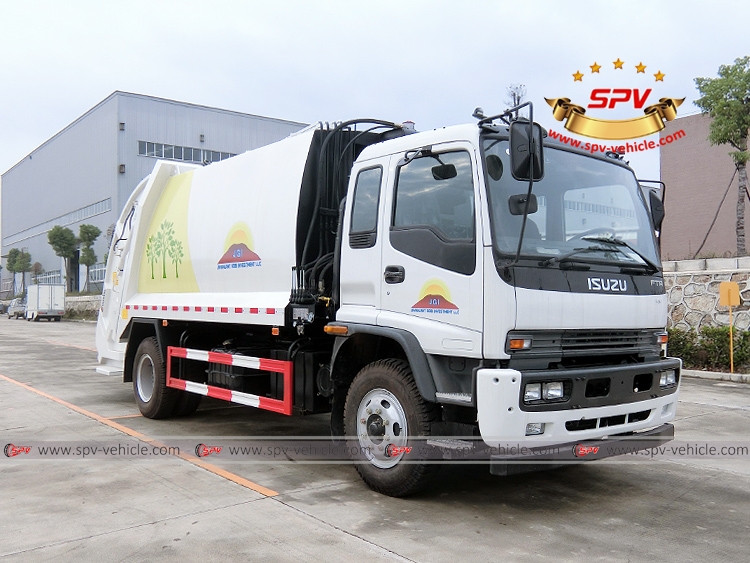

Garbage Compactor Truck ISUZU -RF
Photo 5: Right front view of ISUZU Garbage Compactor Truck

Garbage Compactor Truck ISUZU -RS
Photo 6: Right Side view of ISUZU Garbage Compactor Truck

Garbage Compactor Truck ISUZU -RB
Photo 7: Right back view of ISUZU Garbage Compactor Truck

***  To Mongolia - Garbage Compactor Truck ISUZU FTR (12 CBM)  - Without Lifting Devices ***

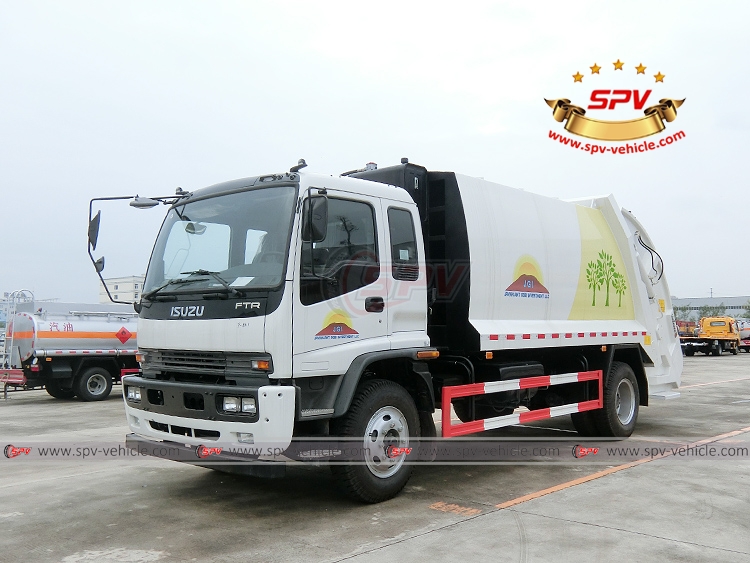

Garbage Compactor Truck ISUZU -LF
Photo 8:  To Mogolia - Garbage Compactor Truck ISUZU FTR (12 CBM)

***  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM)  - With Lifting Devices***

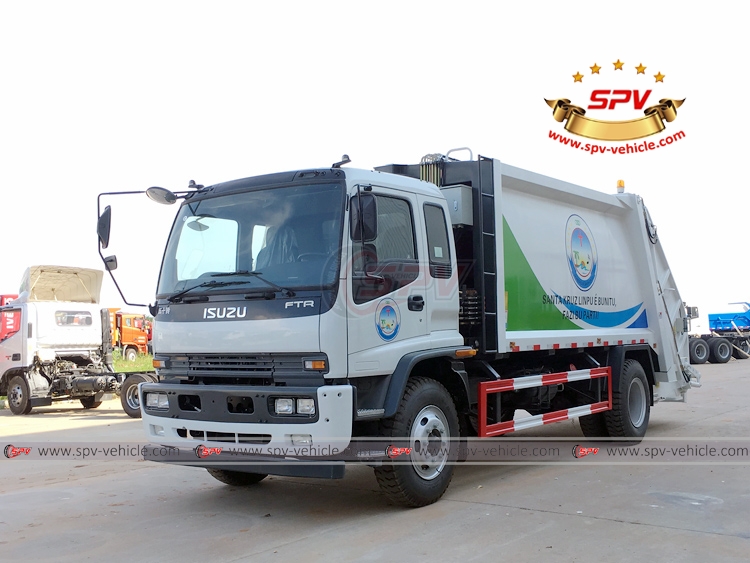

12 CBM Garbage Compactor Truck ISUZU - LF
Photo 9:  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM) - LF

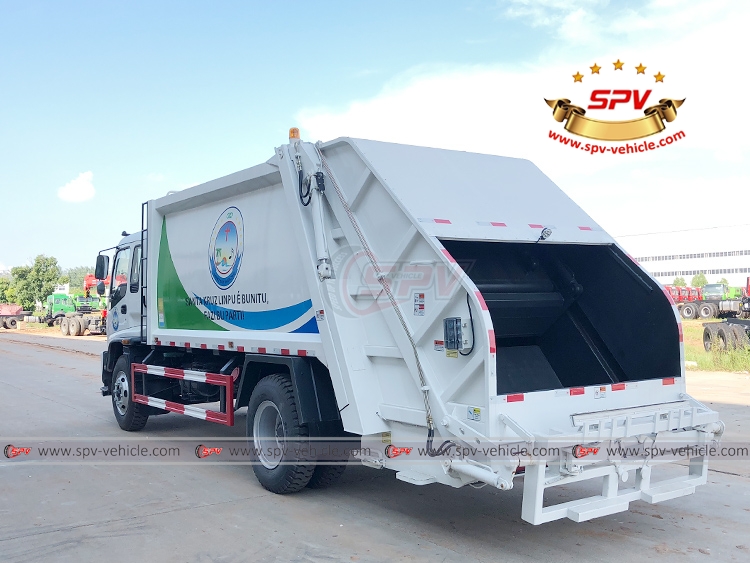

12 CBM Garbage Compactor Truck ISUZU - LB
Photo 10:  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM) - LB

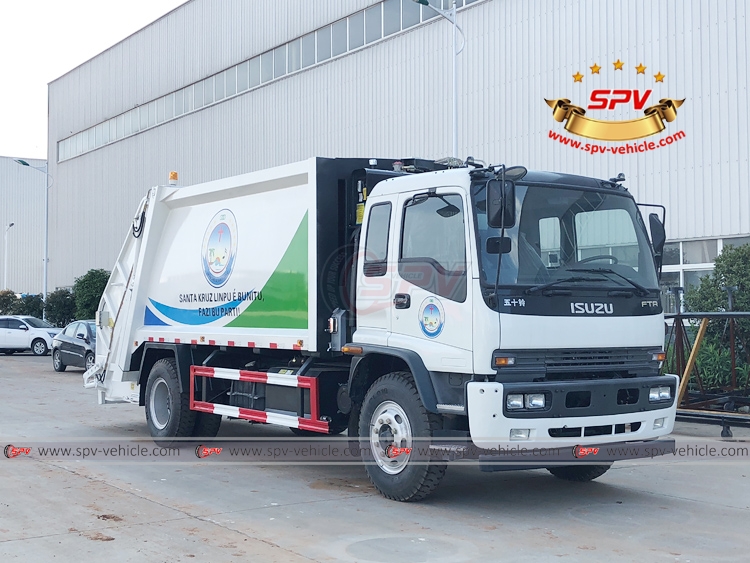

12 CBM Garbage Compactor Truck ISUZU - RF
Photo 11:  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM) - RF

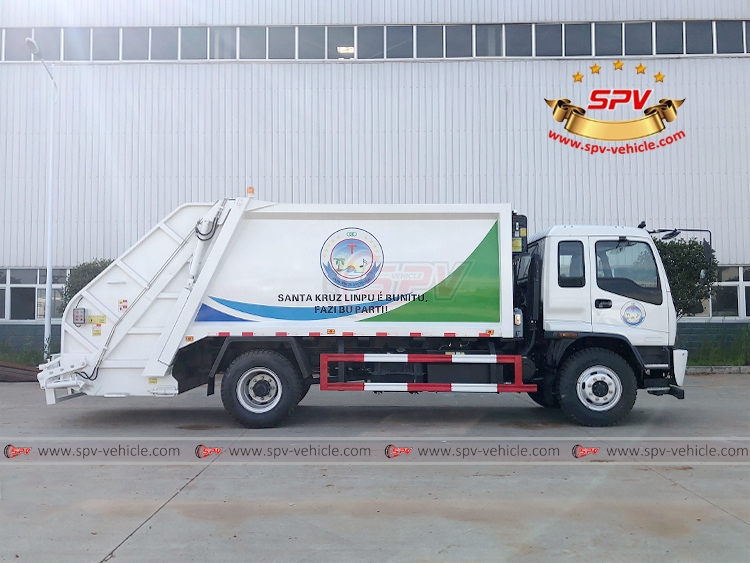

12 CBM Garbage Compactor Truck ISUZU - RS
Photo 12:  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM) - RS

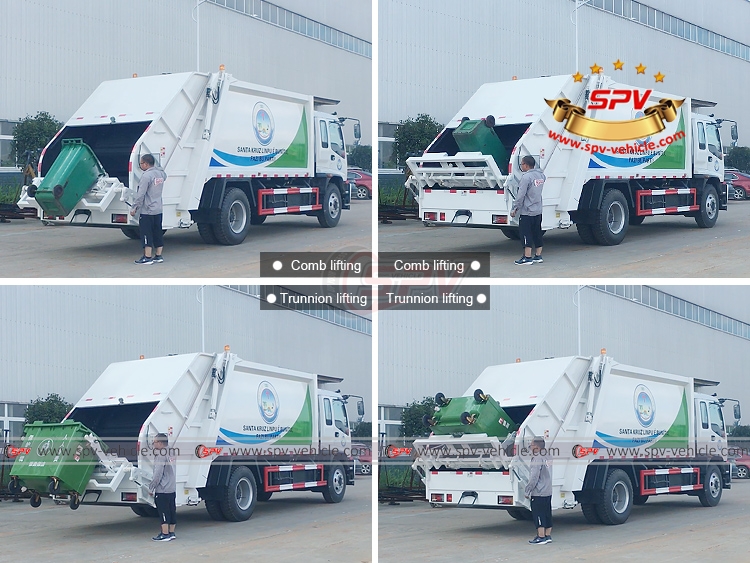

12 CBM Garbage Compactor Truck ISUZU - Lifting Demostration
Photo 13:  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM) - Lifting Device Demonstration

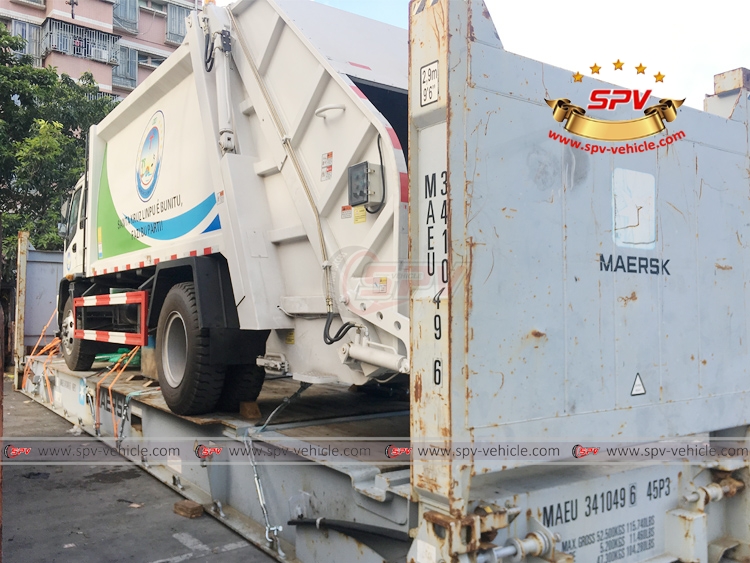

12 CBM Garbage Compactor Truck ISUZU - Loading
Photo 14:  To Cape Verde - Garbage Compactor Truck ISUZU FTR (12 CBM) - Loading onto Flat Rack
