ISUZU 12 m³ Water & 3m³ Foam & 2m³ Dry Powder

Fire Engine ISUZU

12 m³ Water & 3m³ Foam & 2m³ Dry Powder

•
•
•
•
•

Function:

Water-dry powder combined fire truck (also called foam fire tanker, fire engine, fire apparatus, water foam truck, foam fire truck, foam fire tank truck, fire hydrant and fire water tanker, fire service truck) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- This fire truck carries 12,000 litres water tank, 3,000 litres foam tank and 2,000 litres dry-powder tank

Specification:

Water-dry Powder Combined Fire Truck ISUZU
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	12600 * 2670 * 3890 mm
	GVW / Kerb Weight	42,000 kg / 17,820 kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 6WG1-TCG51
	Power	460 Ps (338 KW)
	Displacement	15681 ml
	Emission Standard	Euro V
Chassis	Drive Type	8X4, left hand drive
	Transmission	12-speed forward, 2 reverse
	Wheelbase/No. of axle	1850+4575+1370 mm / 4
	Tyre Specification	315/80R22.5
	Tyre Number	12 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Water Tank Capacity	12,000 Litres ( About 3,200 gallons)
	Foam Tank Capacity	3,000 litres( About 800 gallons)
	Dry Powder Tank Capacity	2,000 Litres (About 500 gallons)
	Tank Material	water tank: Carbon steel foam tank: stainless steel dry powder tank: carbon steel
	Nitrogen Gas Bottle	70 Litres x 6 pcs
	Fire Pump	Flow speed	100 L/s
		Pressure	1.0M Pa
	Fire Cannon	Flow speed	48 L/s
		Shot	Water	≥ 60 m
			foam	≥ 55 m
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional	Ladders, floodlights…

Similar Key Words: foam fire tanker, fire engine, fire apparatus, water foam truck, foam fire truck, foam fire tank truck, fire hydrant and fire water tanker, fire service truck, fire fighting apparatus

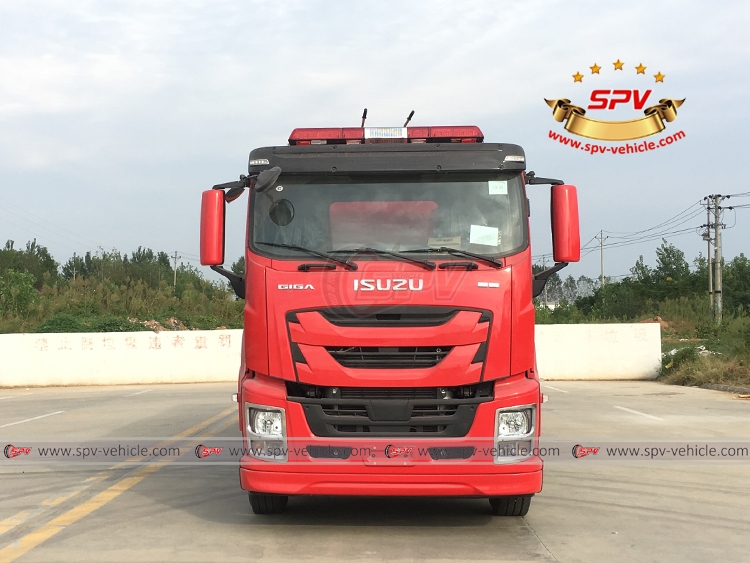

Photo 1: Front view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)

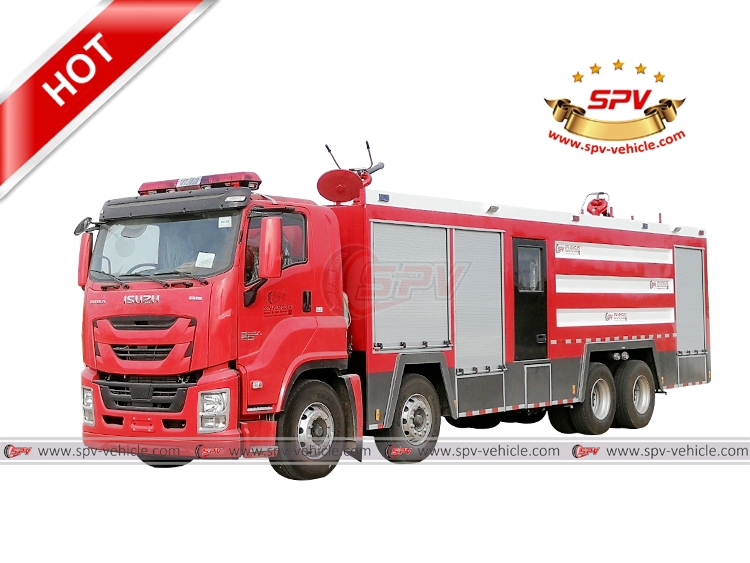

Photo 2: Right front view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)

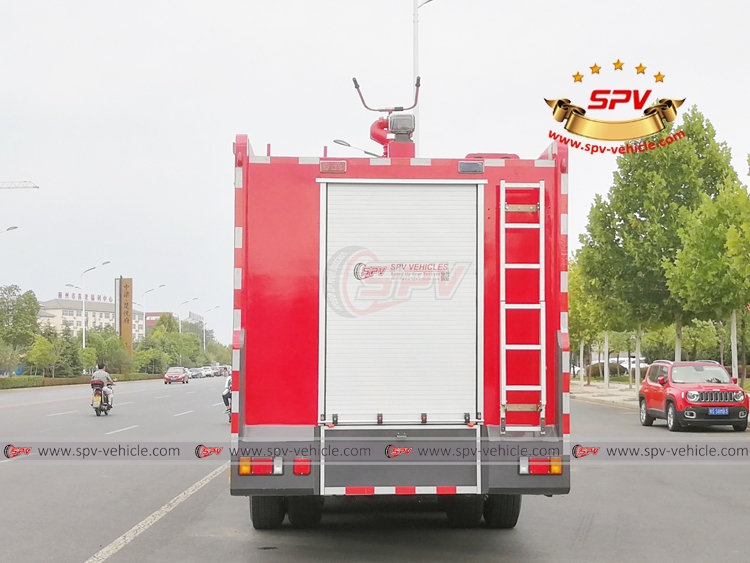

Photo 3: Back view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)

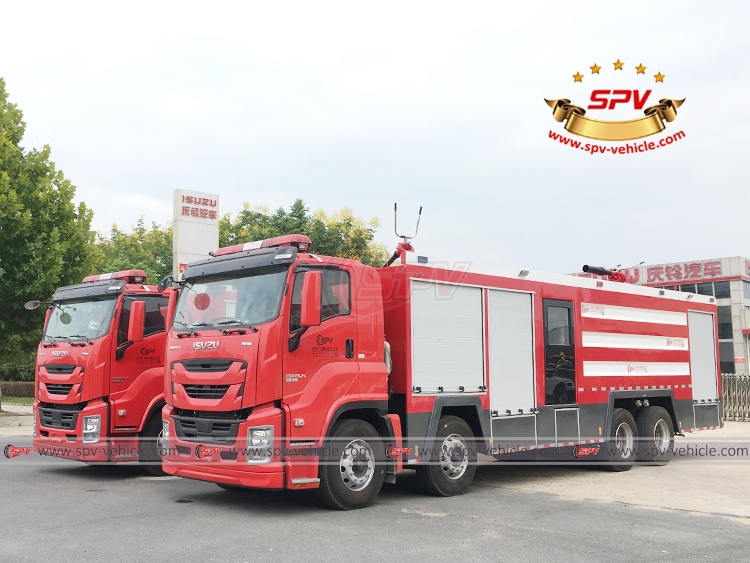

Photo 4: To Morocco - 2 units of Fire Engine ISUZU - LF

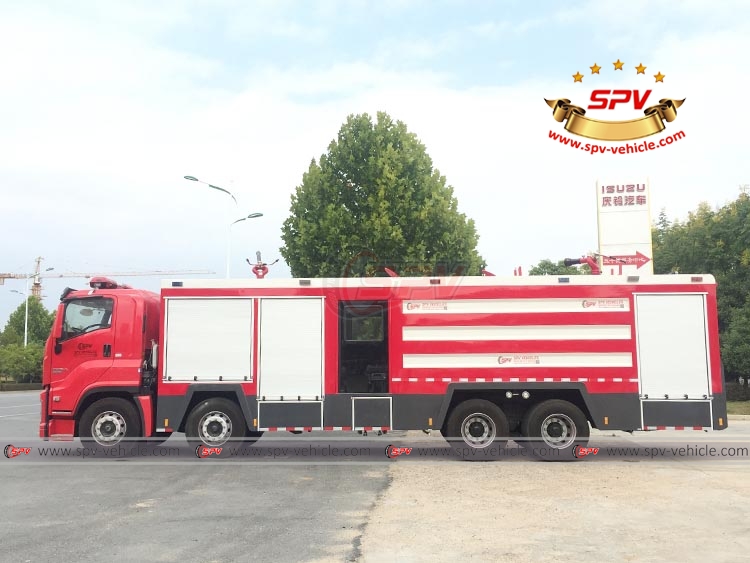

Photo 5: To Morocco - 2 units of Fire Engine ISUZU - LS

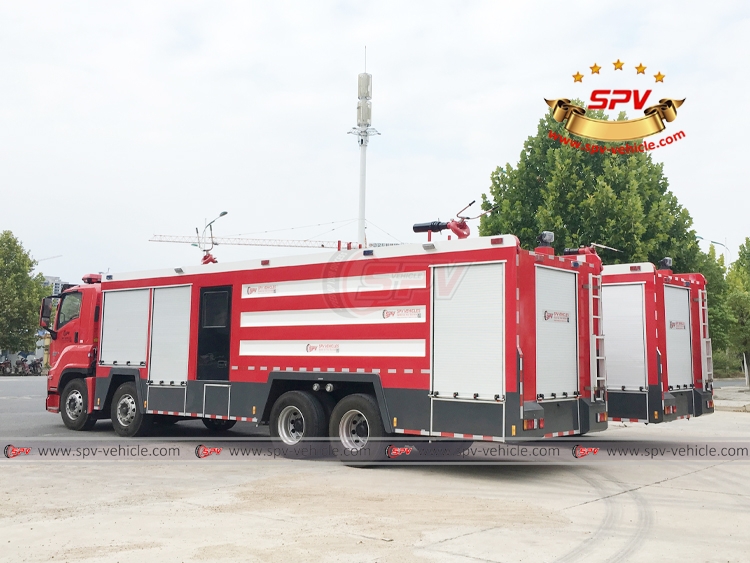

Photo 6: To Morocco - 2 units of Fire Engine ISUZU - LB

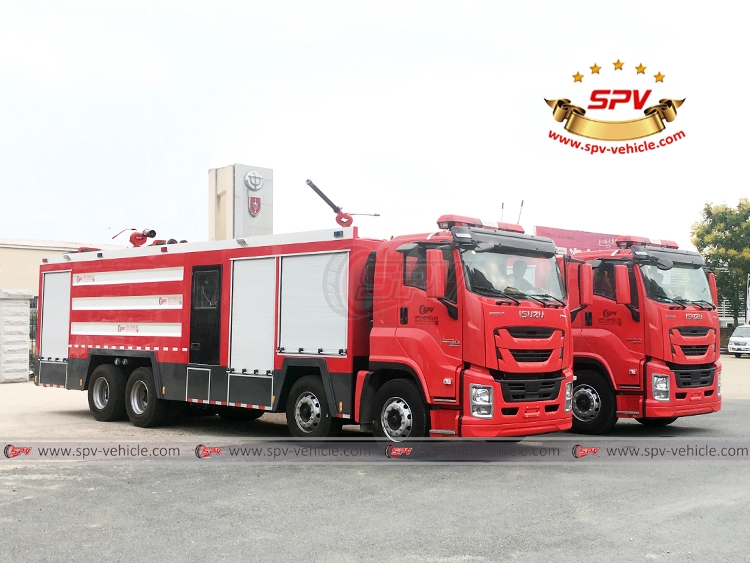

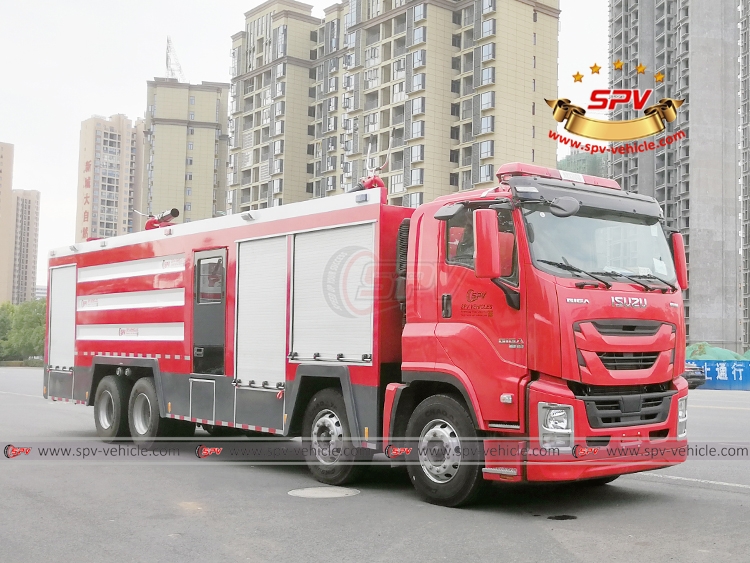

Photo 7: To Morocco - 2 units of Fire Engine ISUZU - RF

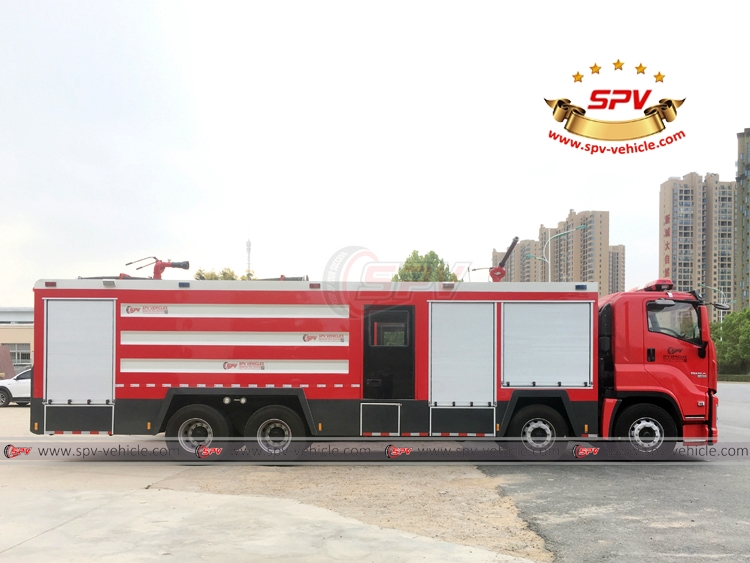

Photo 8: To Morocco - 2 units of Fire Engine ISUZU - RS

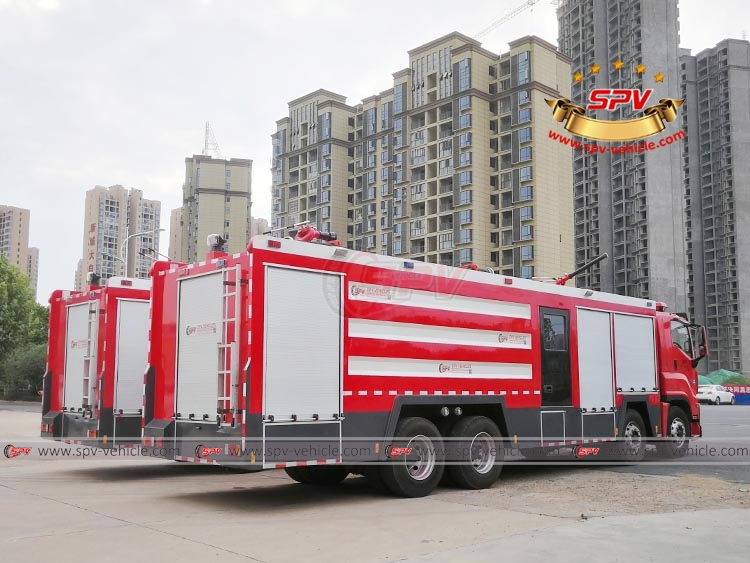

Photo 8: To Morocco - 2 units of Fire Engine ISUZU - RB

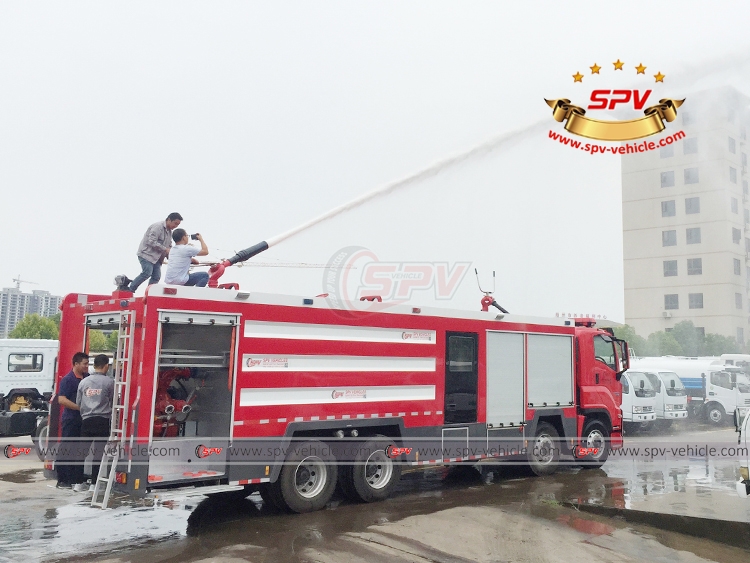

Photo 9: Fire Engine ISUZU - Water shooting function test - 1

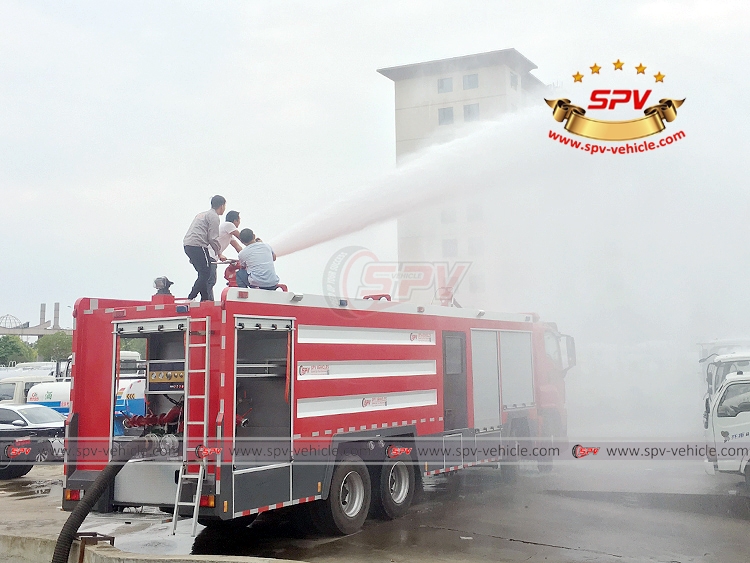

Photo 10: Fire Engine ISUZU - Water shooting function test - 2

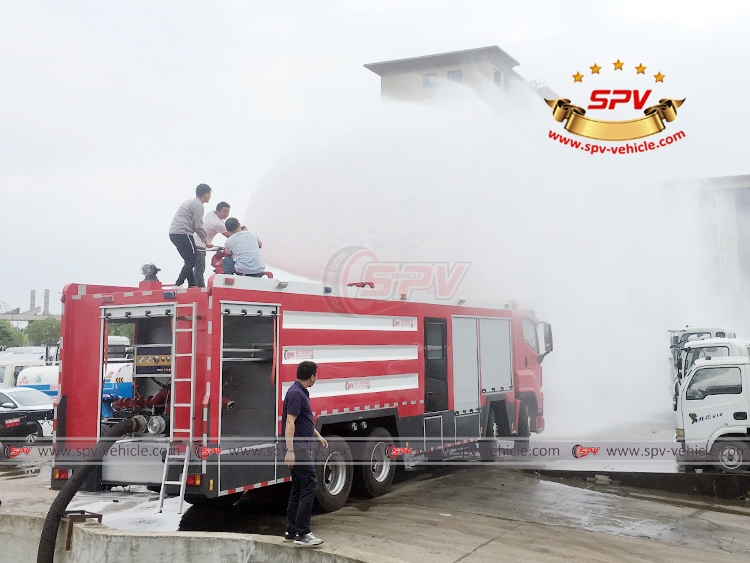

Photo 11: Fire Engine ISUZU - Water shooting function test - 3

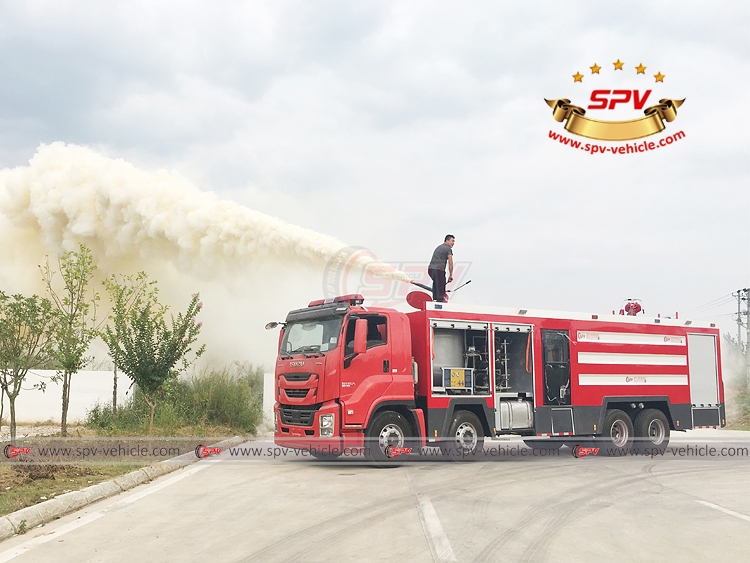

Photo 12: Fire Engine ISUZU - Dry Powder shooting test

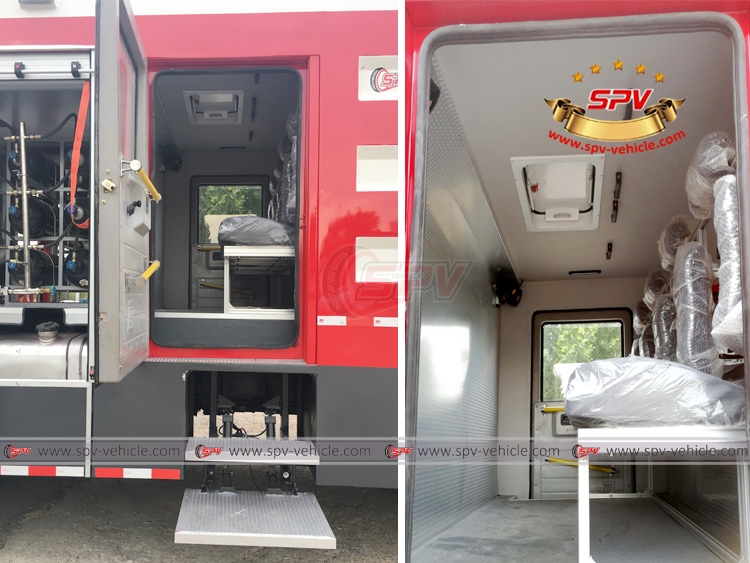

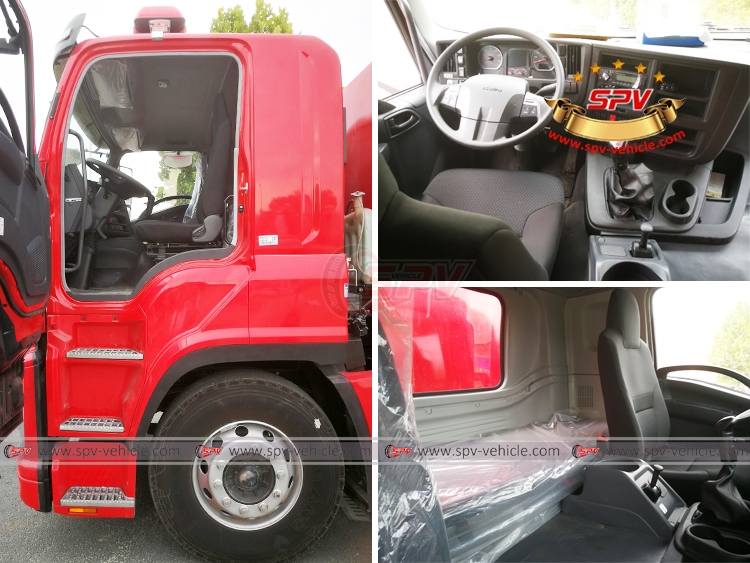

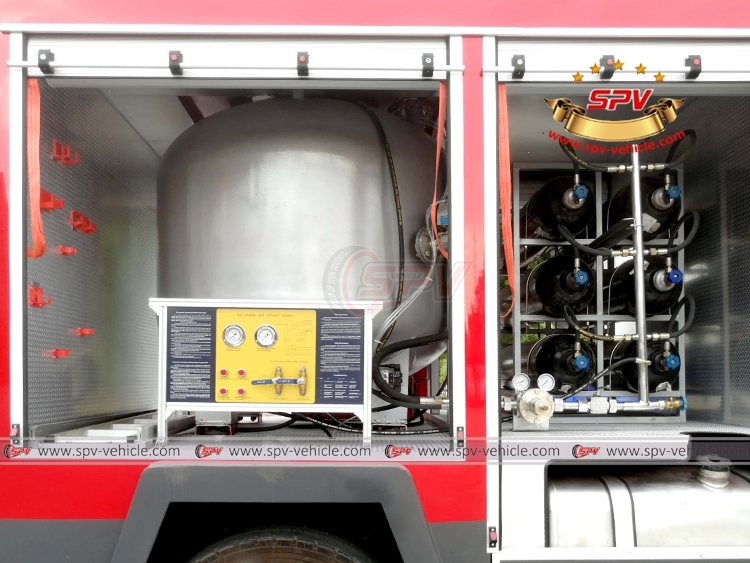

Photo 13: Dettail view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)


Photo 14: Dettail view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)


Photo 15: Dettail view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)


Photo 16: Dettail Pump view of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)

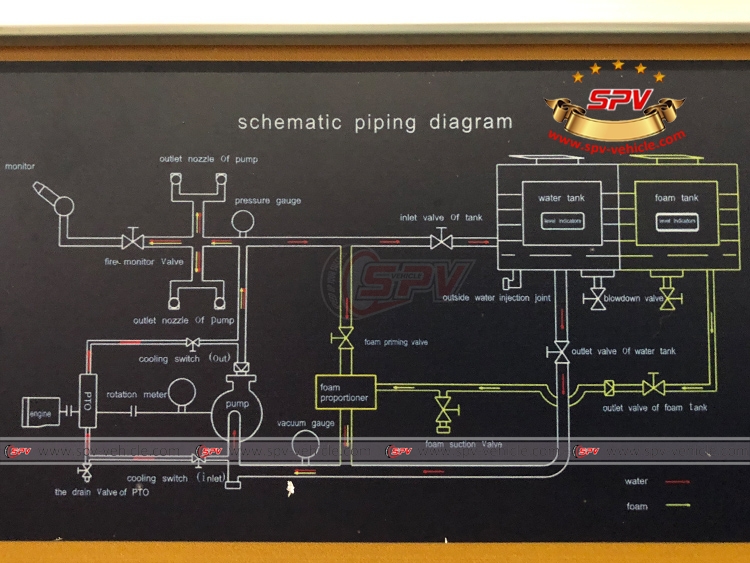

Photo 17: Pump System of Fire Engine ISUZU (12,000 litres water tank + 3,000 litres foam tank + 2,000 litres dry-powder tank)

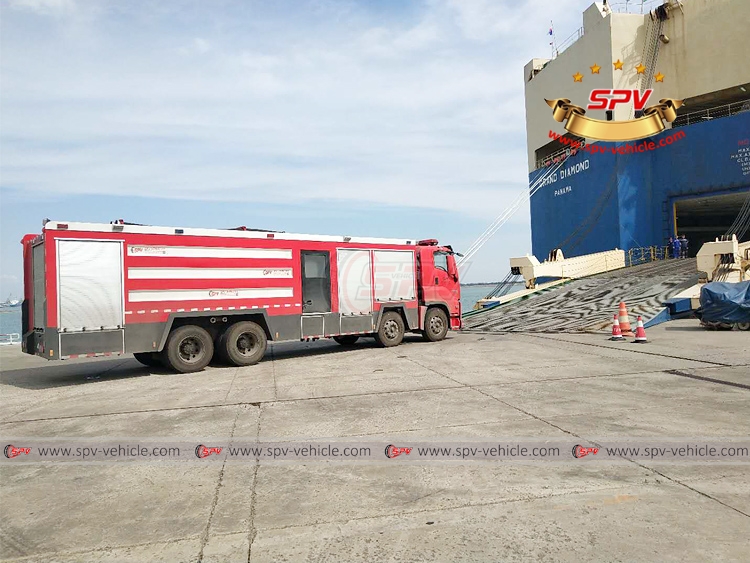

Photo 18: Fire Engine ISUZU - Loading into RORO Vessel
