ISUZU 20,000 Litres Water Sprinkling Truck

Water Tank Truck ISUZU

20,000 Litres Water Sprinkling Truck

•

Function:

Water tank truck (also called  water sprinkling truck, water spray truck, water delivery truck, water bowser, water transport truck, water hauling truck, clean water truck, truck tanker for drinkable water tanker, water tanker for truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.

With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.

Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:

---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life

Specification:

Similar Keywords:  ISUZU water sprinkling truck, IVECO water spray truck, water bowser, water lorry, water truck sprinkler, water spray truck, mobile water truck, water truck with pumping system, potable water tanker...

Water Tank Truck ISUZU (20,000 litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	9660 * 2400 * 2900 mm
	GVW / Kerb Weight	25,000 kg / 12,980 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 6HK1-TCSG40
	Power	280 Hp (206 KW)
	Displacement	7790 ml
	Emission Standard	Euro IV
Chassis	Drive Type	6X4, left hand drive
	Transmission	9 - speed forward, 1 reverse
	Wheelbase/No. of axle	4350+1300 mm / 3
	Tyre Specification	10.00-20
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	20,000 Litres ( About 5,300gallons)
	Tank Material	Carbon steel
	Flow Speed	1000 litres / min
	Delivery Head	90 m
	Suction Head	6 m
	Hose	High quality PVC hose, anti-aging
	All other standard accessories: manhole, ladder, inlet, discharge…….
Optional	** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

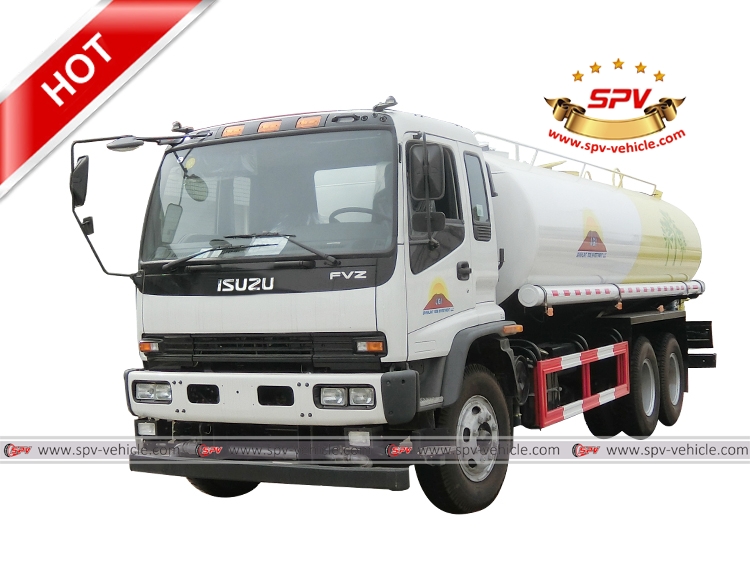

Photo 1: 5 units of ISUZU Water Tank Truck (20,000  Litres)


Photo 2: Left side view of ISUZU Water Tank Truck (20,000  Litres)


Photo 3: Right side view of ISUZU Water Tank Truck (20,000  Litres)

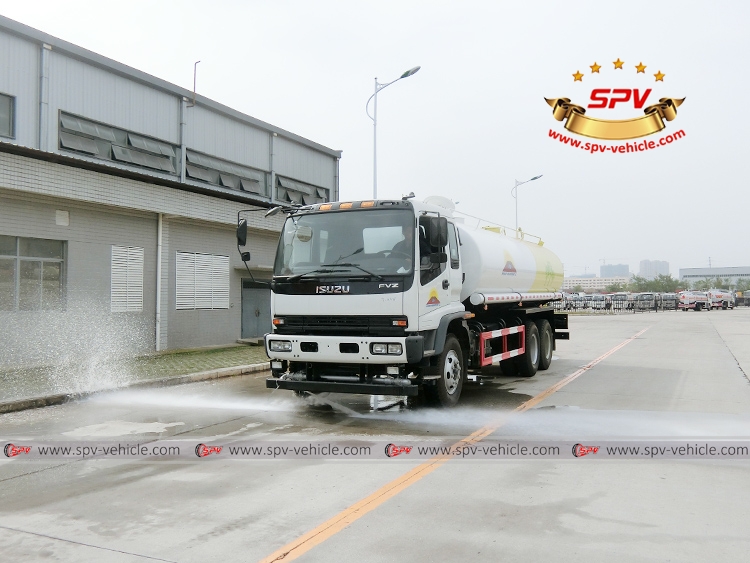

Photo 4: ISUZU Water Tank Truck (20,000  Litres) - Front Flashing System


Photo 5: ISUZU Water Tank Truck (20,000  Litres) - Front Flashing System


Photo 6: ISUZU Water Tank Truck (20,000  Litres) - Rear and Side Spraying System


Photo 7: ISUZU Water Tank Truck (20,000  Litres) - Rear and Side Spraying System


Photo 8: ISUZU Water Tank Truck (20,000  Litres) - Water Cannon
