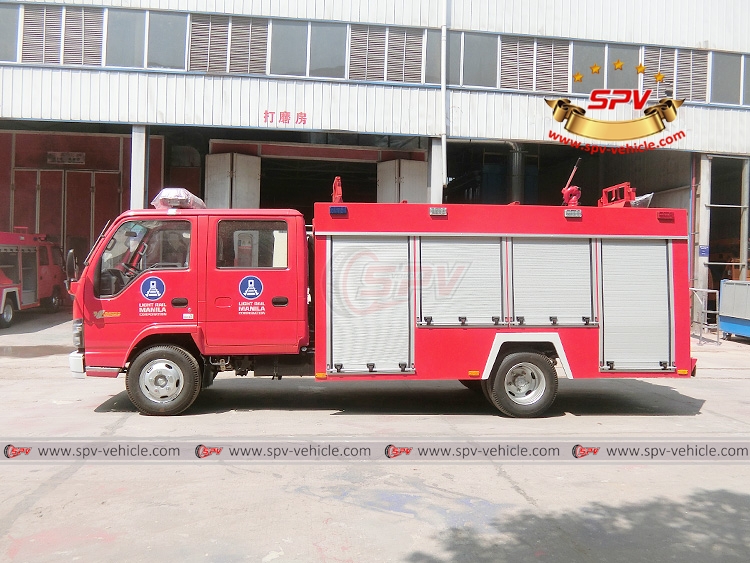

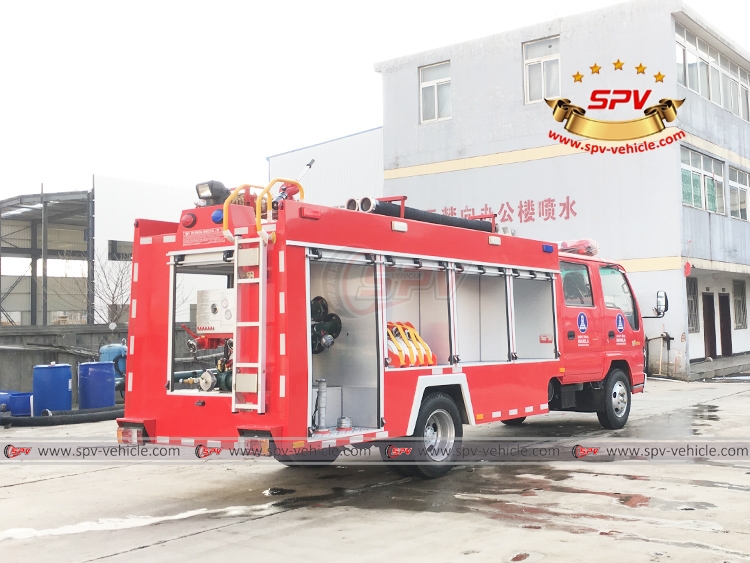

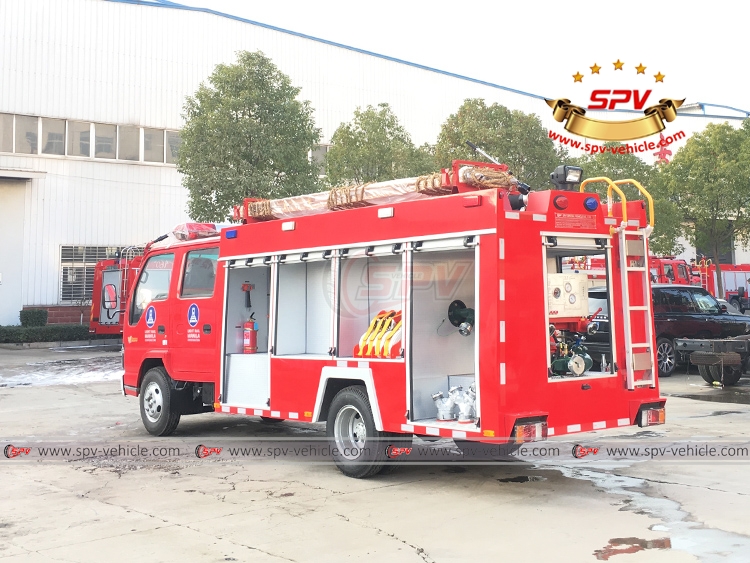

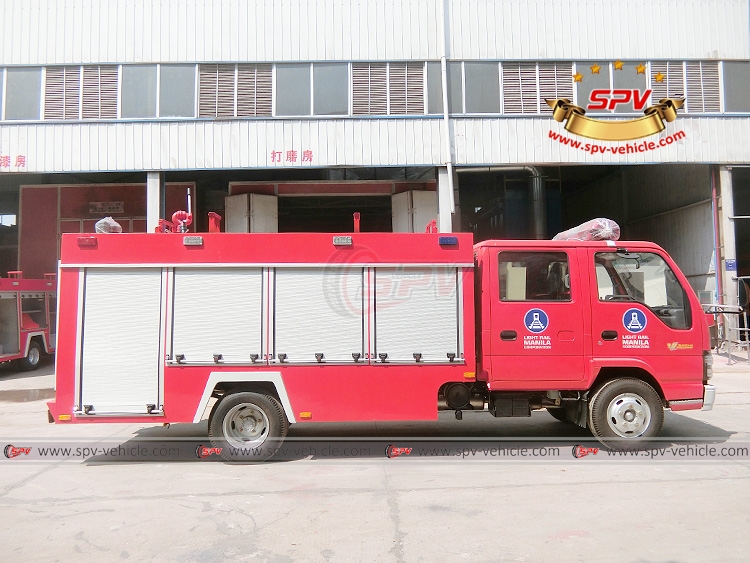

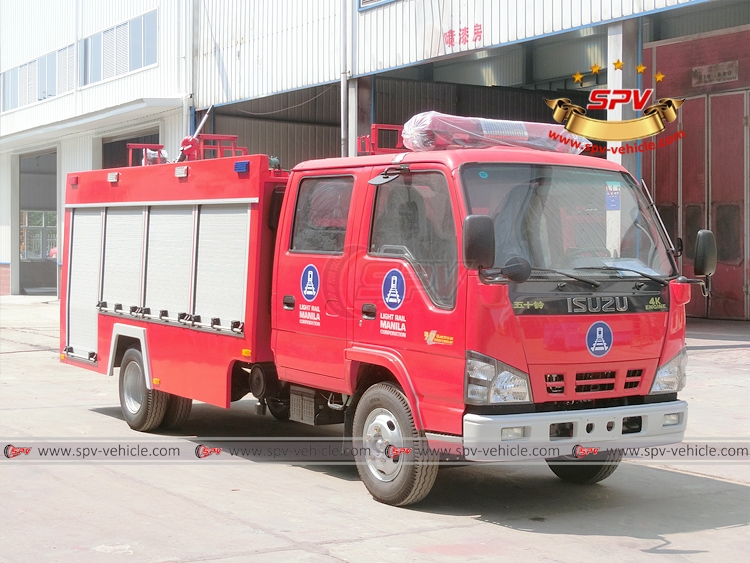

ISUZU 2,500 Litres Fire Fighting Tanker

三月 25, 2019

Fire Apparatus ISUZU

2,500 Litres Fire Fighting Tanker

Function:

Fire apparatus (also called fire fighting tanker, water tank fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.

Specification:

Fire Apparatus ISUZU (2,500 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	6260 * 2000 * 2940 mm
	GVW / Kerb Weight	6,630 kg / 4,145 kg
Cab	Cab Capacity	2+3 persons allowed
	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine,4KH1
	Power	120 Ps (88 KW)
	Displacement	2999 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand or right drive
	Transmission	ISUZU gear box, no overhaul within 500,000km
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	7.00-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Metallic paint
Superstructure	Water Capacity	2,500 Litres (About 660 gallons)
	Foam Capacity	None
	Tank Material	Carbon steel
	Fire Pump	Flow speed	20L/s
		Pressure	1.0MPa
	Fire Cannon	Flow speed	Water	20 L/s
			Foam	/
		Shot	Water	48 m
			Foam	/
	Suction Head	6 m

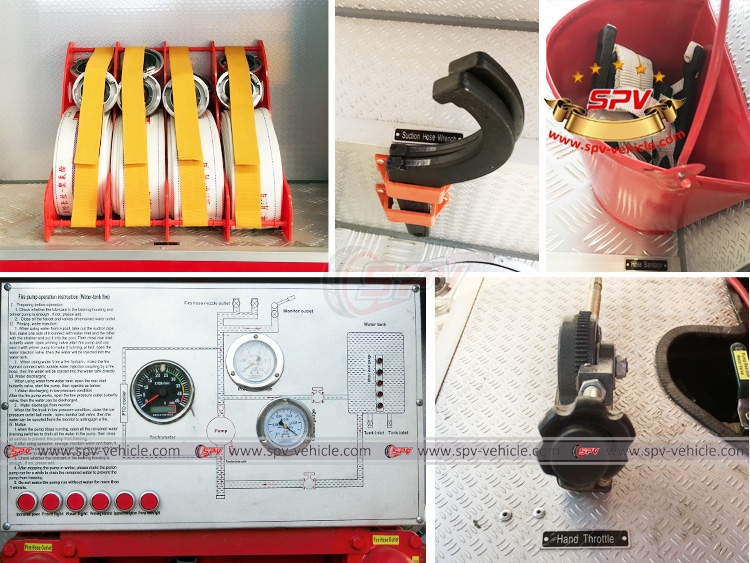

	Hose	High quality, wire strengthened hose, with cooper wire, anti-static

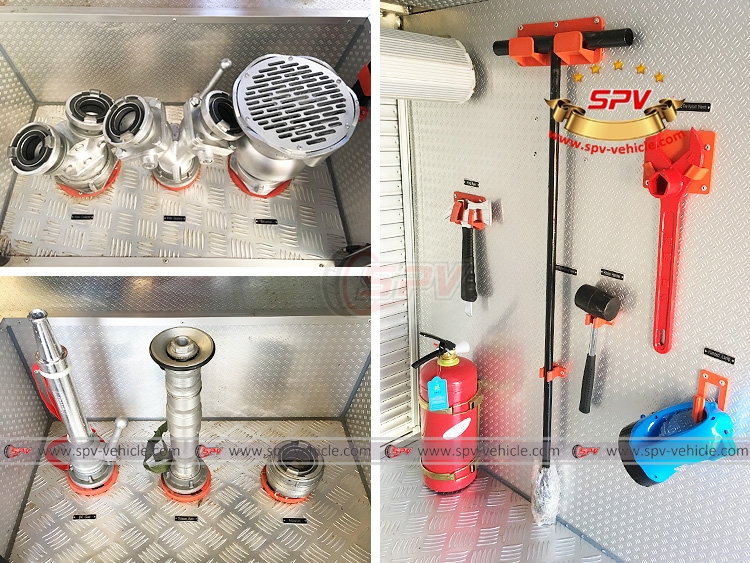

	All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional	Ladders, floodlights...
