ISUZU 3,000Litres vacuum sewage truck

Vacuum Tanker ISUZU

3,000Litres vacuum sewage truck

•

Function:

Vacuum sewage suction truck (also called truck mounted sewage vacuum cleaner, vacuum cleaner truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, cesspit emptier, gully emptier etc.) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

SPV vacuum tank capacity ranges from 3,000 litres to 20,000 litres…..

Features:

---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.

Specification:

Vacuum Truck ISUZU ( 3,000 litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	5900 x 1900 x 2400 mm
	GVW / Kerb Weight	7,300 kg / 3,640 kg
Cab	Cab Capacity	2 persons seat
	Air Conditioner	Air conditioner equipped
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU, 4JB1CN
	Power	98 HP / 72 kw
	Displacement	2771 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU gear box, no overhaul within 500,000km
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	6.50R15
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Metallic paint
Superstructure	Vacuum Tank Capacity	3,000 litres
	Tank Material	Carbon steel
	Suction Head	6 m
	Vacuum Pump	High efficiency, vacuum rare up to 93%, quick suction and discharge
	Suction Hose	High quality, wire strength hose
	Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose.
	Rear door can be hydraulic opened for complete discharge of solid stuff.
	All other standard accessories: Tool kit, English manual……
Optional	1.    Tank material could be mild steel, stainless steel… 2.    Italy vacuum pump is available.

*** To Palau - 3,000 litres Sewage Vacuum Truck ISUZU and 6,000 litres Sewage Vacuum Truck ISUZU ***

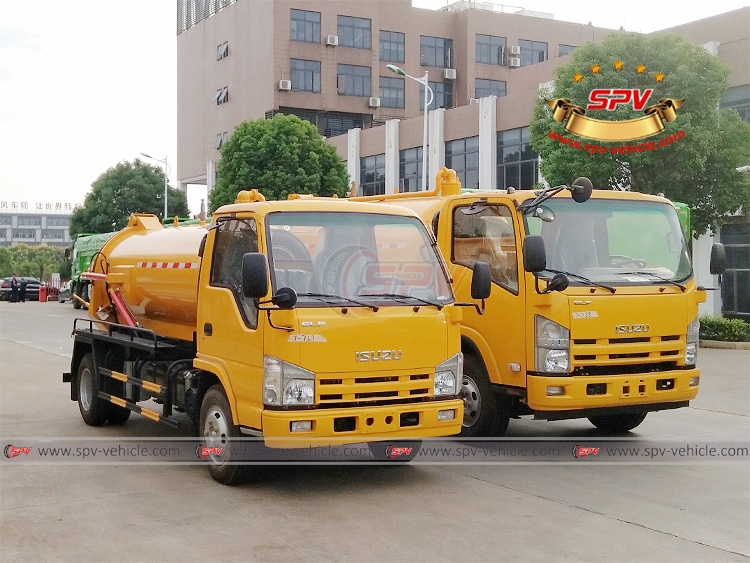

3,000 litres Sewage Vacuum Truck ISUZU and 6,000 litres Sewage Vacuum Truck ISUZU - RF

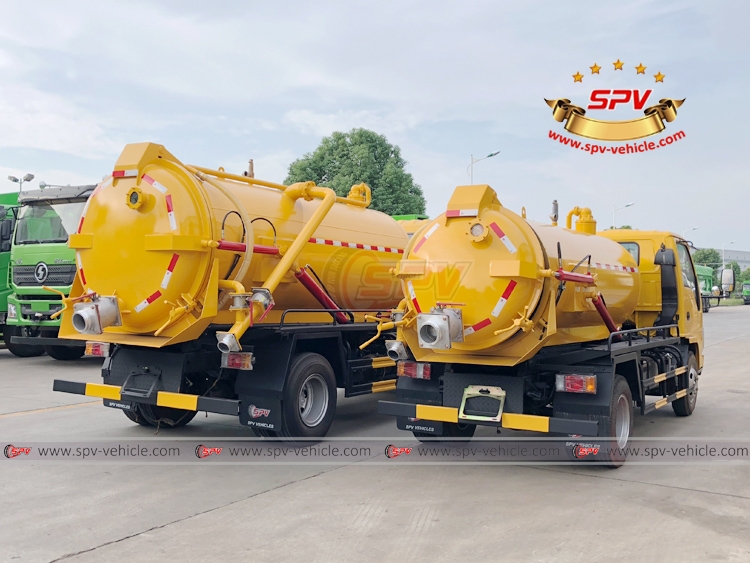

3,000 litres Sewage Vacuum Truck ISUZU and 6,000 litres Sewage Vacuum Truck ISUZU - RB

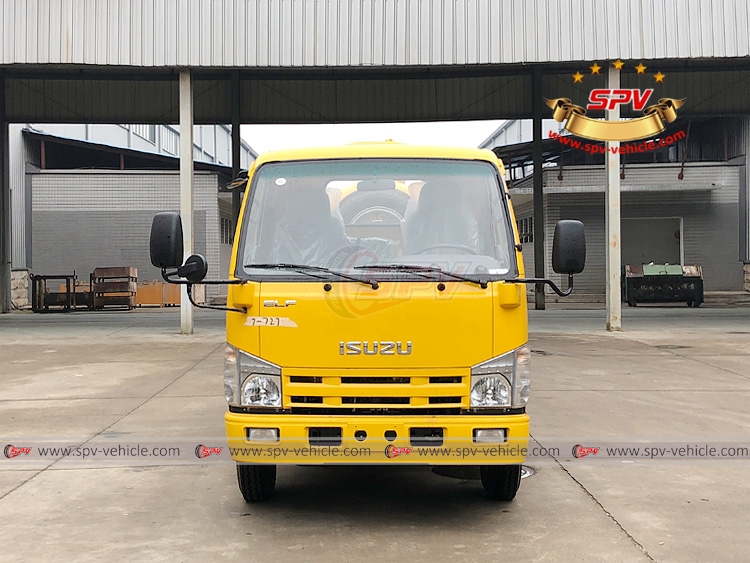

Front view of 3,000 litres Sewage Vacuum Truck ISUZU

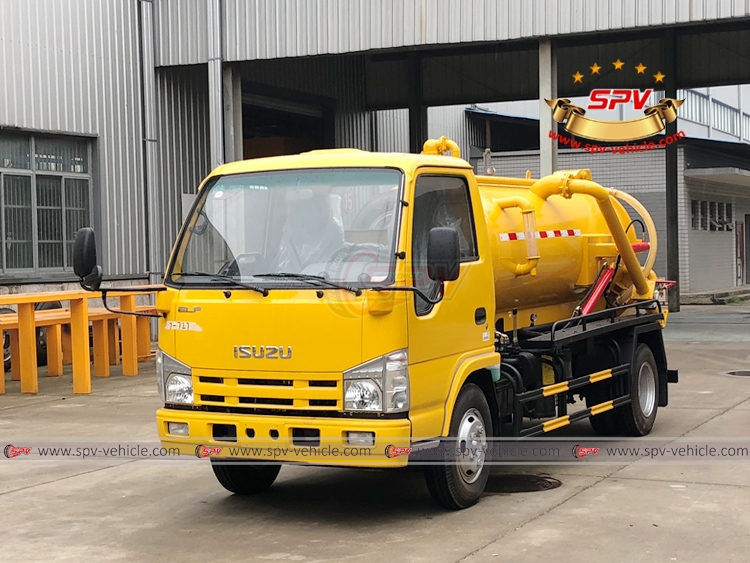

Left front view of 3,000 litres Sewage Vacuum Truck ISUZU

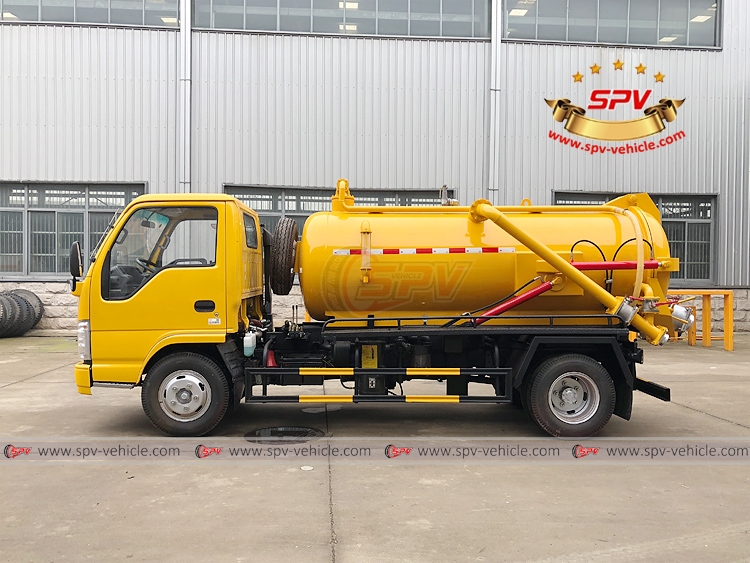

Left side view of 3,000 litres Sewage Vacuum Truck ISUZU

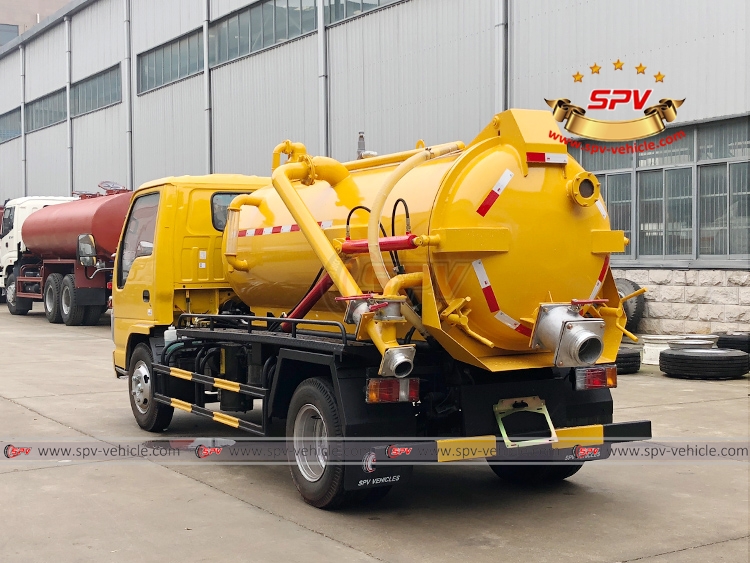

Left back view of 3,000 litres Sewage Vacuum Truck ISUZU


Right front view of 3,000 litres Sewage Vacuum Truck ISUZU


Right side view of 3,000 litres Sewage Vacuum Truck ISUZU


Right back view of 3,000 litres Sewage Vacuum Truck ISUZU

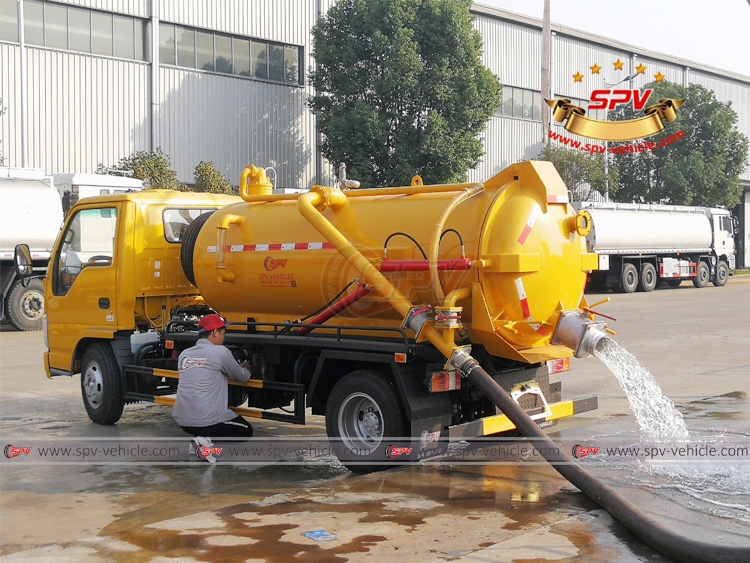

3,000 litres Sewage Vacuum Truck ISUZU - Discharging by rear discharge valve


3,000 litres Sewage Vacuum Truck ISUZU - Rear lid opening

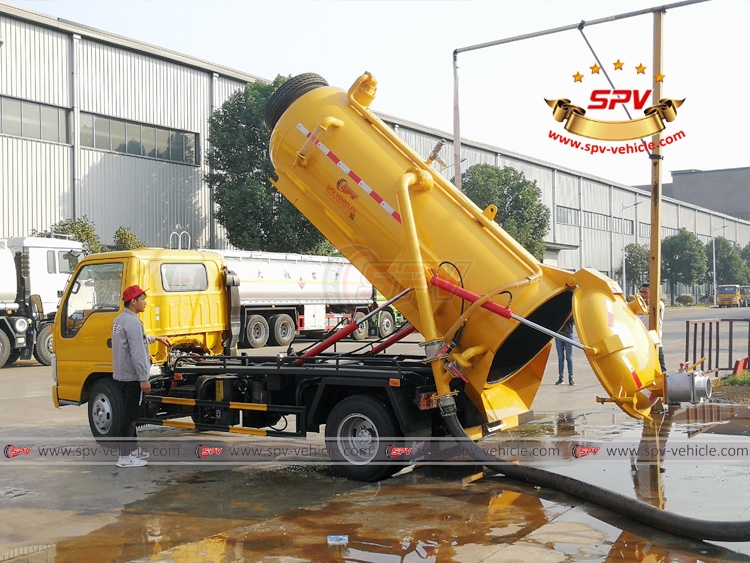

3,000 litres Sewage Vacuum Truck ISUZU - Tank Lifting
