ISUZU 4 CBM Dustbin and 4 CBM Water Tank

Washing and Cleaning Truck ISUZU
4 CBM Dustbin and 4 CBM Water Tank


Function:
Washing and cleaning truck (also called road cleaning truck, street washing truck, street cleaning truck, road sweeper truck, road washing and cleaning truck, road sweeper truck, street sweeper truck, truck mounted sweeper) is used for washing, cleaning and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city, municipal roads and areas. Meantime, it has high pressure jetting function - washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

It is equipped with auxiliary engine, air blower, imported high pressure plunge pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.

Street washing truck has self cleaning system which could tip garbage and washing the dustbin automatically.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 4 CBM Dustbin and 4 CBM Water Tank
Specification:

Washing and Cleaning Truck ISUZU (4 CBM Dustbin and 4 CBM Water Tank)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension7200 * 2200 *2600 mm
GVW / Kerb Weight7,500 kg / 6,500 kg
CabCab Capacity2 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU engine
Power120 Ps (88 KW)
Displacement2999 ml
Emission StandardEuro III, IV
ChassisDrive Type4X2, left hand or right hand drive
Transmission5-speed forward, 1 reverse
No. of axle2
Tyre Specification7.00-16
Tyre Number6 tyres and 1 spare tyre
Max Speed110 km/h
PaintMetallic paint
SuperstructureWater Tank4 CBM  (About 1,500 gallons)
Dustbin Material4 CBM , Stainless Steel
High Pressure PumpImported Italian high pressure water pump
Working Speed3-25 km/h
Working Width2800 mm
Sweeping Capacity40,000 m³/h
Brooms2 sets
Suction PlateBig diameter 180mm, Hydraulic controll
Auxiliary EngineJX493 (ISUZU Technology),
77 HP (57 KW), super powerful
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual……
Optional** Stainless steel water tank.
** Front snow plow.
** Elevating Platform.
** High cannon.

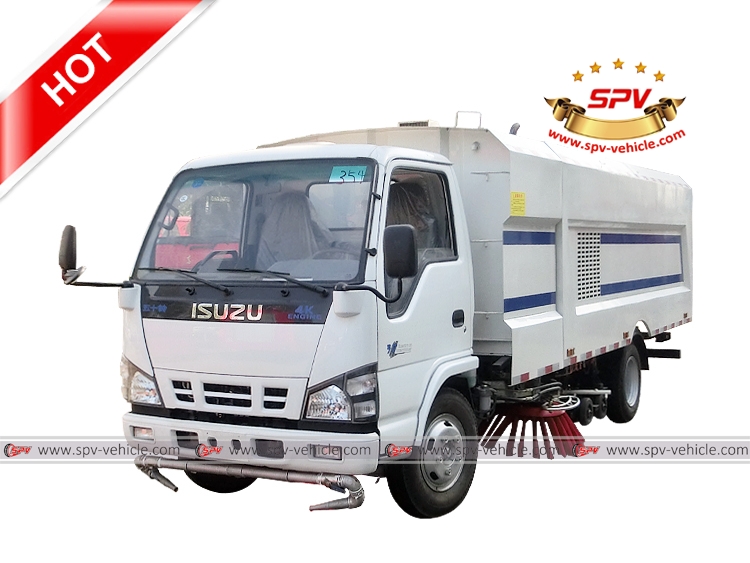

Photo 1: Front view of ISUZU Washing and Cleaning Truck(4 CBM Dustbin and 4 CBM Water Tank)


Photo 2: Left front view of ISUZU Washing and Cleaning Truck(4 CBM Dustbin and 4 CBM Water Tank)


Photo 3: Left side view ofISUZU Washing and Cleaning Truck(4 CBM Dustbin and 4 CBM Water Tank)


Photo 4: Left back view of ISUZU Washing and Cleaning Truck(4 CBM Dustbin and 4 CBM Water Tank)


 Photo 5: Right front view of ISUZU Washing and Cleaning Truck(4 CBM Dustbin and 4 CBM Water Tank)

Photo 6: Right back view of ISUZU Washing and Cleaning Truck(4 CBM Dustbin and 4 CBM Water Tank)
Similar Key Words: road cleaning truck, street washing truck, street cleaning truck, road sweeper truck, road washing and cleaning truck, road sweeper truck, street sweeper truck, truck mounted sweep
