ISUZU 4 m³ Waste Collector

Garbage Compactor ISUZU
4 m³ Waste Collector
Garbage Compactor ISUZU

Function:
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:
Similar Key Words:  ISUZU garbage compactor, trash compactor, waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry, garbage compactor vehicles, garbage compacting truck, refuse collector, waste compactor, waste compactor truck, garbage compactor truck, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle

Garbage Compactor ISUZU ( 4 m³)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension6500 * 2100 * 2600 mm
GVW / Kerb Weight7,300 kg / 4,900 kg
CabCab Capacity2 persons allowed
Air ConditionerEquipped
EngineFuel TypeDiesel
Engine BrandISUZU engine, 4JB1CN
Power98 Hp (72 KW)
Displacement2771 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, 5 speed forward, 1 revserse
No. of axle2
Tyre Specification7.00R15
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureWaste Box Capacity4m³
Waste Box MaterialCarbon steel
All other standard accessories: Tool kit, English manual……
Optional **Various rear loading mechanism: container lifting; hopper flip; skip loader…
 **Electronic operating system

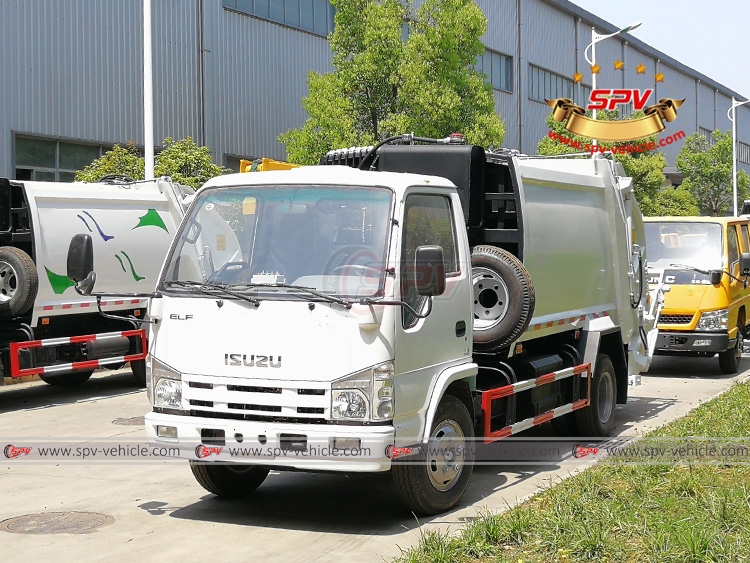

Compactor Garbage Truck ISUZU - LF
Photo 1: Left front view of Garbage Compactor Truck ISUZU(4 cbm)

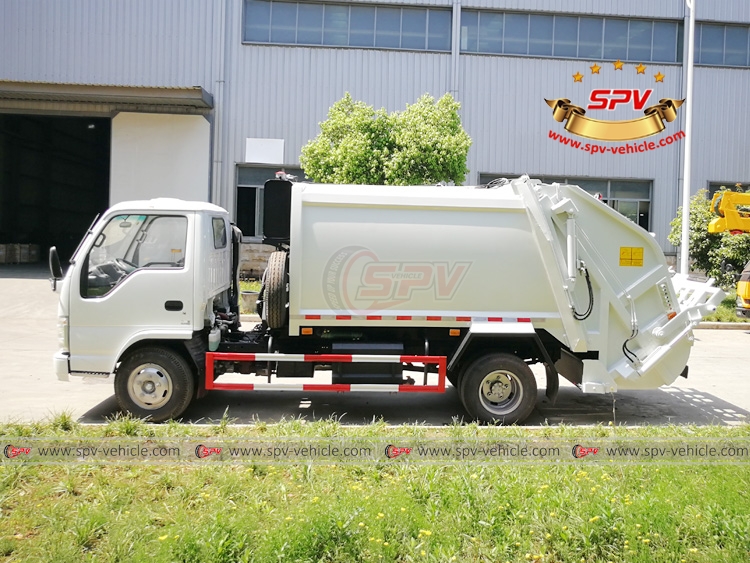

Compactor Garbage Truck ISUZU - LS
Photo 2: Left side view of Garbage Compactor Truck ISUZU(4 cbm)

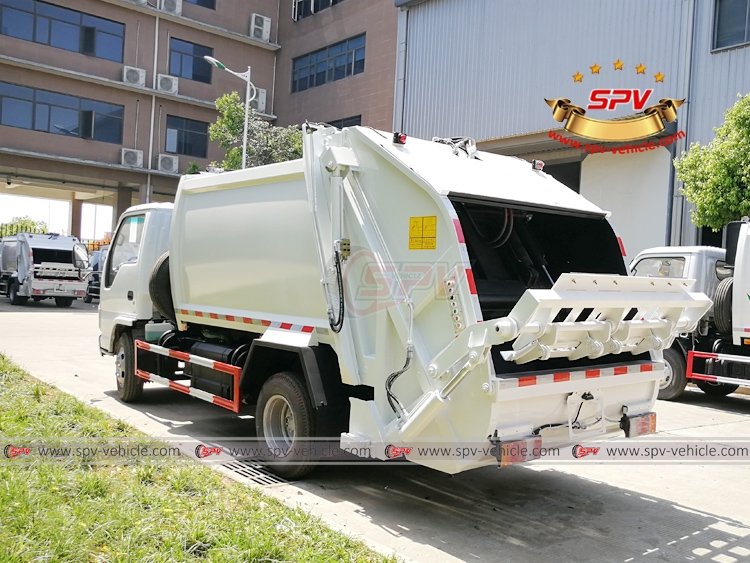

Compactor Garbage Truck ISUZU - LB
Photo 3: Left back view of Garbage Compactor Truck ISUZU(4 cbm)

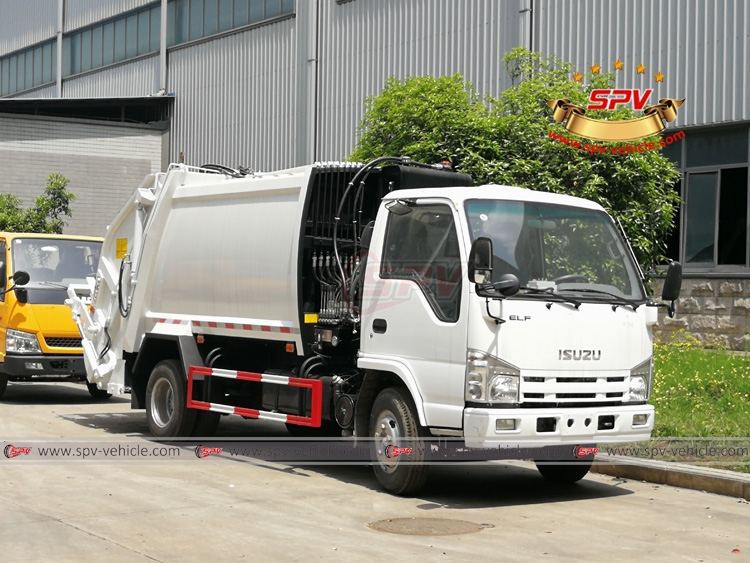

Compactor Garbage Truck ISUZU - RF
Photo 4: Right front view of Garbage Compactor Truck ISUZU(4 cbm)

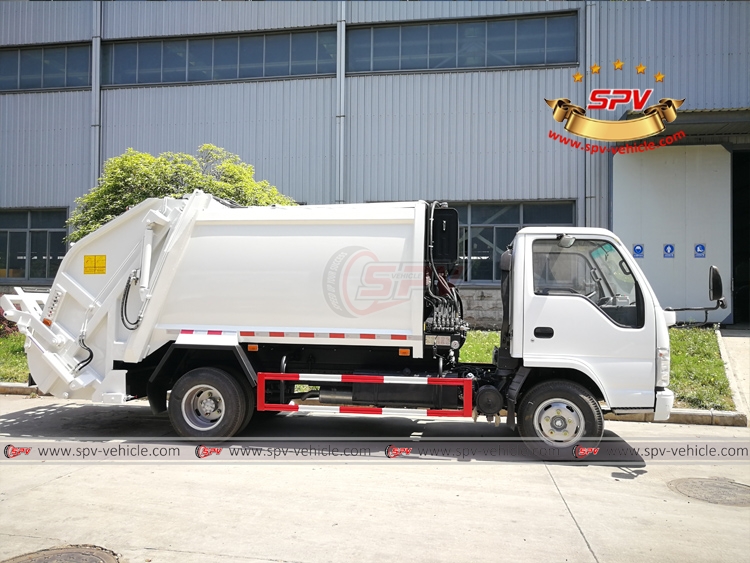

Compactor Garbage Truck ISUZU - RS
Photo 6: Right side view of Garbage Compactor Truck ISUZU(4 cbm)

Compactor Garbage Truck ISUZU - LF

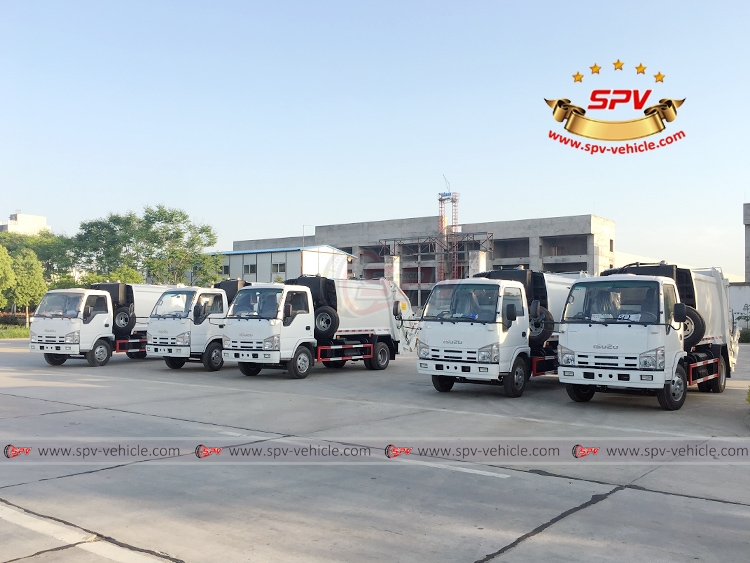

Photo 7: Garbage Compactor Truck ISUZU(4 cbm) - 5 units
