ISUZU 4,000 Litres Fuel Dispensing Truck

Stainless Steel Fuel Truck ISUZU
4,000 Litres Fuel Dispensing Truck
Stainless Steel Fuel Truck ISUZU

Function:
Fuel tanker truck (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specification:
Fuel Tanker Truck ISUZU (4,000 Litres)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension5980 * 1900 * 2200 mm
GVW / Kerb Weight7,300 kg / 3,420 kg
CabCab Capacity2 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU engine, 4HK1
Power98 Ps (72 KW)
Displacement2771 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle3360 mm / 2
Tyre Specification7.00-15
Tyre Number6 tyres and 1 spare tyre
Max Speed98 km/h
PaintMetallic paint
SuperstructureTank Capacity4,000 Litres (About 1,050 gallons)
MaterialTank, mechanical pump, pump box all stainless steel
PumpFuel pump equipped for overhead delivery
Suction Head6 m
HoseHigh quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
Stainless Steel Fuel Tank Truck ISUZU (4,000 Liters) Right Front View
Photo 1: Fuel Tanker Truck ISUZU (4,000 liters) made of Stainless Steel Front Right View

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Front View
Photo 2: Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Front View

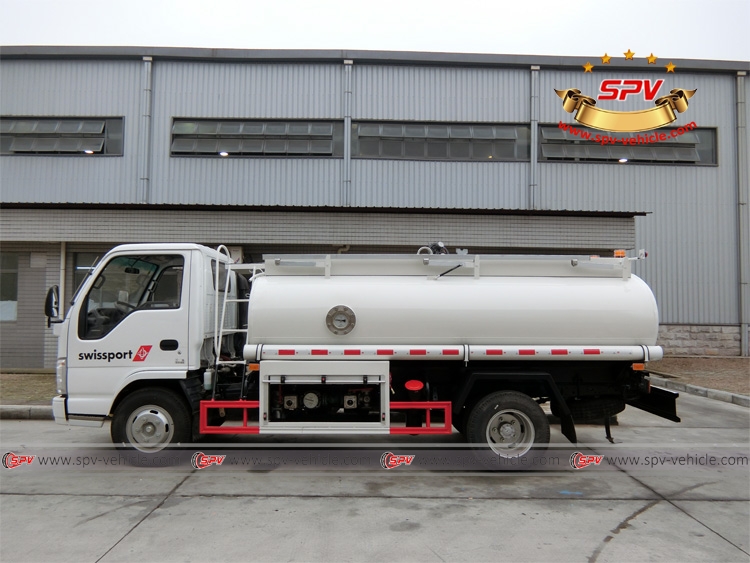

Stainless Steel Fuel Tank Truck ISUZU (4,000 Liters) Left Side View
Photo 3: Fuel Tanker Truck ISUZU (4,000 liters) made of stainless steel left side view

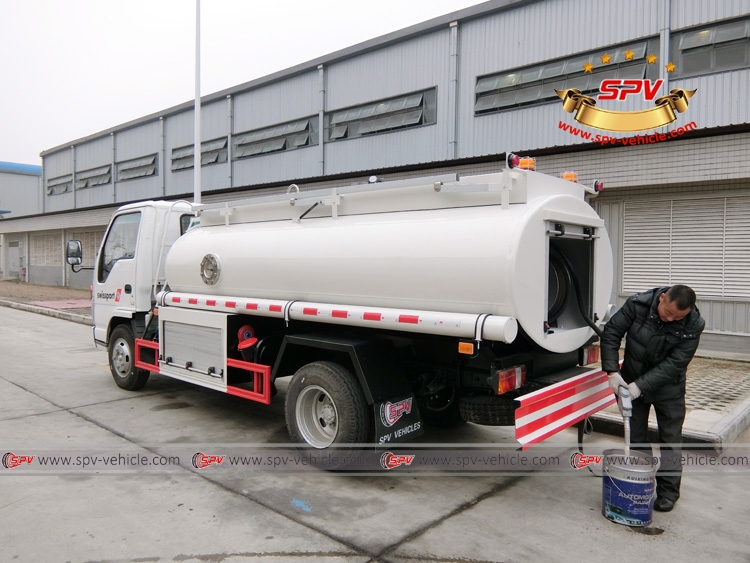

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Left View
Photo 4: Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Left View

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear View
Photo 5: Fuel Tanker Truck SUZU (4,000 liters) Made of Stainless Steel Rear View

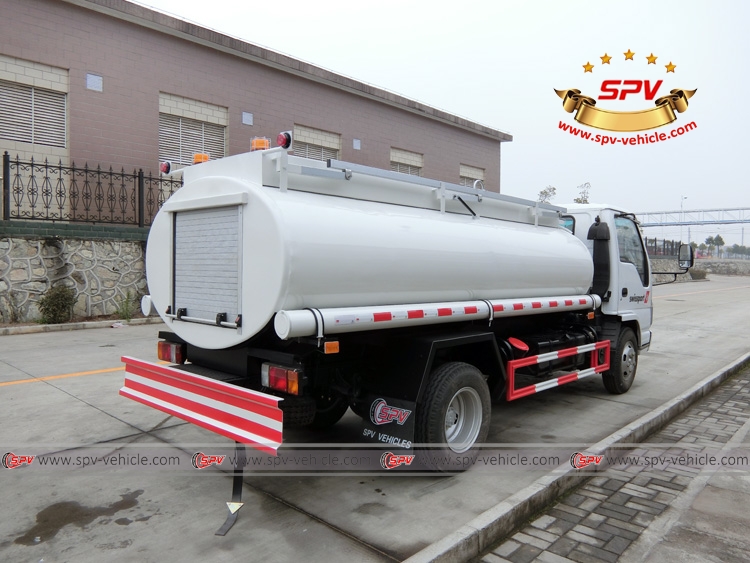

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Right View
Photo 6: Fuel Tanker Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Rear Right View

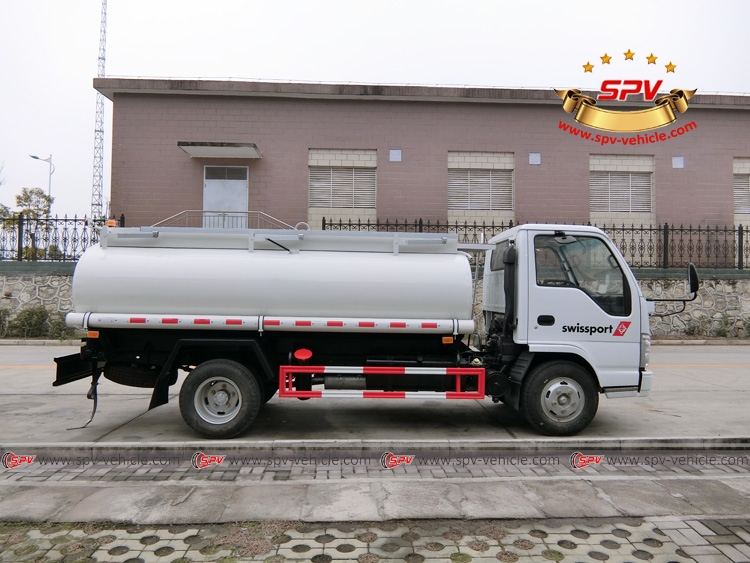

Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Right View
Photo 7: Stainless Steel Fuel Tanker Truck ISUZU (4,000 liters) Right View

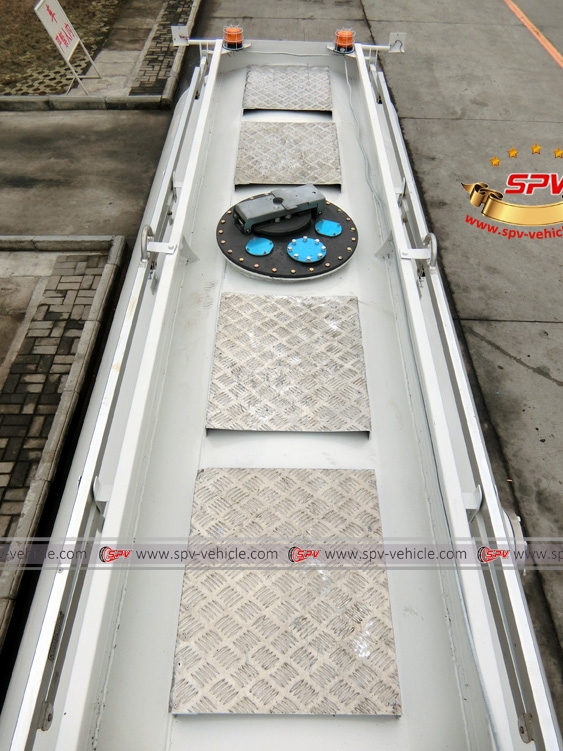

Stainless Steel Fuel Tanker ISUZU Tank Top
Photo 8:Stainless Steel Fuel Tanker ISUZU Tank Top

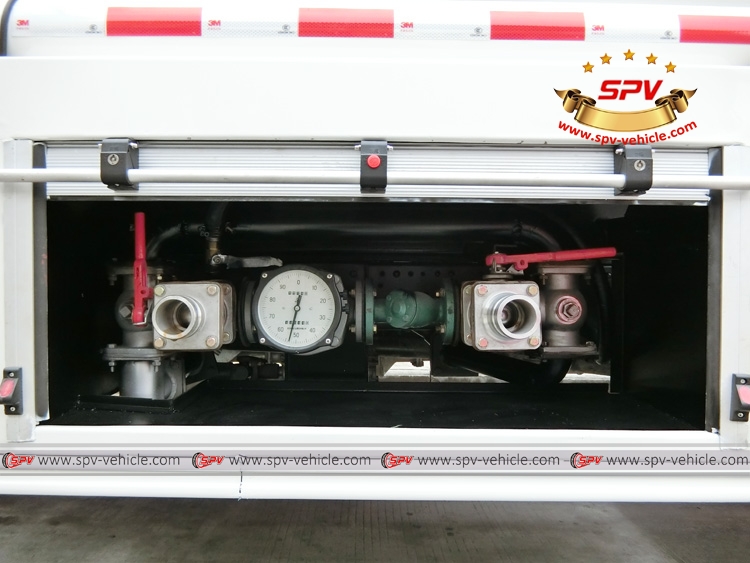

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System
Photo 9: Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System 1

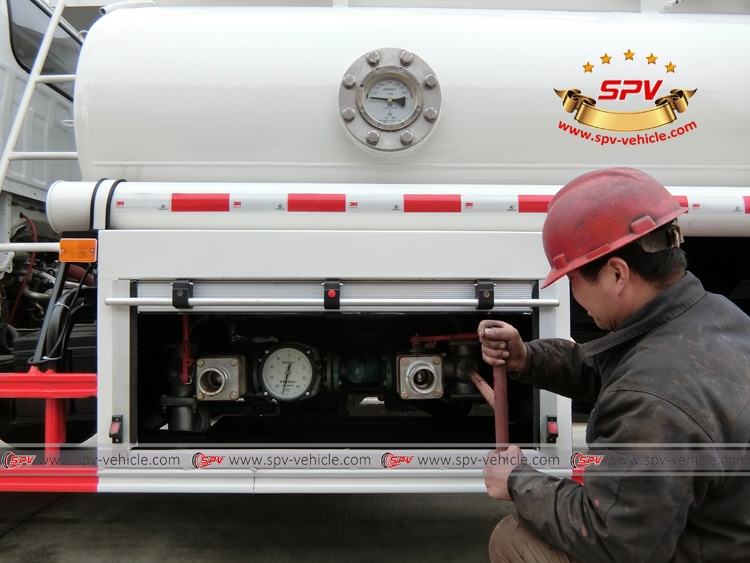

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System 2
Photo 10: Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Mechnical Pump System 2

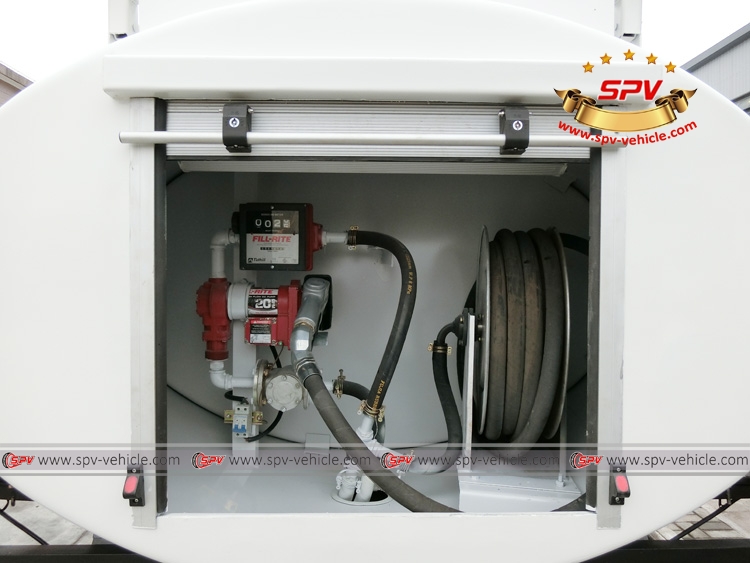

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Electrical Pump System

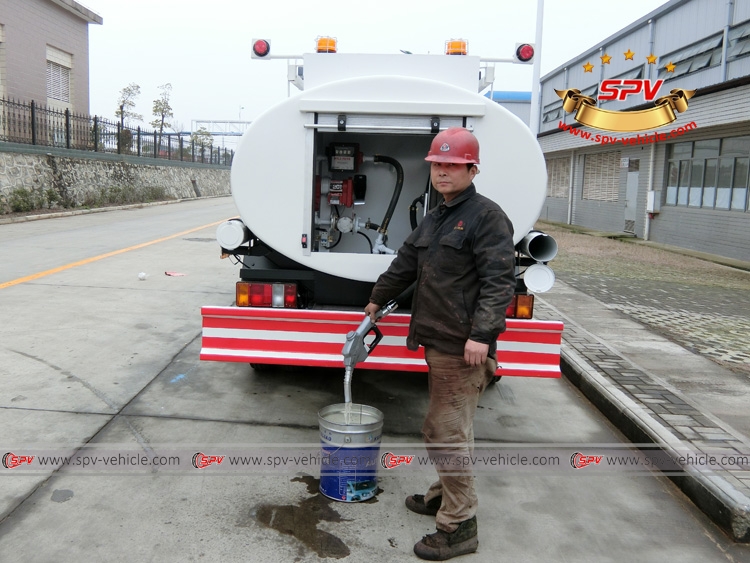

Photo 11: Stainless Steel Fuel Dispensing Truck ISUZU (4,000 liters) is on testing

Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Electrical Pump System 2
Photo 12: Stainless Steel Fuel Tank Truck ISUZU (capacity: 4,000 liters) Electrical Pump System

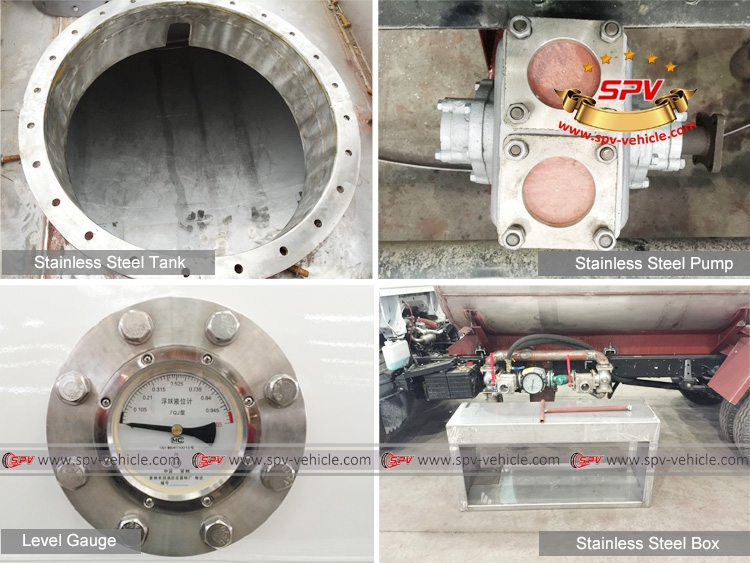

Fuel Tanker ISUZU (Stainless Steel Material)
Photo 13: Stainless Steel parts Show at Manufacturing Stage

Photo 15: Irene in front of Stainless Steel Tank Truck for Swissport Company for Ghana
Similar Key Words:  ISUZU oil dispensing truck, IVECO petrol bowser, truck tank fuel, oil truck, diesel tanker, oil refueling truck, oil transport truck, fuel truck
