ISUZU 5.5 CBM dustbin and 1.5 CBM water tank

Road Sweeping Truck ISUZU
5 CBM dustbin and 2 CBM water tank

Function:
Road sweeping truck (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Specification:
Similar Keywords: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck
Road Sweeping Truck ISUZU ( 5 CBM dustbin & 2 CBM water tank )
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension6600 * 2300 * 2800 mm
GVW / Kerb Weight10,000kg / 6,500kg
CabCab Capacity2 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU
Power190 Ps (139 KW)
Displacement5193 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle4175 mm / 2
Tyre Specification8.25-16
Tyre Number6 tyres and 1 spare tyre
Max Speed110 km/h
PaintMetallic paint
SuperstructureWater TankStainless Steel
Dustbin Capacity5 CBM
Dustbin MaterialStainless Steel
Water Tank Capacity2,000 Litres (About 500 gallons)
Sweeping Capacity45,000 - 90,000 m2/h
Sweeping Speed3-25 km/h
Max Sweeping Width2800 - 3200 mm
Brooms2 sets at each side
Auxiliary EngineJMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

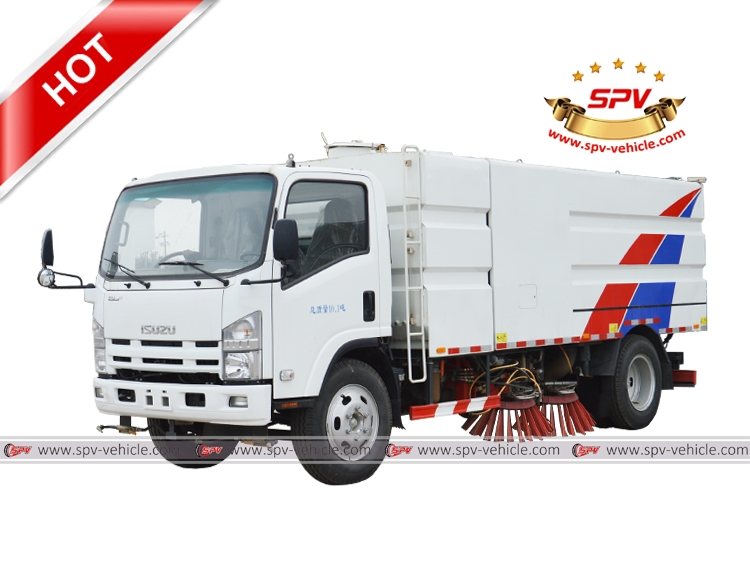

Photo 1: Side View of  ISUZU Road Sweeping Truck

Photo 2: Back View of  ISUZU Road Sweeping Truck
