ISUZU 5,000 Litres Oil Transport Truck

Fuel Tanker ISUZU
5,000 Litres Oil Transport Truck
Fuel Tanker ISUZU

Function:
Fuel tank truck (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specification:
Fuel Tanker ISUZU (5,000 Litres)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension6000 * 1880 * 2552 mm
GVW / Kerb Weight7,300 kg / 3,370 kg
CabCab Capacity3 persons allowed
Air Conditioner Air conditioner is optional
EngineFuel TypeDiesel
Engine BrandISUZU engine, 4HK1
Power120 Ps (88 KW)
Displacement2999 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle3360 mm / 2
Tyre Specification7.00-16
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureTank Capacity5,000 Litres (About 1,300 gallons)
Tank MaterialCarbon steel
PumpFuel pump equipped for overhead delivery
Suction Head6 m
HoseHigh quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
Fuel Tank Truck ISUZU - 4,000 litres

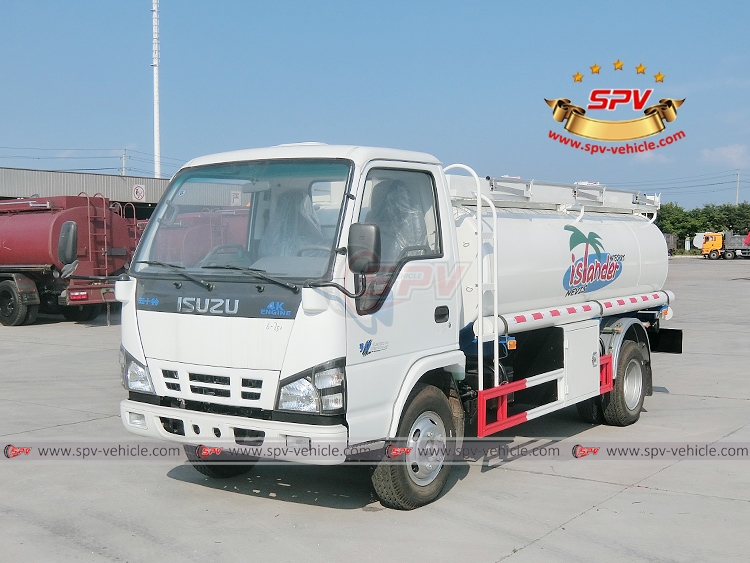

Photo 1: ISUZU Fuel Tank Truck - Left Front View

Fuel Tank Truck ISUZU - Flow Meter and Howse Reel with Nozzle

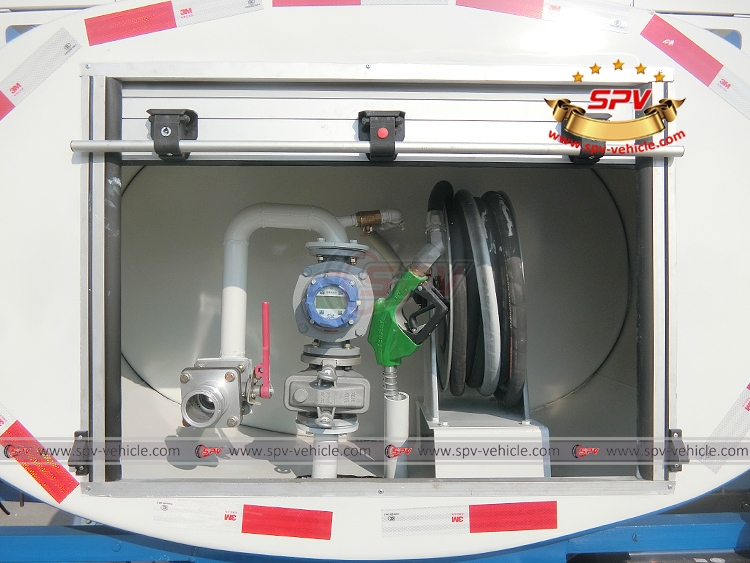

Photo 17: ISUZU Fuel Tank Truck - Fuel flow meter and 15 meters’ hose reel with nozzle

Fuel Tank Truck ISUZU - LS

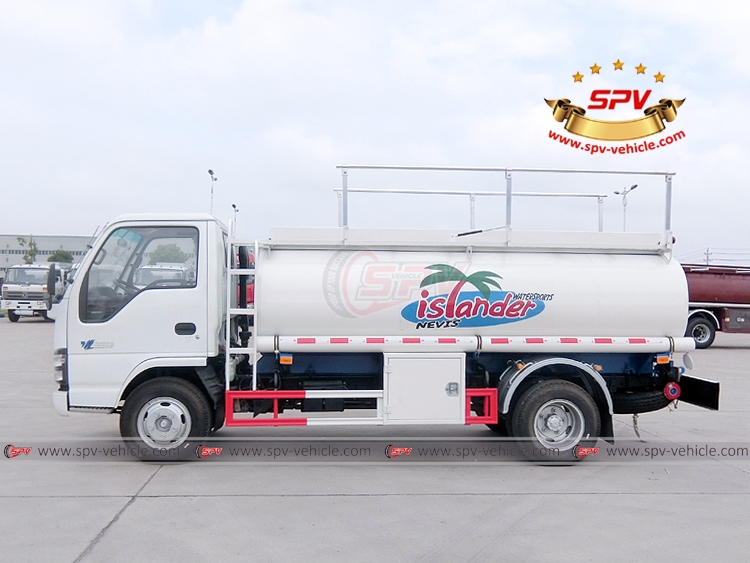

Photo 3: Left side view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - LB

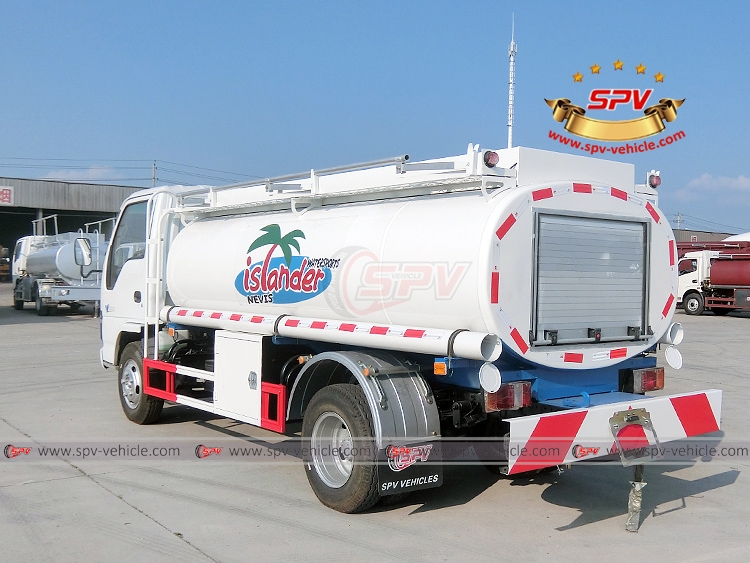

Photo 4: Left back view of Fuel Tank Truck ISUZU (4,000 litres)
Fuel Tank Truck ISUZU - RF

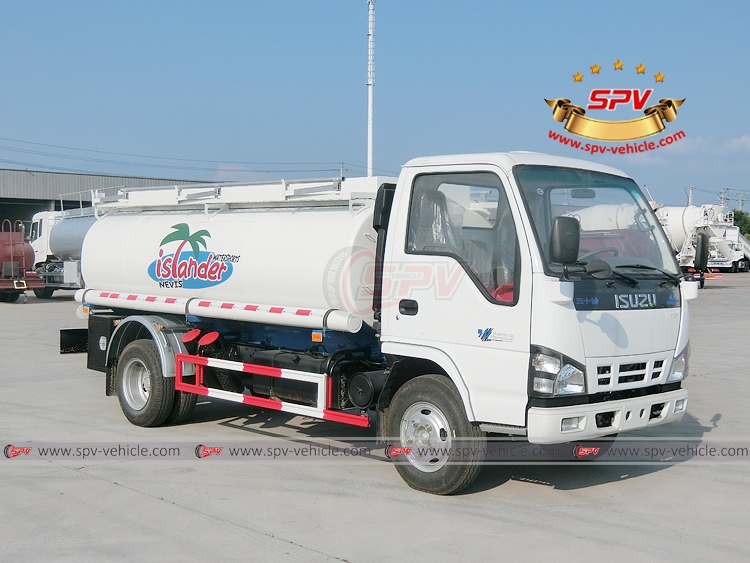

Photo 5: Right front view of Fuel Tank Truck ISUZU (4,000 litres)

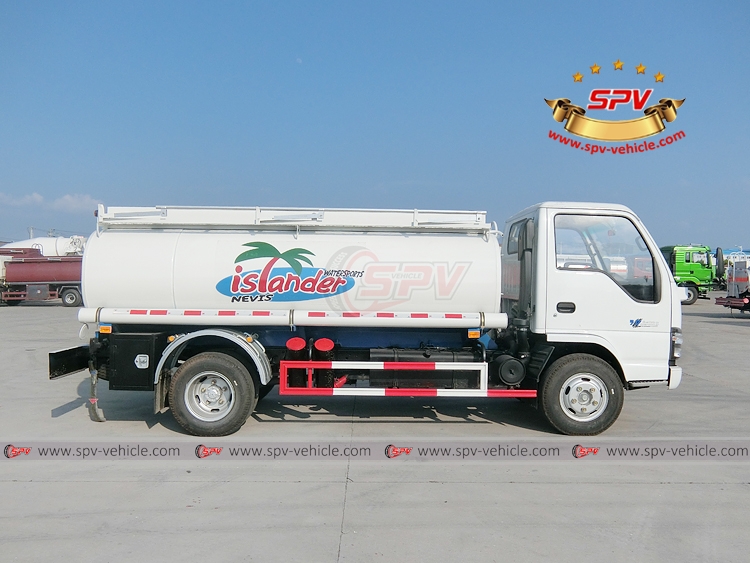

Fuel Tank Truck ISUZU - RS
Photo 6: Right side view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - RB

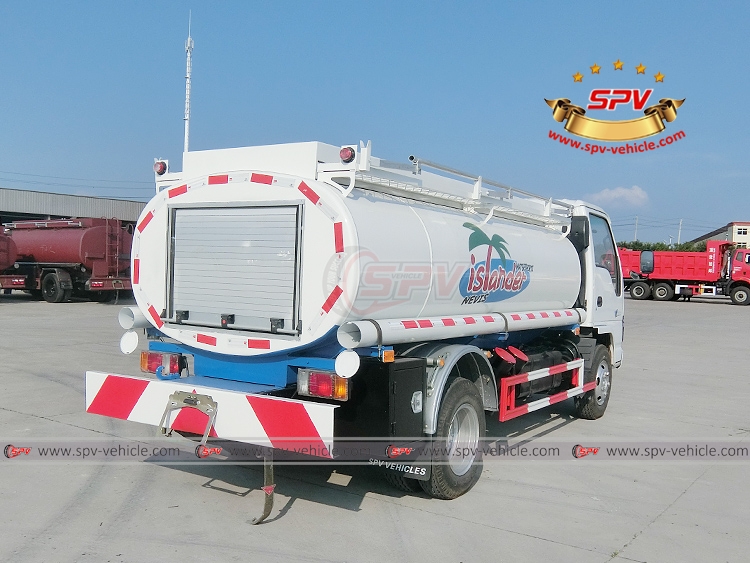

Photo 7: Right back view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - B

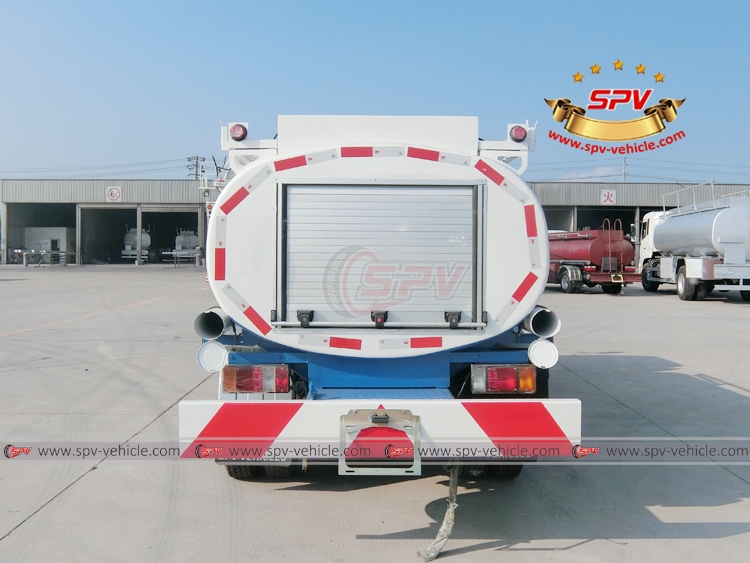

Photo 8: Back view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - Loading into Container 01

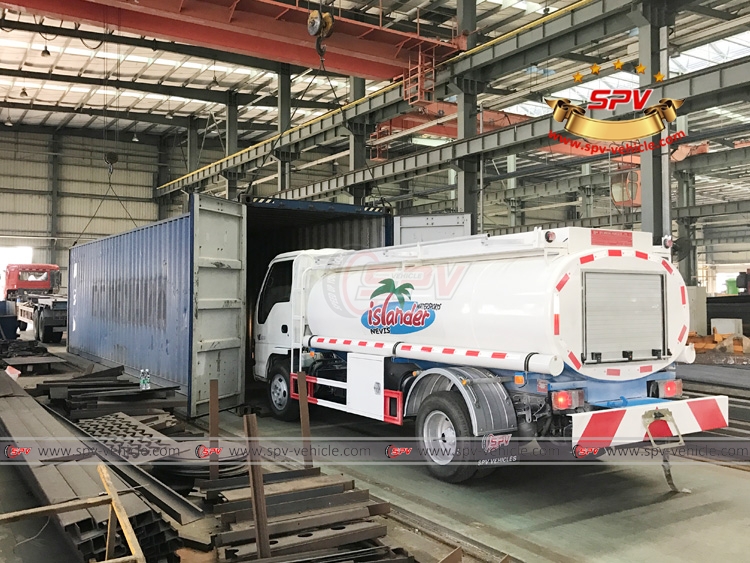

Photo 9: To Saint Kitts and Nevis - one unit of Fuel Tank Truck ISUZU (4,000 litres)

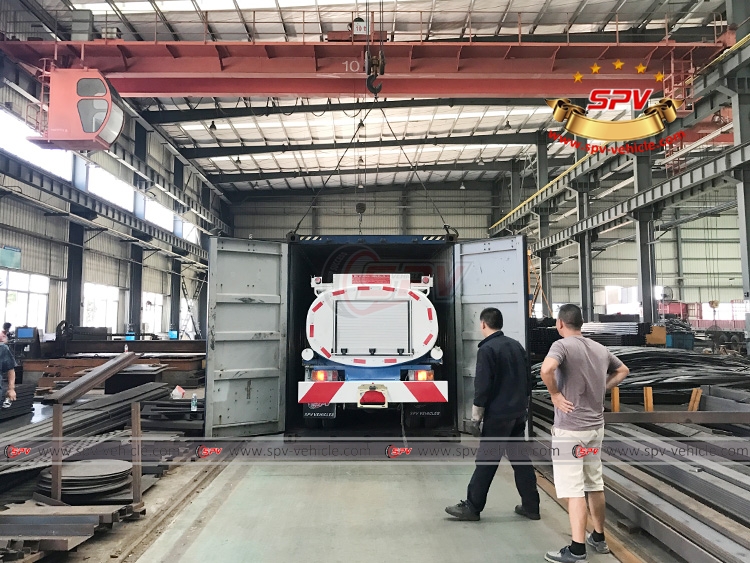

Fuel Tank Truck ISUZU - Loading into Container 02
 Photo 10: To Saint Kitts and Nevis - one unit of Fuel Tank Truck ISUZU (4,000 litres)
