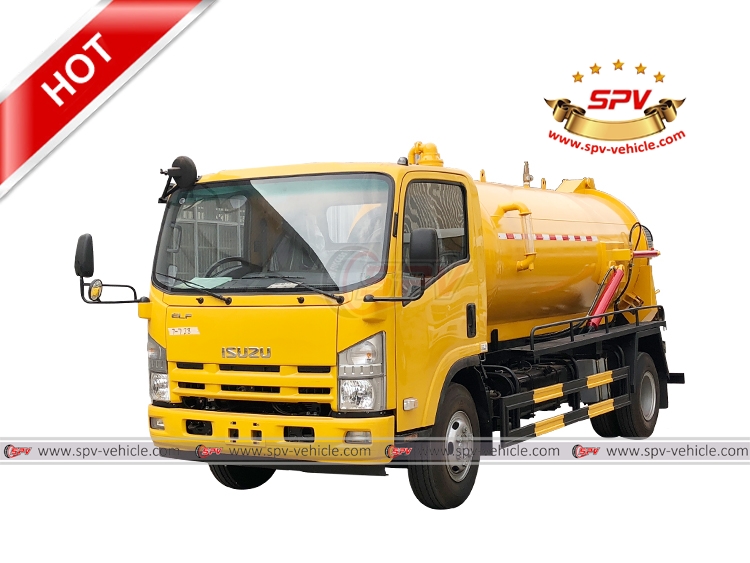

ISUZU 6,000 L sewer cleaning truck

Sewage Vacuum Truck ISUZU
6,000 L sewer cleaning truck
Sewage Vacuum Truck ISUZU

Function:
Sewage Vacuum Truck (also called sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.
Specification:

Sewer Cleaning Truck ISUZU (6,000 Litres)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension6700 * 2300 * 2700 mm
GVW / Kerb Weight10,000 kg / 5,480 kg
CabCab Capacity2 persons allowed
Air ConditionerEquipped
EngineFuel TypeDiesel
Engine BrandISUZU engine, 4HK1
Power189 Ps (139 KW)
Displacement5193 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle3800 mm / 2
Tyre Specification8.25R20
Tyre Number6 tyres and 1 spare tyre
Max Speed90 km/h
PaintMetallic paint
SuperstructureTank Capacity6,000 Litres (about 1,500 gallons)
Tank MaterialCarbon steel
Suction Head7m
Vacuum PumpHighly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m.
HoseHigh quality, wire strengthened hose
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: inlet, discharge, antifill valve……..
Optional** Tank material could be carbon steel, stainless steel..…..
** Vacuum pump could be imported brand……


*** To Palau - 6,000 litres Sewage Vacuum Truck ***

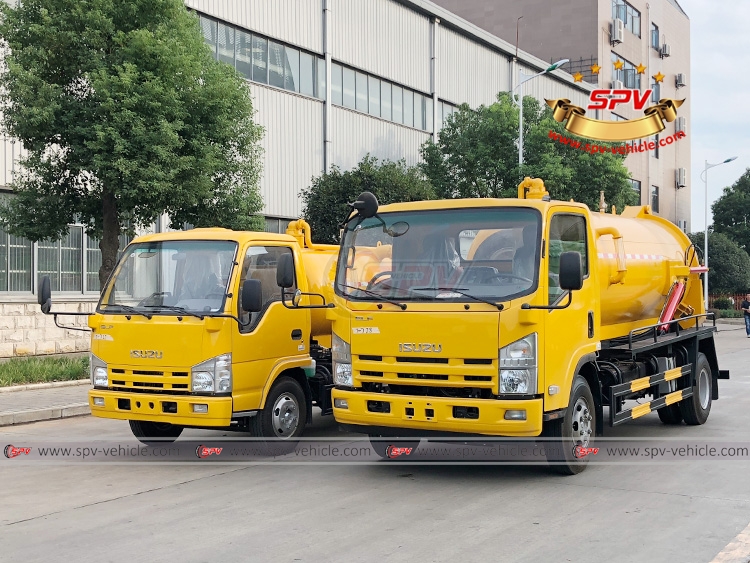

To Palau - 2 units of sewage vacuum truck ISUZU

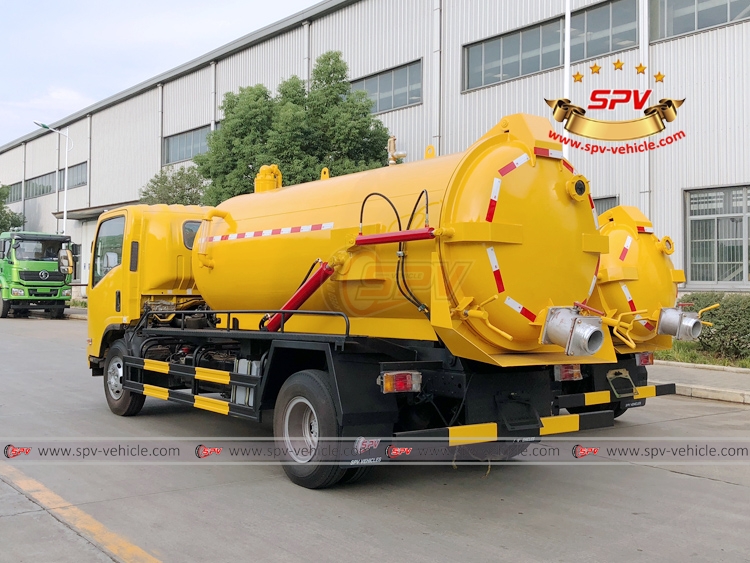

To Palau - 2 units of sewage vacuum truck ISUZU - LB

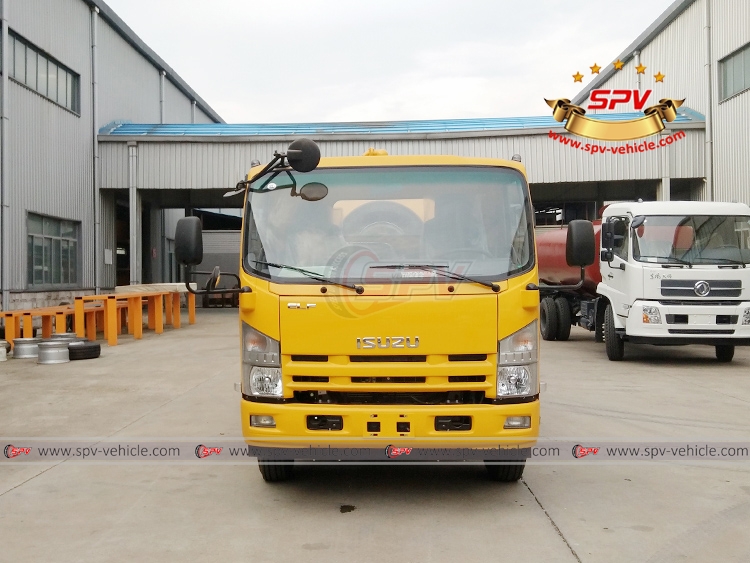

6,000 Litres Sewage Vacuum Truck ISUZU - F
Front view of sewage vacuum Truck ISUZU (6,000 litres)

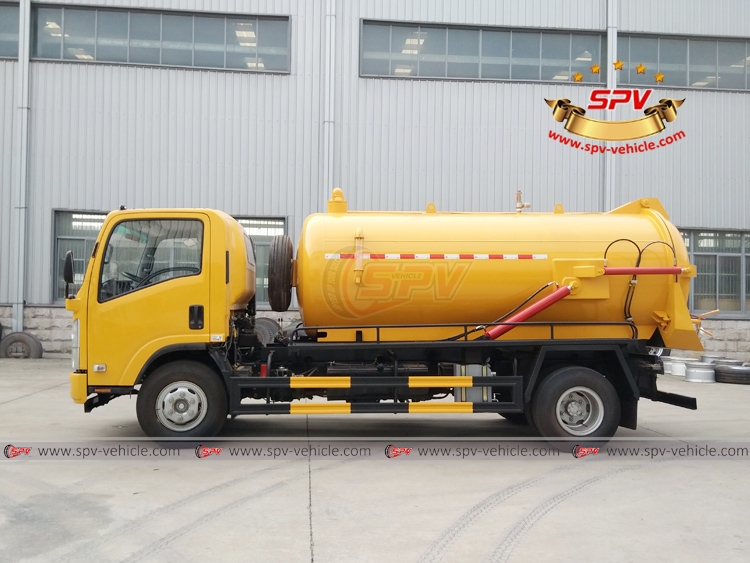

6,000 Litres Sewage Vacuum Truck ISUZU - LS
Left side view of sewage vacuum Truck ISUZU (6,000 litres)

6,000 Litres Sewage Vacuum Truck ISUZU - LB
Left back view of sewage vacuum Truck ISUZU (6,000 litres)

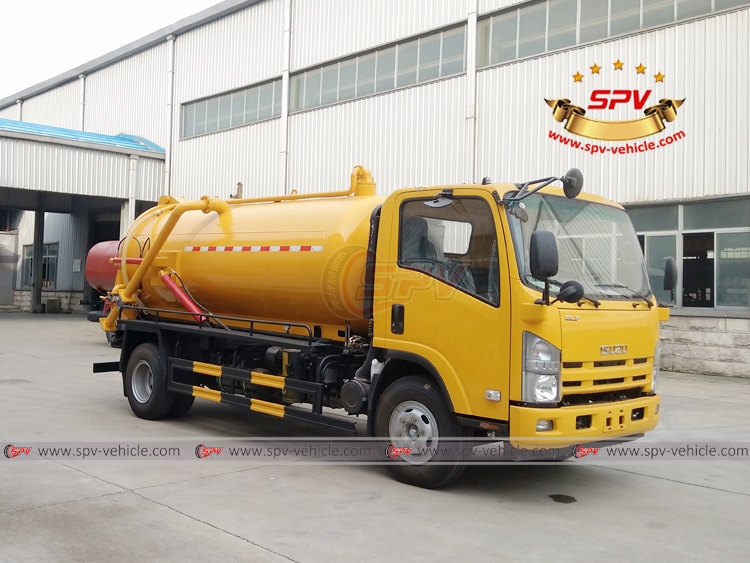

6,000 Litres Sewage Vacuum Truck ISUZU - RF
Right front view of sewage vacuum Truck ISUZU (6,000 litres)

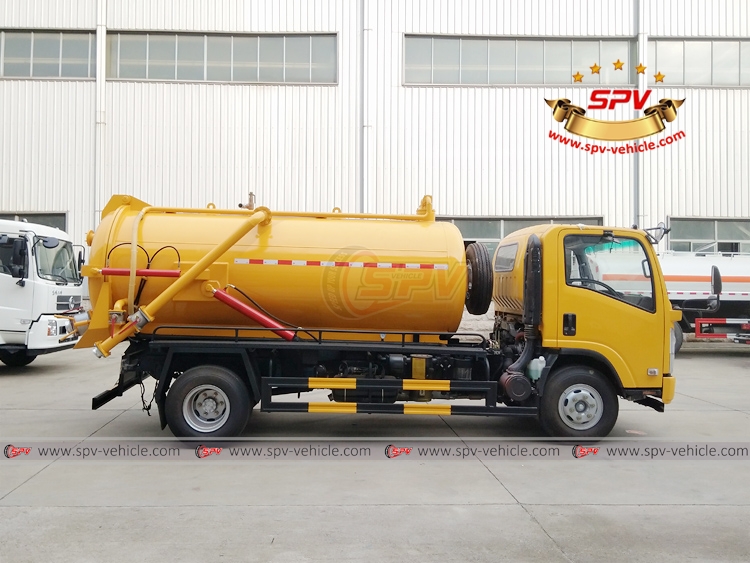

6,000 Litres Sewage Vacuum Truck ISUZU - RS
Right side view of sewage vacuum Truck ISUZU (6,000 litres)

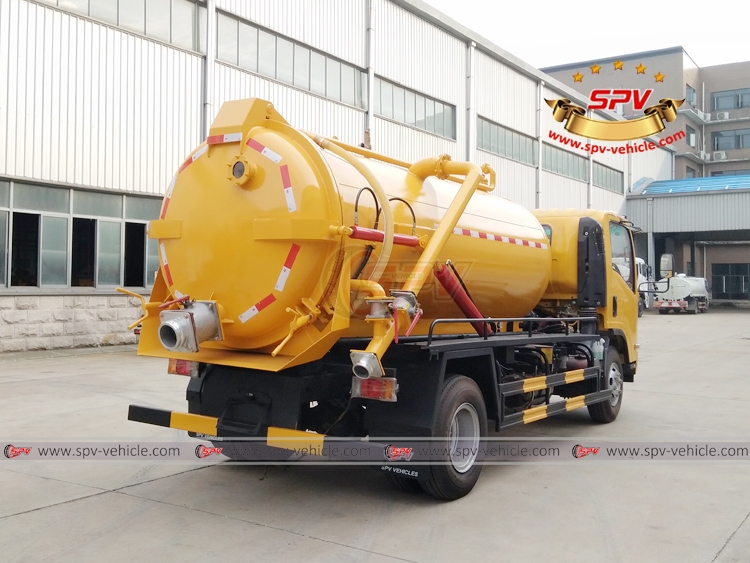

6,000 Litres Sewage Vacuum Truck ISUZU - RB
Right back view of sewage vacuum Truck ISUZU (6,000 litres)

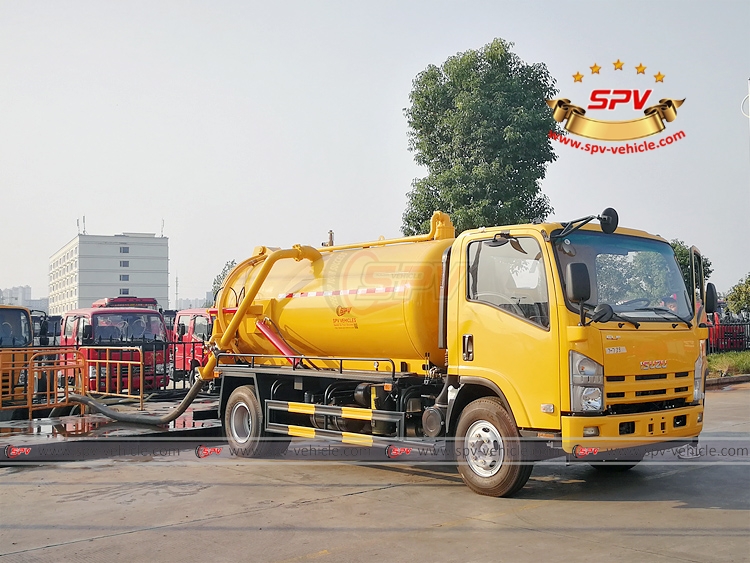

6,000 Litres Sewage Vacuum Truck ISUZU - Suction
 Sewage vacuum Truck ISUZU (6,000 litres) - Suction test

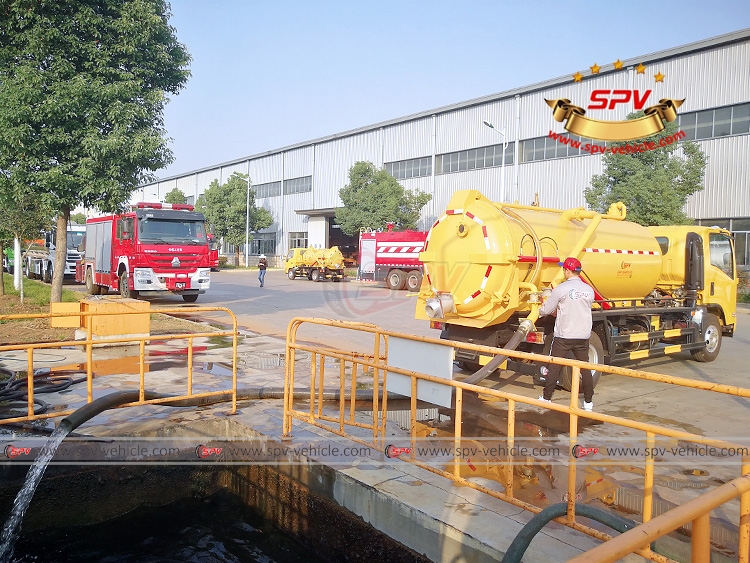

6,000 Litres Sewage Vacuum Truck ISUZU - Side Discharge Valve
Sewage vacuum Truck ISUZU (6,000 litres) - Discharging by side discharge valve

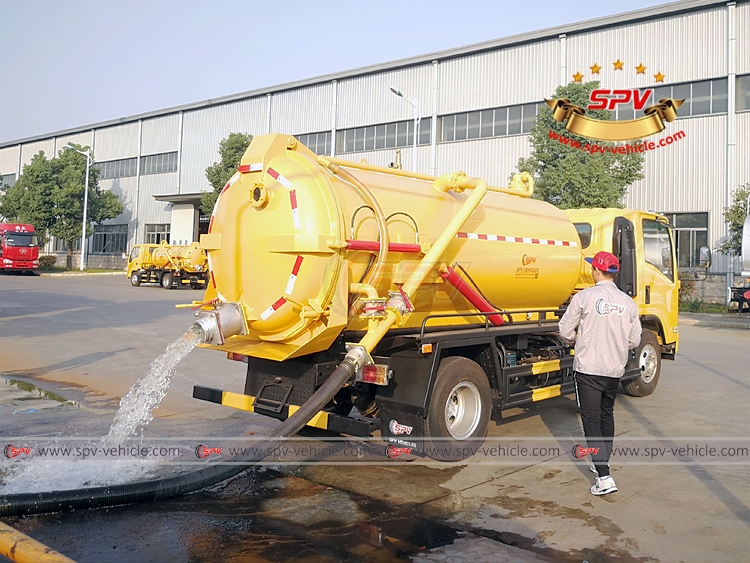

6,000 Litres Sewage Vacuum Truck ISUZU - Discharge Valve
Sewage vacuum Truck ISUZU (6,000 litres) - Discharging by rear discharge valve

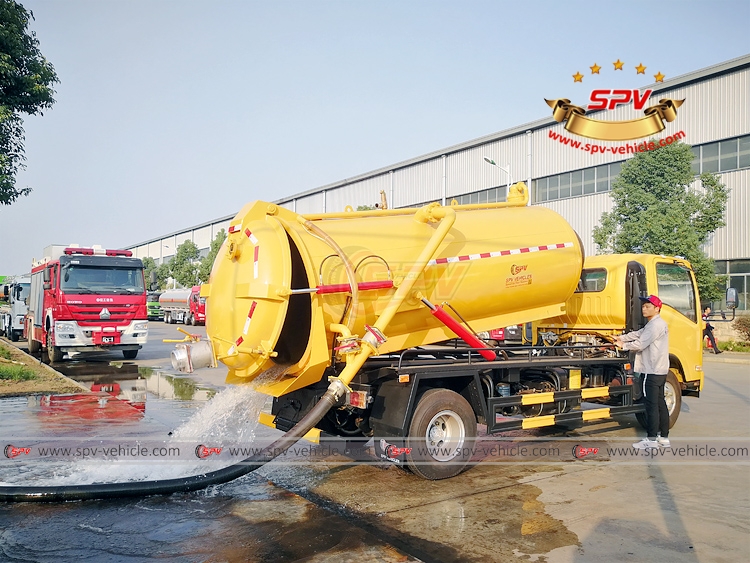

6,000 Litres Sewage Vacuum Truck ISUZU - Rear Door Open
Sewage vacuum Truck ISUZU (6,000 litres) - Rear door open to discharge sewage

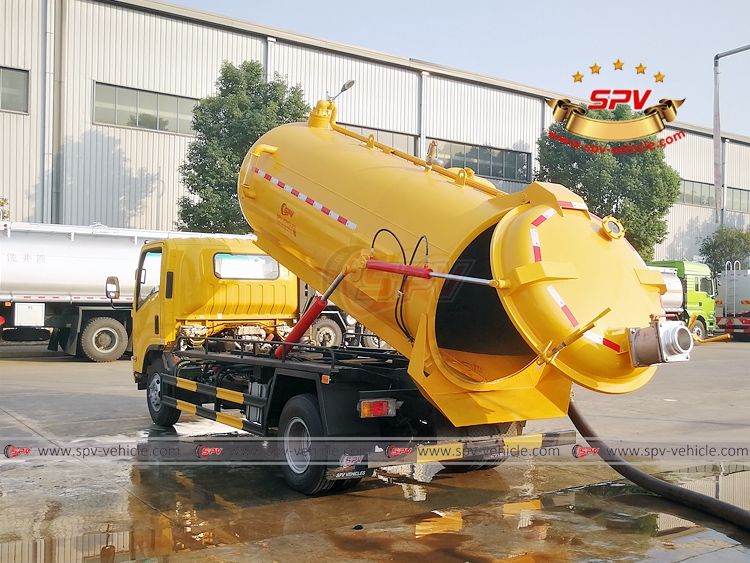

6,000 Litres Sewage Vacuum Truck ISUZU - Tank Lifting
Sewage vacuum Truck ISUZU (6,000 litres) - Lifting tank to discharge sewage

*** 6,000 litres Sewage Vacuum Truck - White color ***

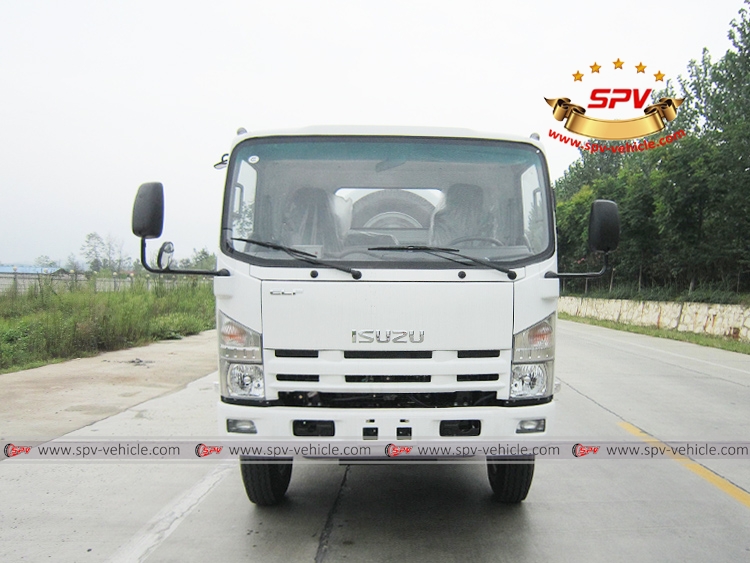

Sewage Vacuum TruckISUZU - F
Front view of sewage vacuum Truck ISUZU (6,000 litres)

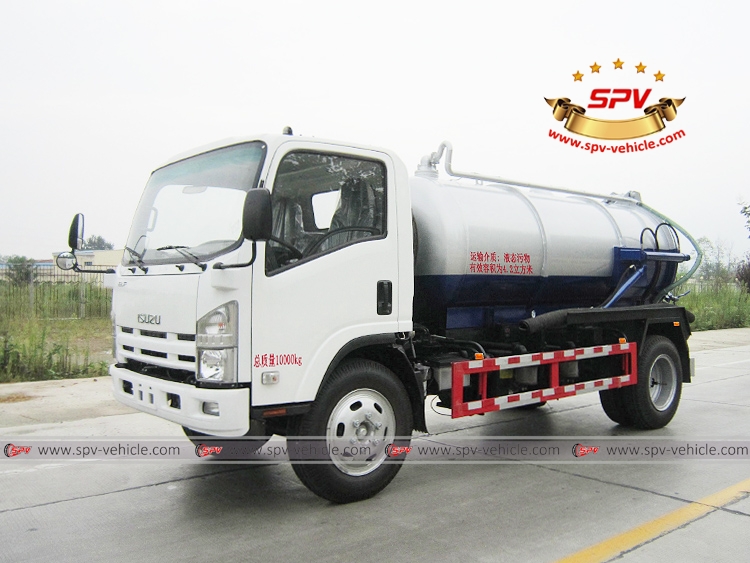

Sewage Vacuum TruckISUZU - LF
Left front view of sewage vacuum Truck ISUZU (6,000 litres)

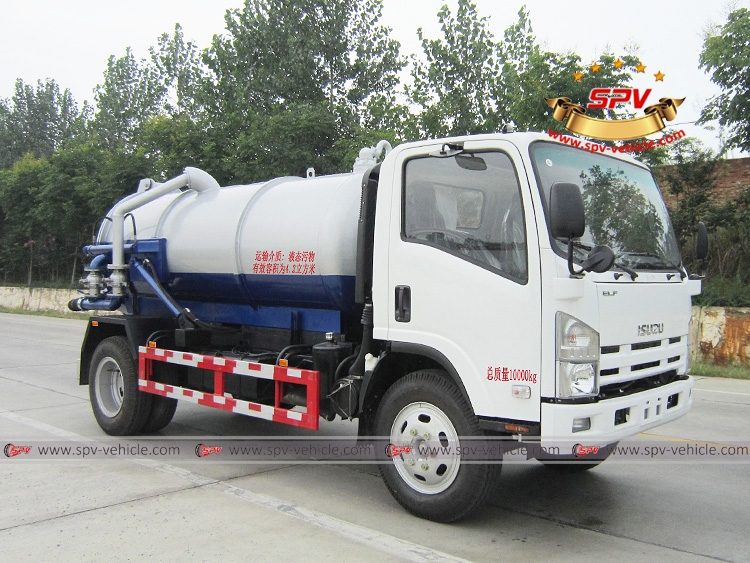

Sewage Vacuum TruckISUZU - RF
Right front view of sewage vacuum Truck ISUZU (6,000 litres)
