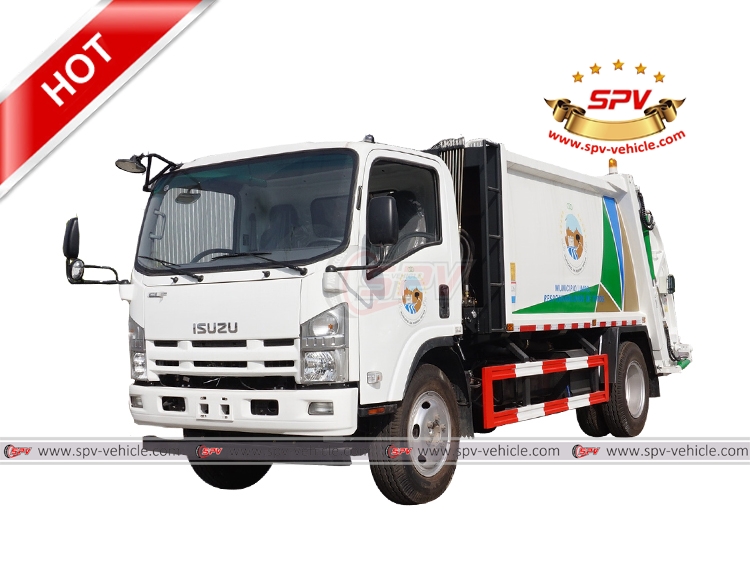

ISUZU 8 m³ Trash Compactor

Rubbish Truck ISUZU
8 m³ Trash Compactor
Rubbish Truck ISUZU

Function:
Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:
Similar Key Words:   waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry, garbage compactor vehicles, garbage compacting truck, refuse collector, waste compactor
Rubbish Truck ISUZU ( 8m³)
GeneralVehicle BrandSPV
Chassis BrandISUZU
Overall Dimension7350 * 2250 * 2870 mm
GVW / Kerb Weight10,000 kg / 6,800 kg
CabCab Capacity3 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU engine, 4HK1
Power190 Hp (139 KW)
Displacement5193 ml
Emission StandardEuro IV
ChassisDrive Type4X2, left hand drive
TransmissionISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle3815 mm / 2
Tyre Specification7.50-16
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureWaste Box Capacity8m³
Waste Box MaterialCarbon steel
All other standard accessories: Tool kit, English manual……
Optional **Various rear loading mechanism: container lifting; hopper flip; skip loader…
 **Electronic operating system

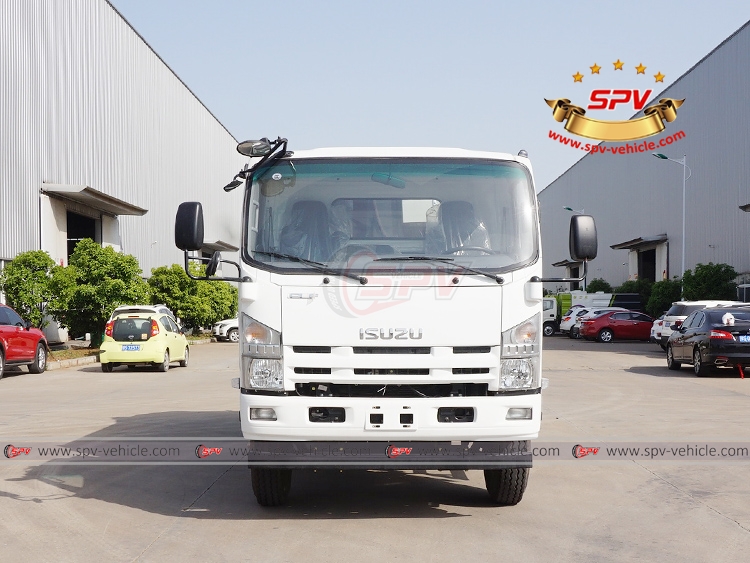

Rubbish Truck ISUZU - F
Photo 1: Front view of rubbish truck ISUZU(8 CBM)

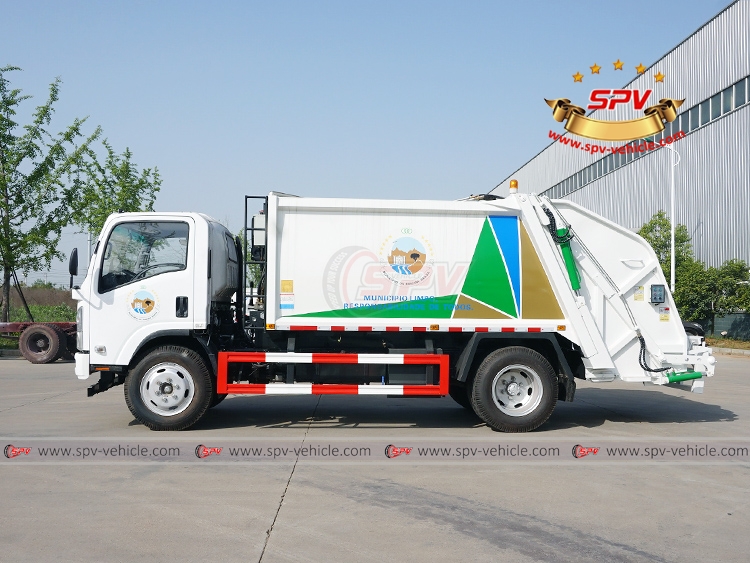

Rubbish Truck ISUZU - LS
Photo 2: Left side view of rubbish truck ISUZU(8 CBM)

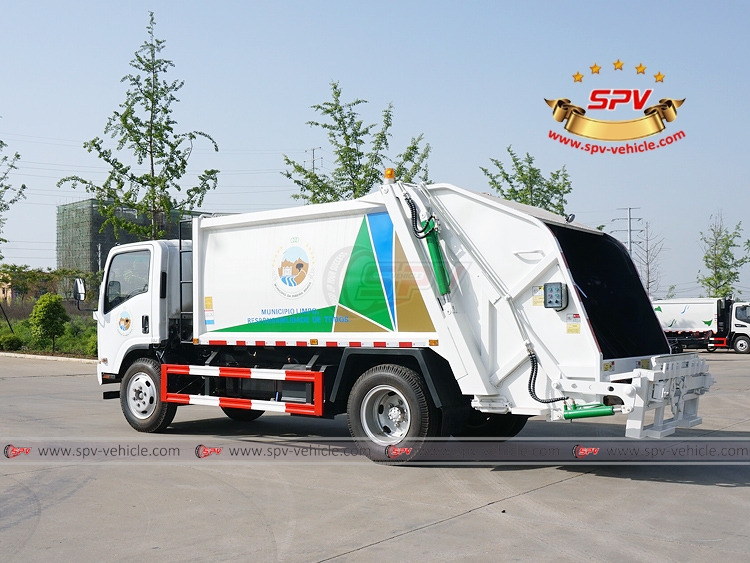

Rubbish Truck ISUZU - LB
Photo 3: Left back view of rubbish truck ISUZU(8 CBM)

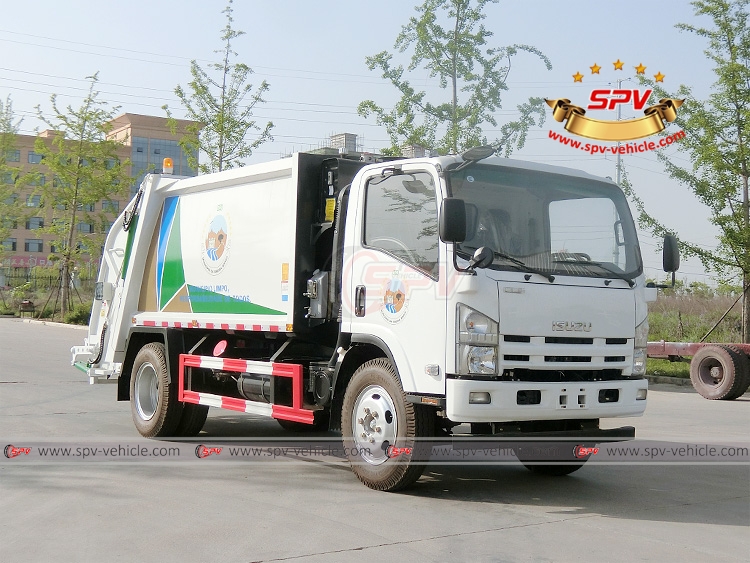

Rubbish Truck ISUZU - RF
Photo 4: Right front view of rubbish truck ISUZU(8 CBM)

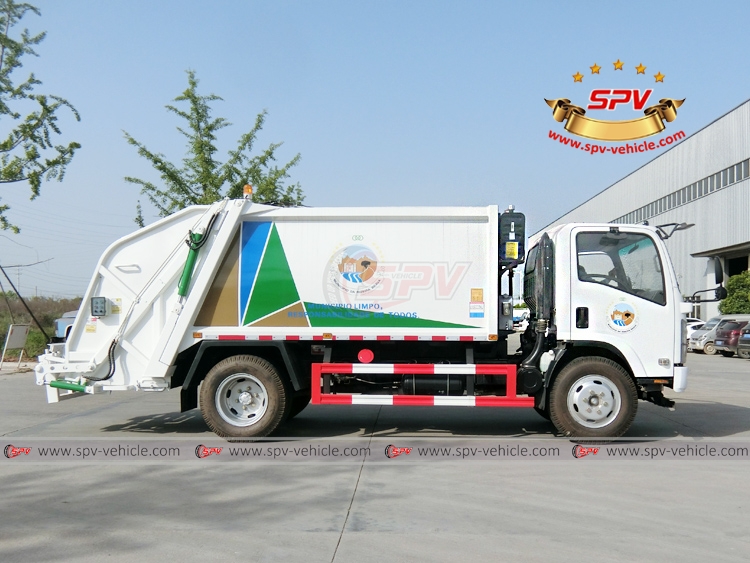

Rubbish Truck ISUZU - RS
Photo 5: Right side view of rubbish truck ISUZU(8 CBM)

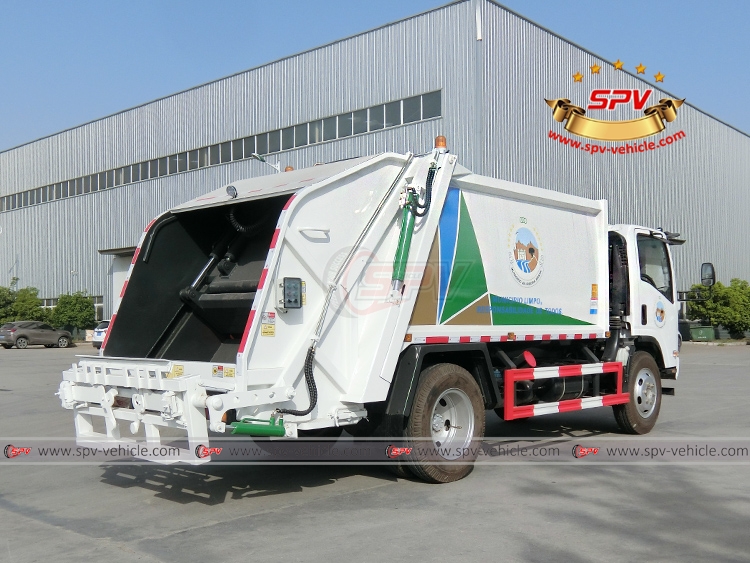

Rubbish Truck ISUZU - RB
Photo 6: Right back view of rubbish truck ISUZU(8 CBM)

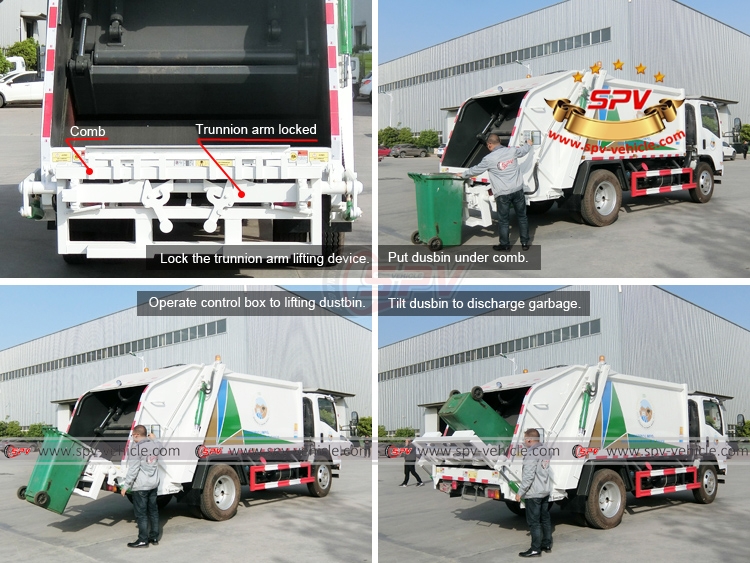

Rubbish Truck ISUZU - Comb Lifting
Photo 7: Rubbish truck ISUZU(8 CBM) - Lifting with comb lifting device

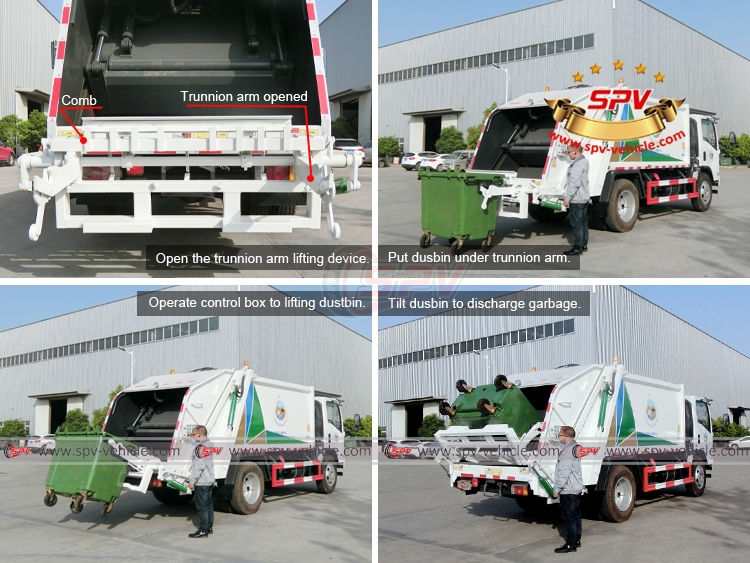

Rubbish Truck ISUZU - Trunnion Arm Lifing
Photo 8: Rubbish truck ISUZU(8 CBM) - Lifting with trunnion arm lifting device

Rubbish Truck ISUZU - Manual for chassis
Photo 9: Rubbish truck ISUZU(8 CBM) - English Chassis Manual

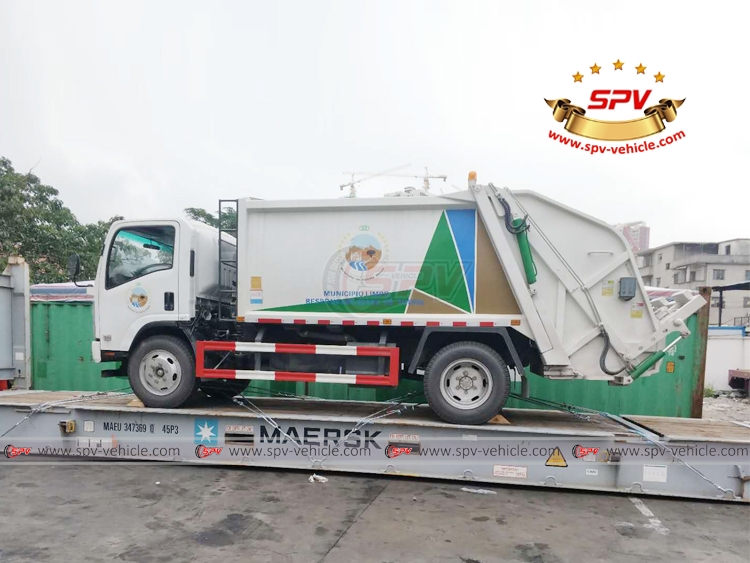

Rubbish Truck ISUZU - Shipping by Flat Rack
Photo 10: Rubbish truck ISUZU(8 CBM) - Shipping by flat rack

*** To Cape Verde - 2 units of Garbage Compactor Truck ISUZU(8 CBM) ***

Photo 11: Rubbish truck ISUZU(8 CBM) - 2 units - LF

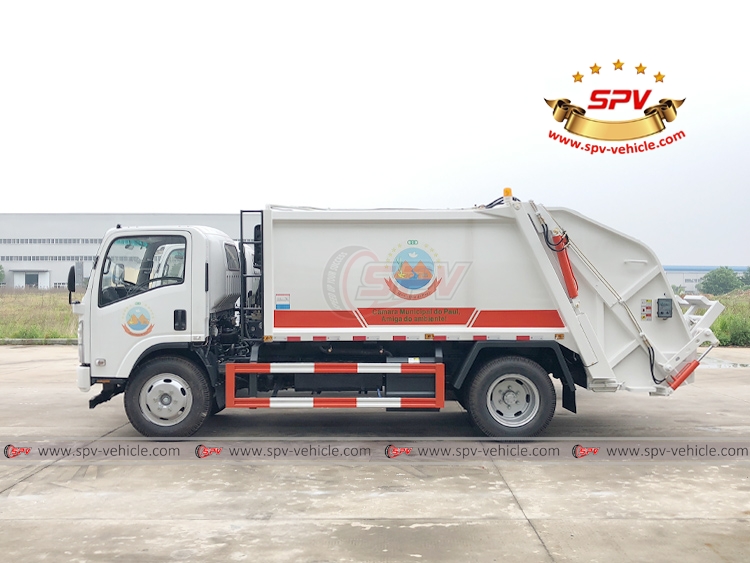

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - LS
Photo 12: Front view of rubbish truck ISUZU(8 CBM)

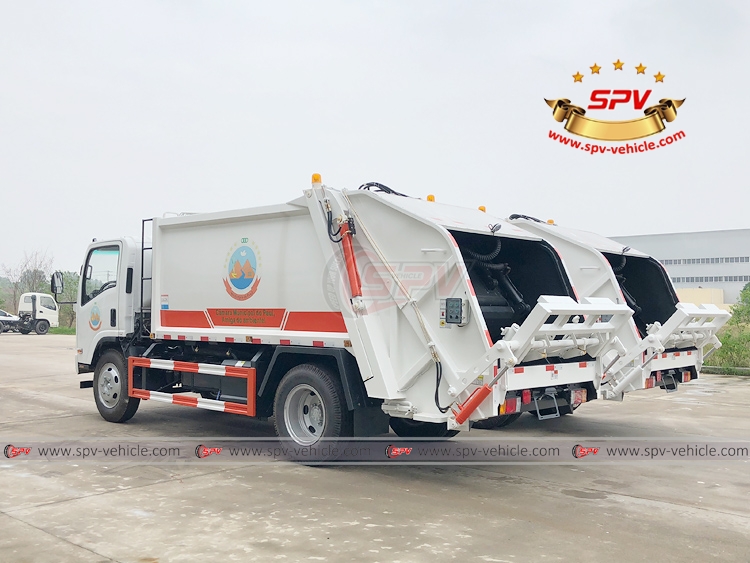

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - LB
Photo 13: Left side view of rubbish truck ISUZU(8 CBM)

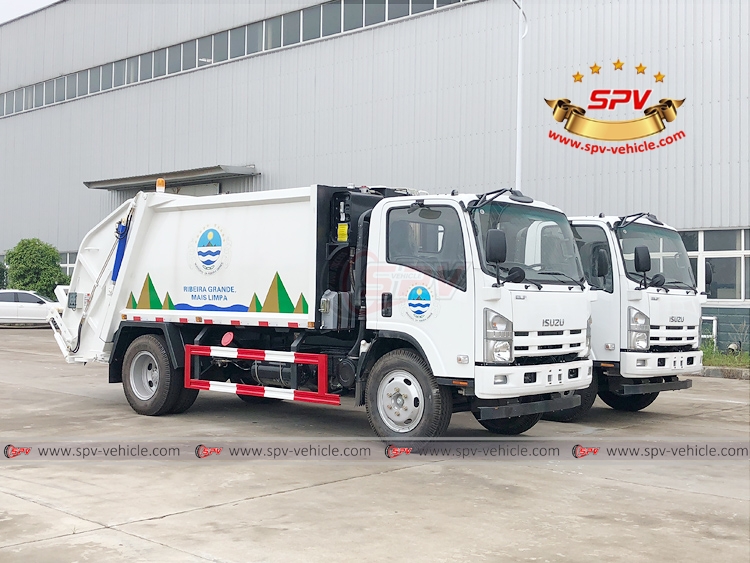

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - RF
Photo 14: Left back view of rubbish truck ISUZU(8 CBM)

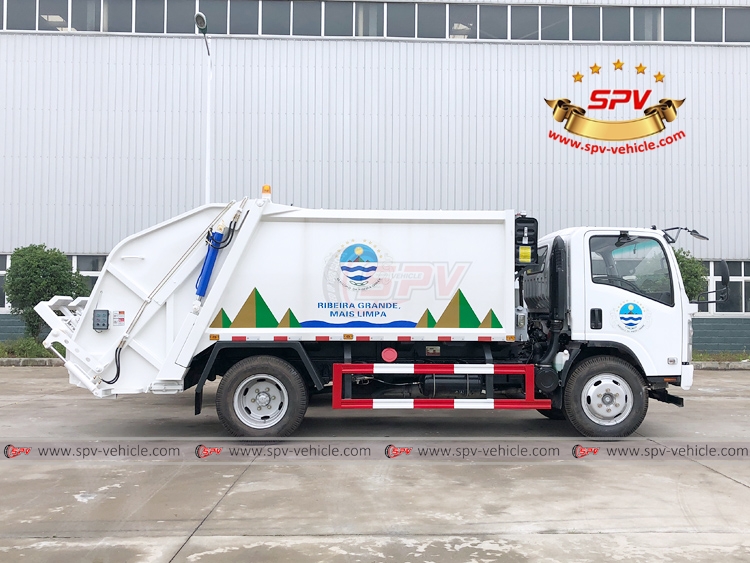

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - RS
Photo 15: Right front view of rubbish truck ISUZU(8 CBM)

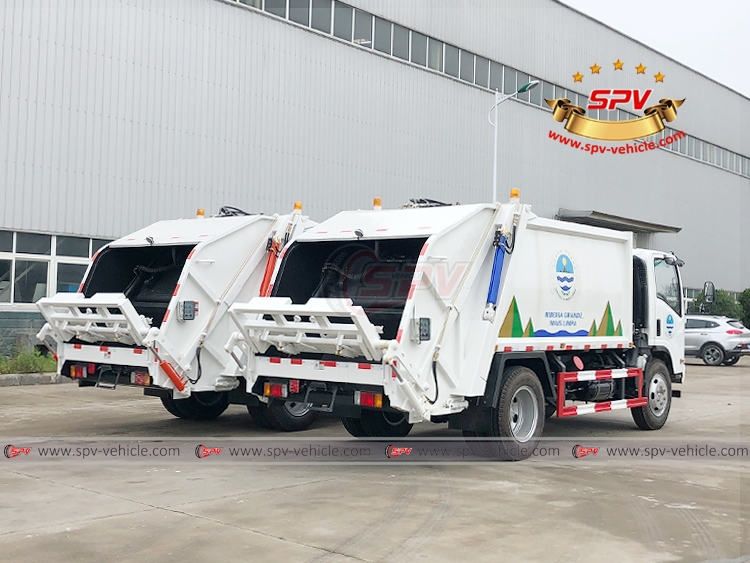

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - RB
Photo 16: Right side view of rubbish truck ISUZU(8 CBM)

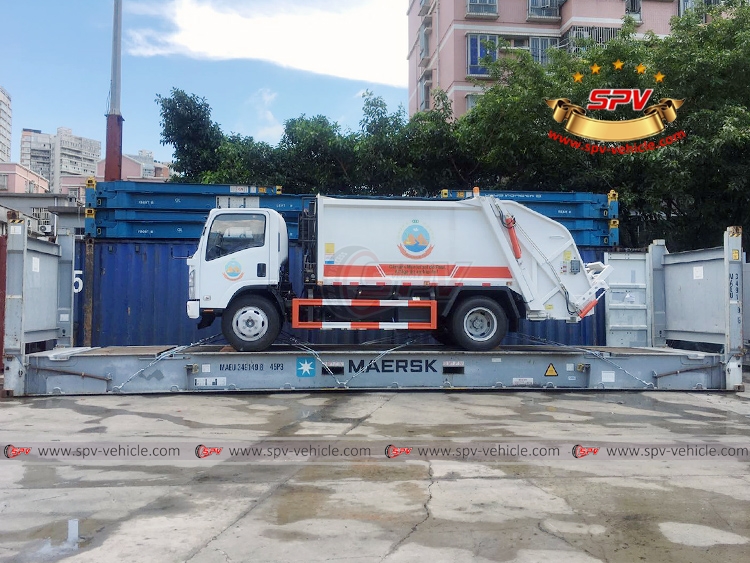

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - Loading 01
Photo 17: Rubbish truck ISUZU(8 CBM) - Shipping by flat rack

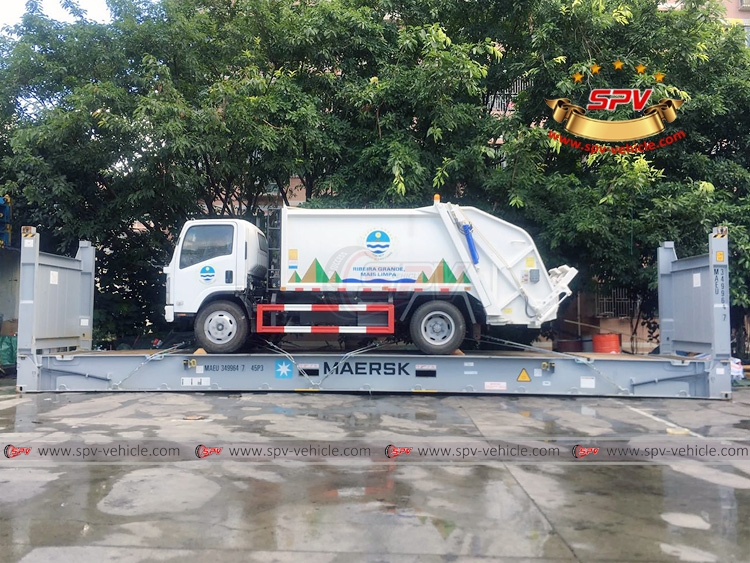

To Cape Verde - 2 units of Garbage Compctor Truck ISUZU - Loading 02
Photo 18: Rubbish truck ISUZU(8 CBM) - Shipping by flat rack
