ISUZU 8,000 L Septic Suction Truck

Sewer Vacuum Truck ISUZU

8,000 L Septic Suction Truck

•

Function:

Sewer Vaucum truck (also called septic suction truck, sewage vacuum tank truck, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

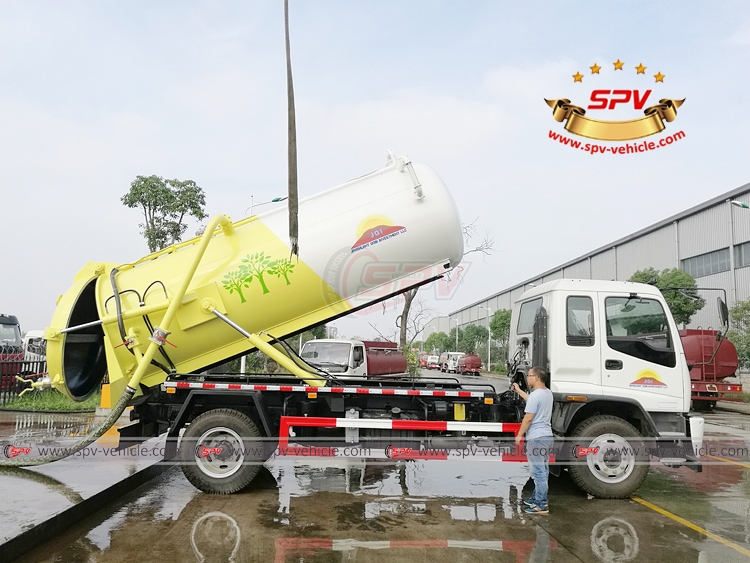

The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.

Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.

Specification:

Sewer Vacuum Truck ISUZU (8,000 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	7850 * 2470 * 3200 mm
	GVW / Kerb Weight	14,000 kg / 8,048 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	190 Ps (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU gear box, no overhaul within 500,000km
	Wheelbase/No. of axle	4500 mm / 2
	Tyre Specification	9.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Tank Capacity	8,000 - 10,000 Litres
	Tank Material	Carbon steel
	Suction Head	7m
	Vacuum Pump	Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
	Hose	High quality, wire strengthened hose
	Rear door can be hydraulic opened for complete discharge of solid stuff.
	All standard accessories: inlet, discharge, antifill valve……..
Optional	** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand……

Photo 1: Right front view of ISUZU Sewer Vacuum Truck (8,000 Litres)


Photo 2: Right side view of ISUZU Sewer Vacuum Truck (8,000 Litres)


Photo 3: Right back view of ISUZU Sewer Vacuum Truck (8,000 Litres)


Photo 4: Left side view of ISUZU Sewer Vacuum Truck (8,000 Litres)

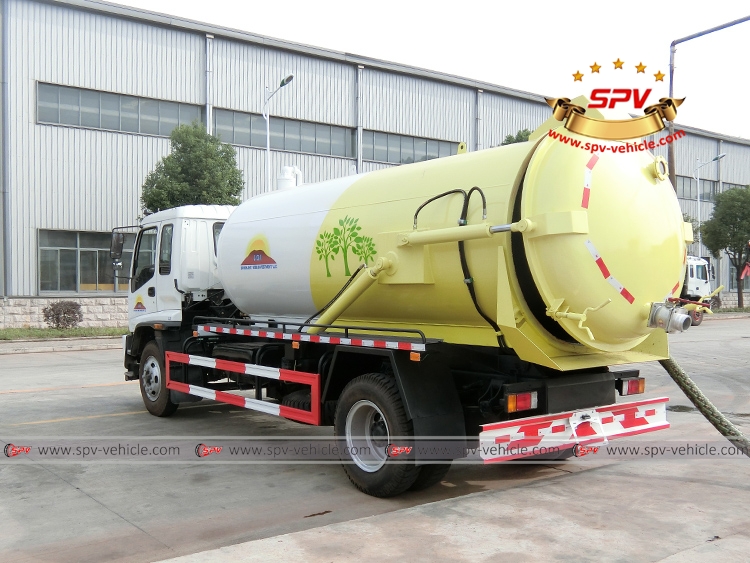

Photo 5: Left back view of ISUZU Sewer Vacuum Truck (8,000 Litres)

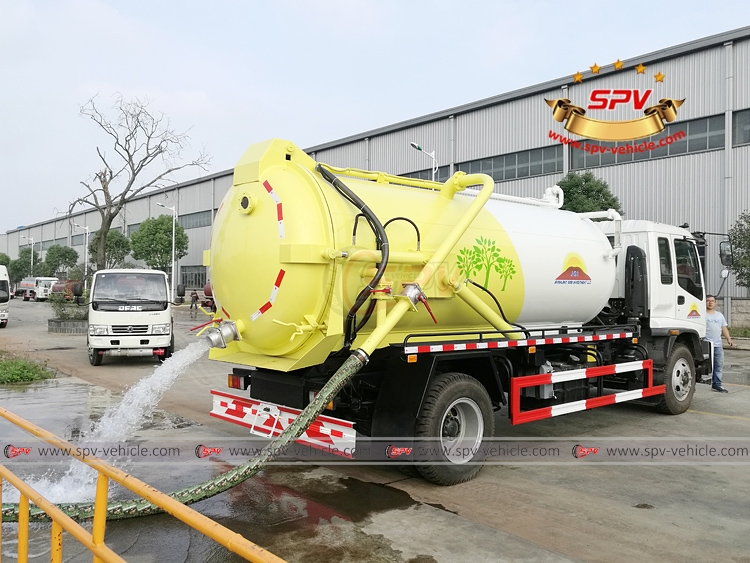

Photo 6: Discharging photo of sewage vacuum truck ISUZU(8,000 Litres)


Photo 7: Discharging photo of sewage vacuum truck ISUZU(8,000 Litres)

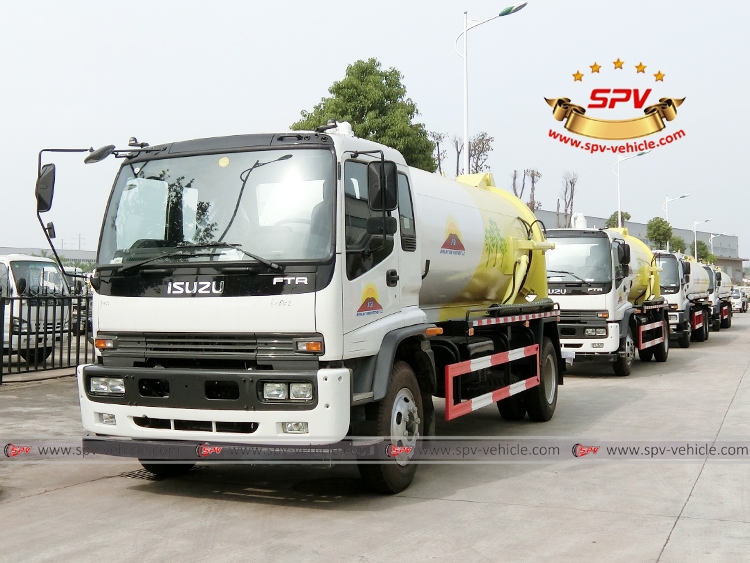

Photo 8: To Mogonia - 2 units of ISUZU Sewer Vacuum Trucks(10,000 Litres)


Photo 9: To Mongonia - 2 units of ISUZU Sewer Vacuum Trucks(10,000 Litres)
