ISUZU FTR 4 m³ Water Tank and 2m³ Foam Tank

三月 25, 2019

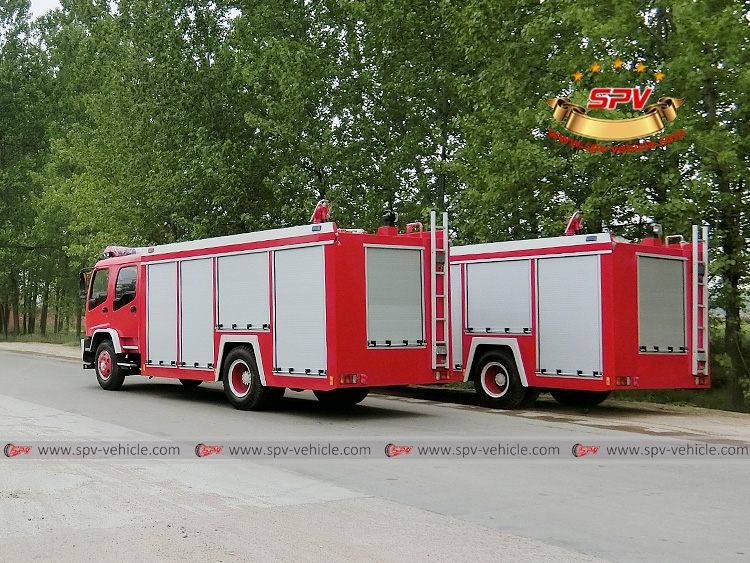

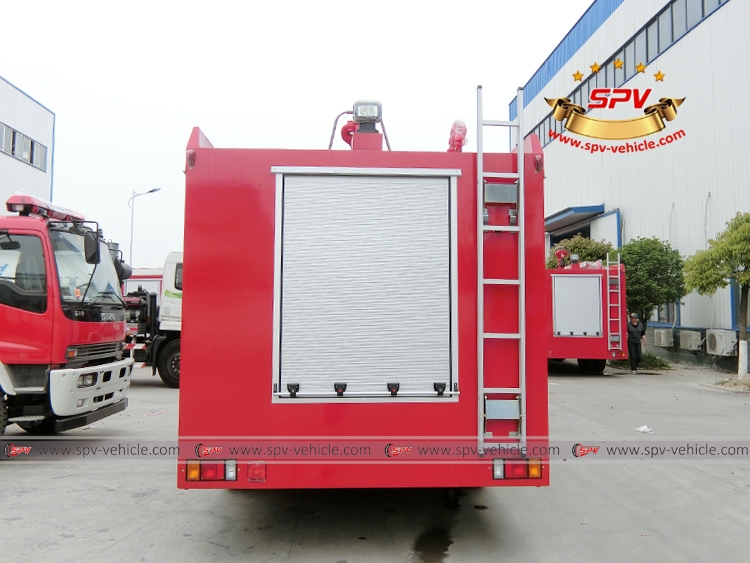

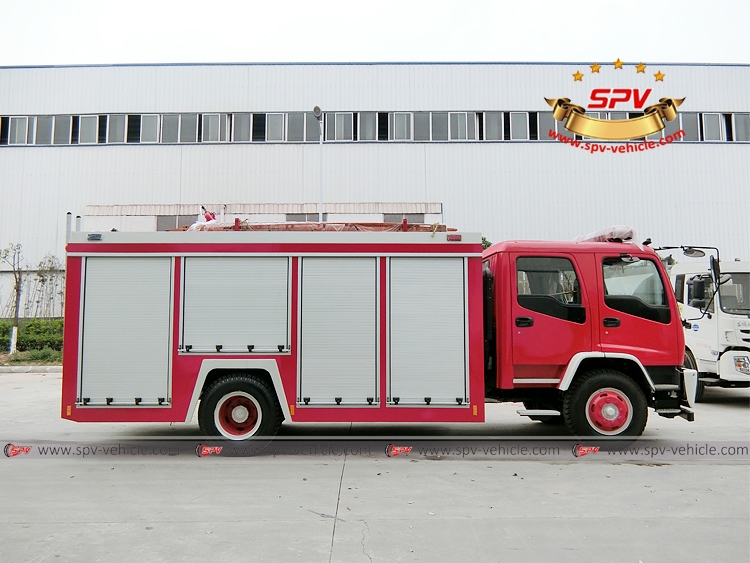

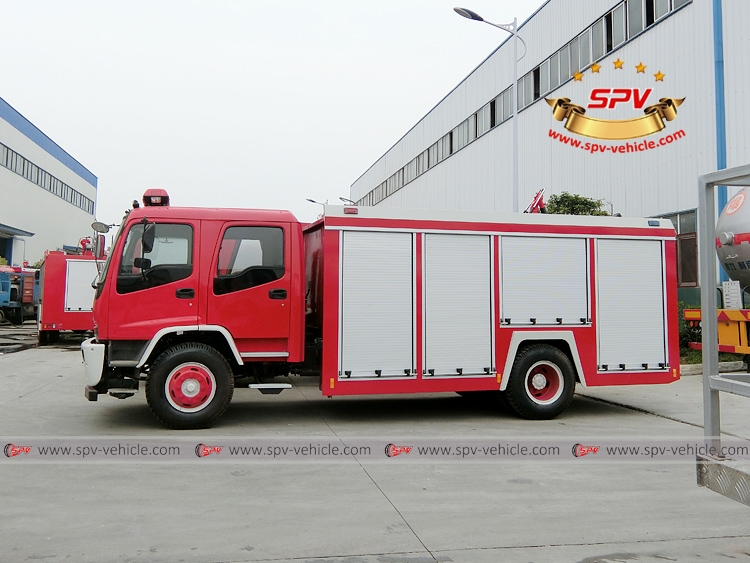

Fire Fighting Truck ISUZU FTR

4 m³ Water Tank and 2m³ Foam Tank

Function:

Fire fighting truck (also called fire fighting engine, multifunction fire vehicle, fire fighting equipment, fire fighting foam tanker, foam fire truck, fire-extinguishing foam tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- ISUZU FTR chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- 6,000 Litres fire truck carries 4,000 litres water tank and 2,000 litres foam tank

Specification:

Fire Fighting Truck ISUZU (6,000 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU · FTR
	Overall Dimension	8430 * 2500 * 3660 mm
	GVW / Kerb Weight	14,950kg / 8,400kg
Cab	Cab Capacity	2+4 persons allowed
Cab	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine, 4HK1-TCG40
	Power	190 Ps (139 KW)
	Displacement	5193 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU MLD gear box, 6-speed forward, 1 reverse
	Wheelbase/No. of axle	4700 mm / 2
	Tyre Specification	10.00-20
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	85 km/h
	Paint	Metallic paint
Superstructure	Water Capacity	4,000 Litres (About 1,050 gallons)
	Foam Capacity	2,000 Litres (About 500 gallons)
	Tank Material	Carbon steel
	Fire Pump	40 L/s ( Pressure: 1.0 M Pa)
	Flow Speed	32 L/s ( Pressure: 1.0 M Pa)
	Shot	Water ≥ 50 m & Foam ≥ 45 m
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include ladders, pike poles, axes and cutting equipment, halligan bars, ventilating equipment, floodlights, hose ramps, self-contained breathing apparatus and general tools.…
Optional	Ladders, floodlights...
