IVECO 20,000 Litres Petrol Fuel Tank

Fuel Tanker Truck IVECO
20,000 Litres Petrol Fuel Tank
Fuel Tanker Truck IVECO

Function:
Fuel tanker truck (also called petrol fuel tank, oil tank truck, fuel dispenser, diesel mobile tanker, petrol bowser, crude oil tanker, fuel transfer tanker, aircraft refueling truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Features:
---- IVECO chassis, perfect performance.
---- CURSOR engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
Specification:

Fuel Tanker Truck IVECO ( 20,000 Litres )
GeneralVehicle BrandSPV
Chassis BrandIVECO
Overall Dimension9900 * 2500 * 3350 mm
GVW / Kerb Weight25,000 kg / 10,530 kg
CabCab Capacity2 persons seats with 1 sleeper
Air ConditionerEquipped
EngineFuel TypeDiesel
Engine BrandIVECO CURSOR engine
Power380 Ps (280 KW)
Displacement8709 ml
Emission StandardEuro III
ChassisDrive Type6X4, left or right hand drive
Transmission12 - speed forward, 1 reverse
Wheelbase/No. of axle4325+1350 mm / 3
Tyre Specification12.00R20
Tyre Number10 tyres and 1 spare tyre
Max Speed80 km/h
PaintMetallic paint
SuperstructureTank Capacity20,000 Litres ( About 5,300 gallons)
Tank MaterialCarbon steel
PumpFuel pump equipped for overhead delivery
Suction Head6 m
HoseHigh quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

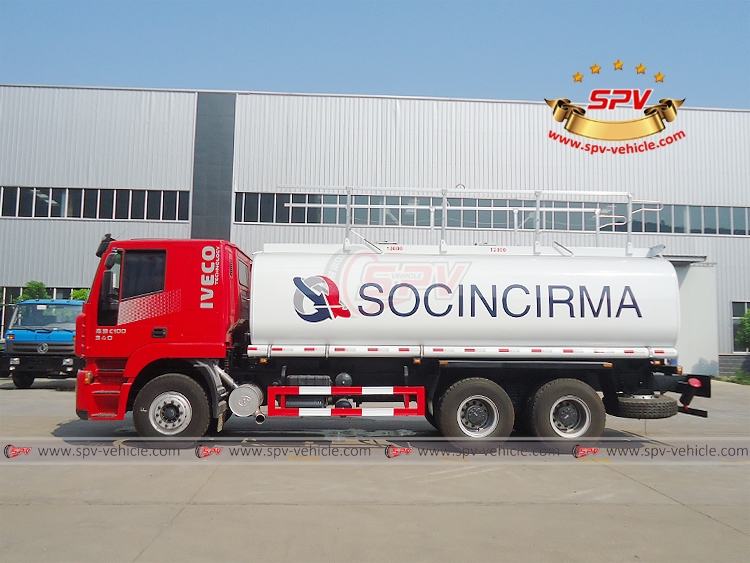

20,000 litres Fuel Tanker Truck IVECO - LS
Left side view of 20,000 litres Fuel Tanker Truck IVECO

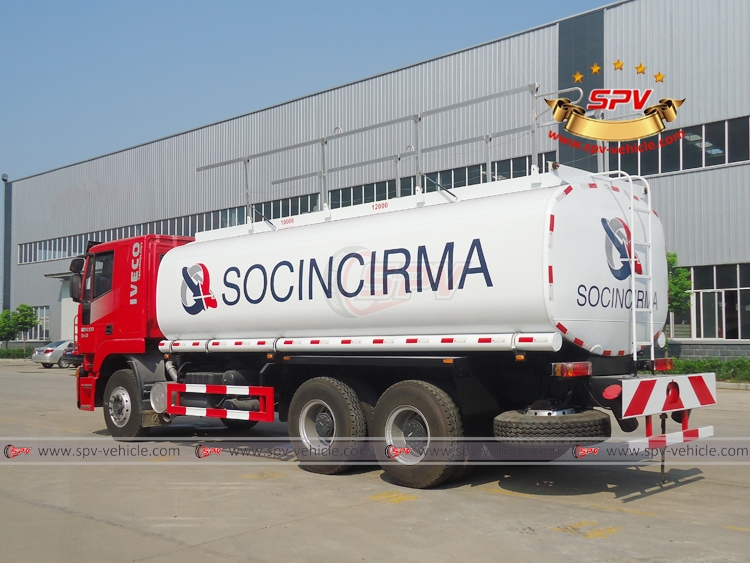

20,000 litres Fuel Tanker Truck IVECO - LB
Left back view of 20,000 litres Fuel Tanker Truck IVECO

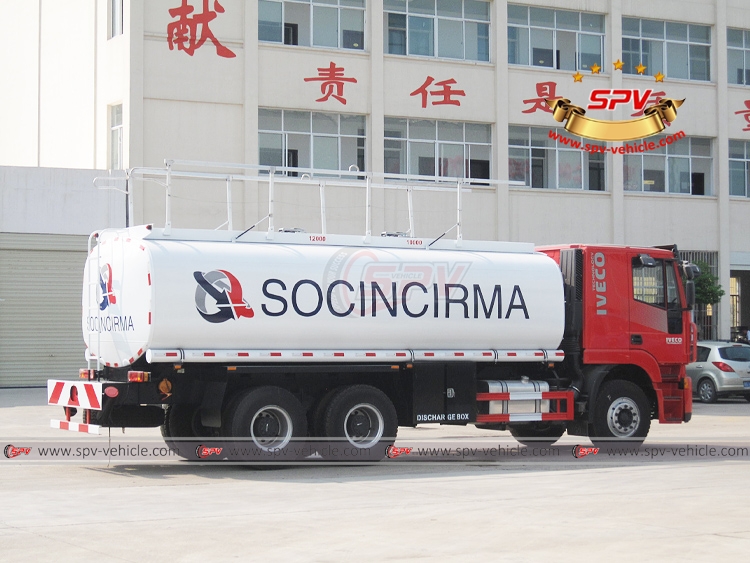

20,000 litres Fuel Tanker Truck IVECO - RS
Right Side view of 20,000 litres Fuel Tanker Truck IVECO

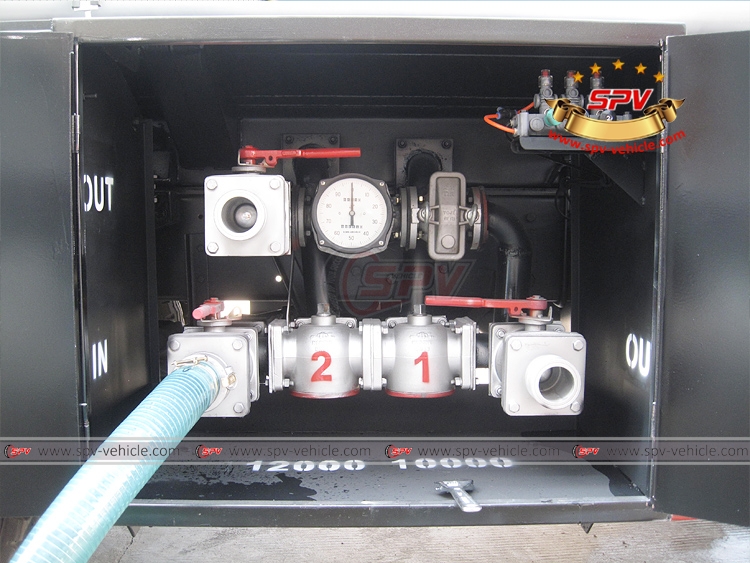

20,000 litres Fuel Tank Truck IVECO - Pump Box
Discharge Box detail view of 20,000 litres Fuel Tanker Truck IVECO

*** To Angola in 2015 - 20,000 litres Fuel Tanker Truck IVECO ***

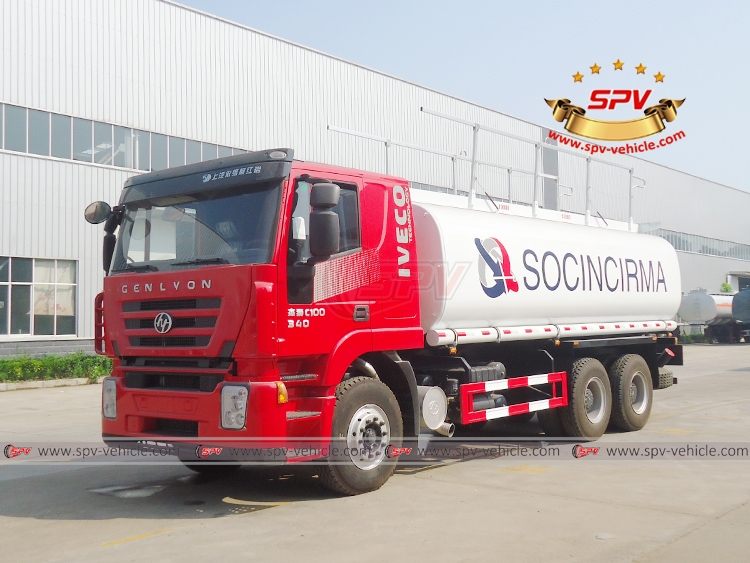

20,000 litres Fuel Tanker Truck IVECO - LF

*** To Djibouti in 2018 - 20,000 litres Fuel Tanker Truck IVECO ***

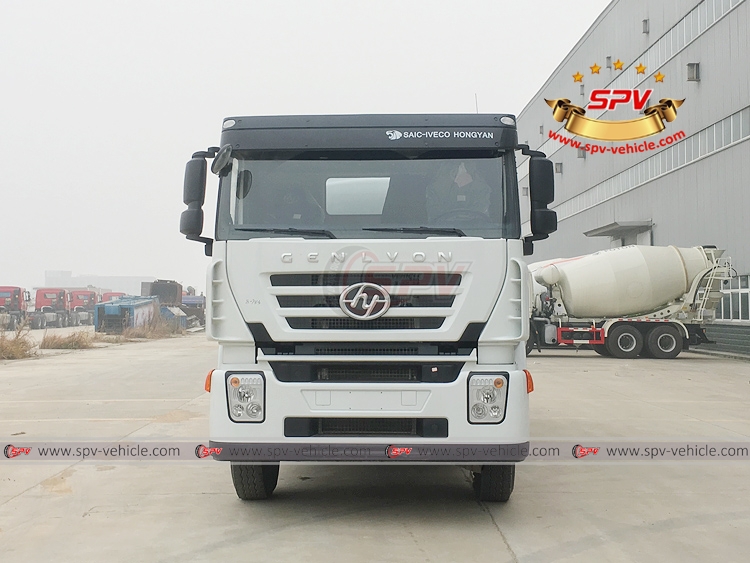

20,000 litres Fuel Tank Truck IVECO - F
Front view of 20,000 litres Fuel Tanker Truck IVECO

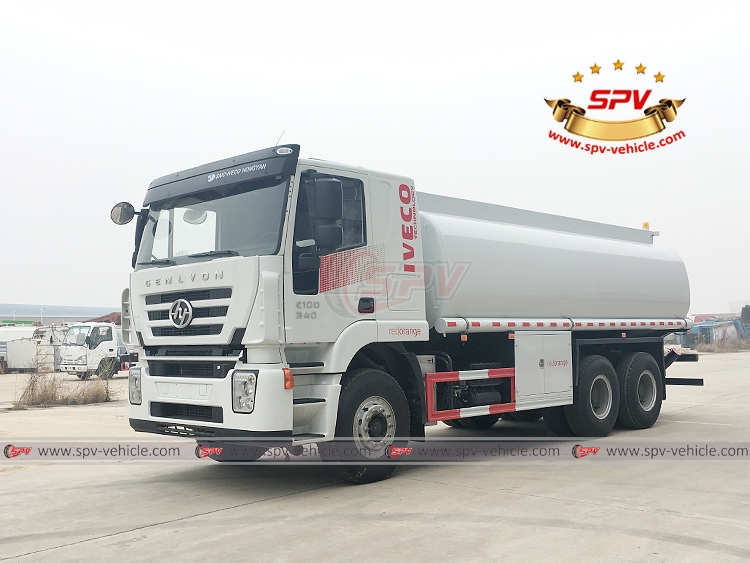

20,000 litres Fuel Tank Truck IVECO - LF
Left front view of 20,000 litres Fuel Tanker Truck IVECO

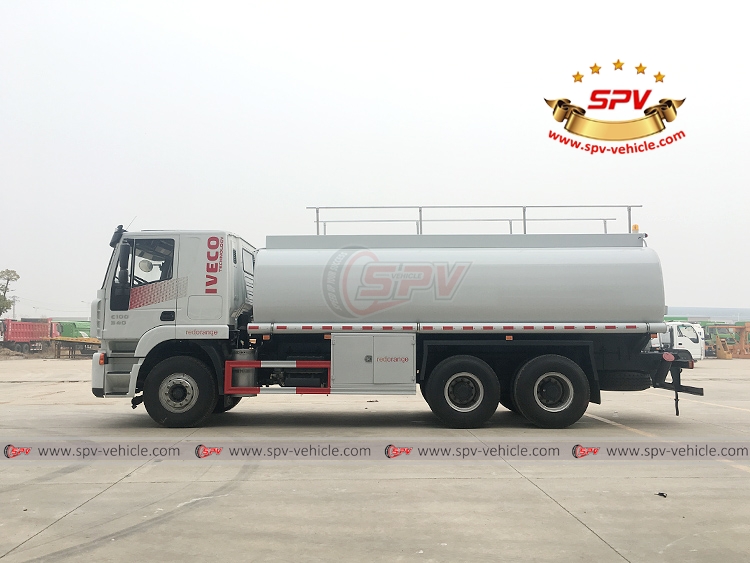

20,000 litres Fuel Tank Truck IVECO - LS
Left side view of 20,000 litres Fuel Tanker Truck IVECO - with hdnadrail lifted

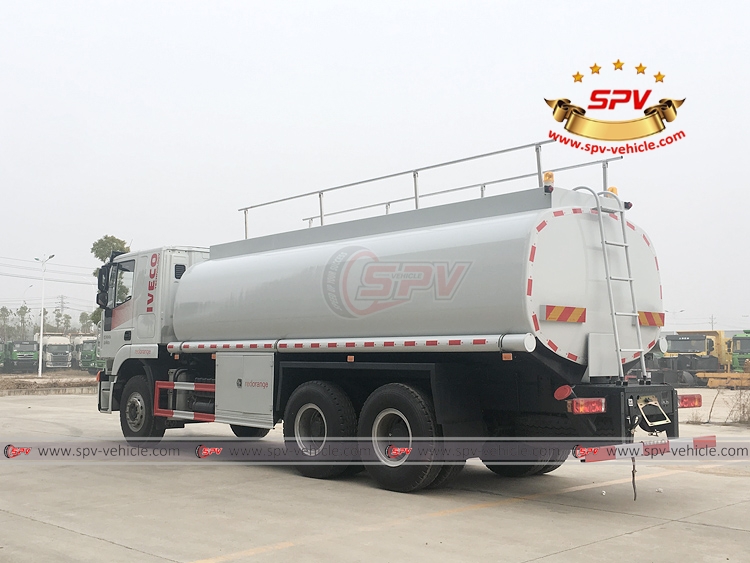

20,000 litres Fuel Tank Truck IVECO - LB
Left back view of 20,000 litres Fuel Tanker Truck IVECO - with hdnadrail lifted

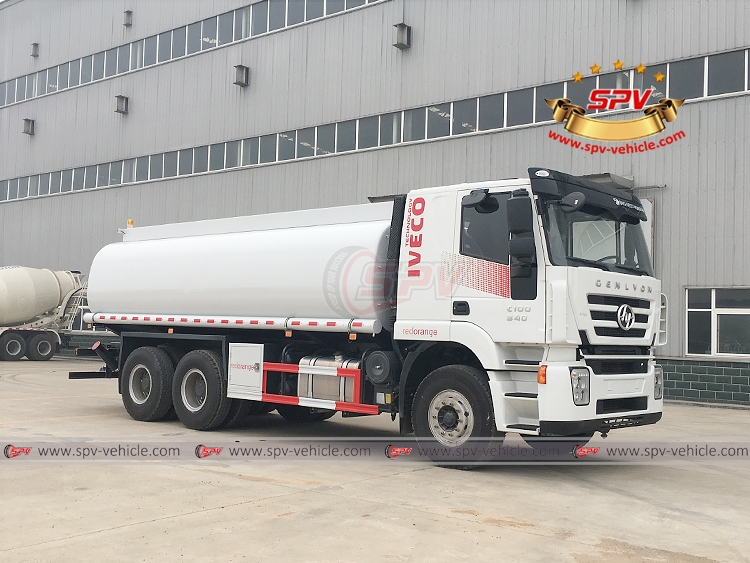

20,000 litres Fuel Tank Truck IVECO - RF
Right front view of 20,000 litres Fuel Tanker Truck IVECO

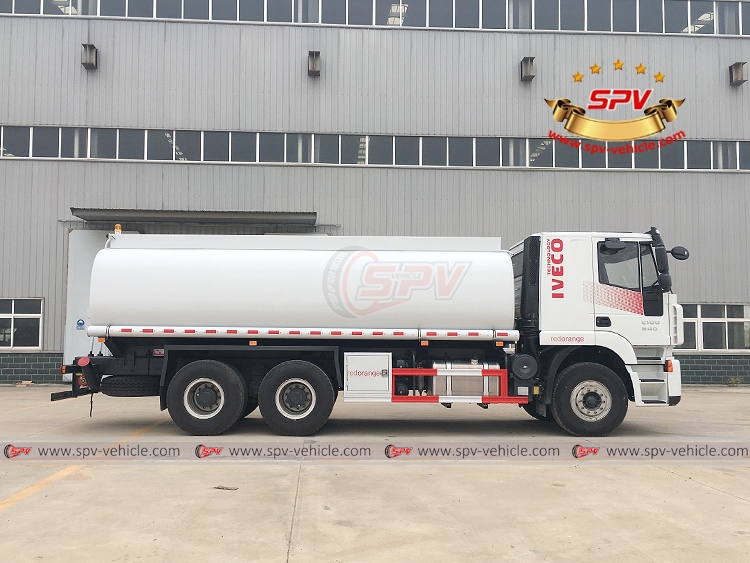

20,000 litres Fuel Tank Truck IVECO - RS
Right side view of 20,000 litres Fuel Tanker Truck IVECO

20,000 litres Fuel Tank Truck IVECO - RB
Right back view of 20,000 litres Fuel Tanker Truck IVECO - with hdnadrail lifted

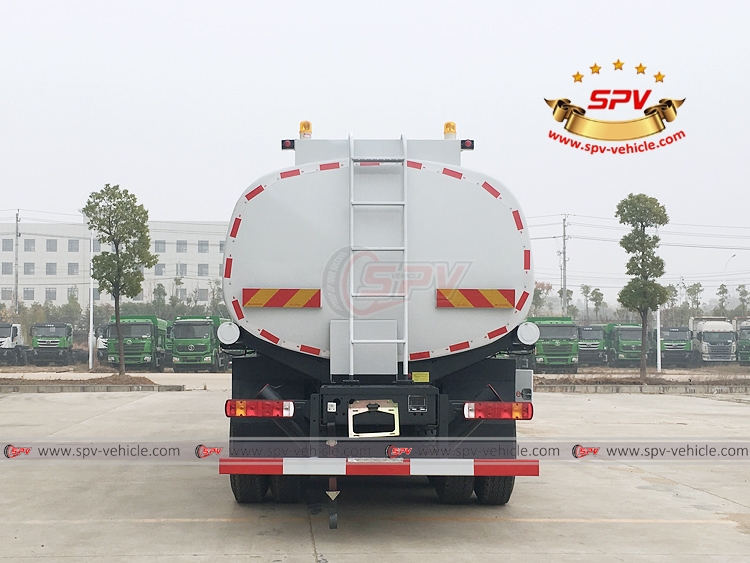

20,000 litres Fuel Tank Truck IVECO - B
Back view of 20,000 litres Fuel Tanker Truck IVECO

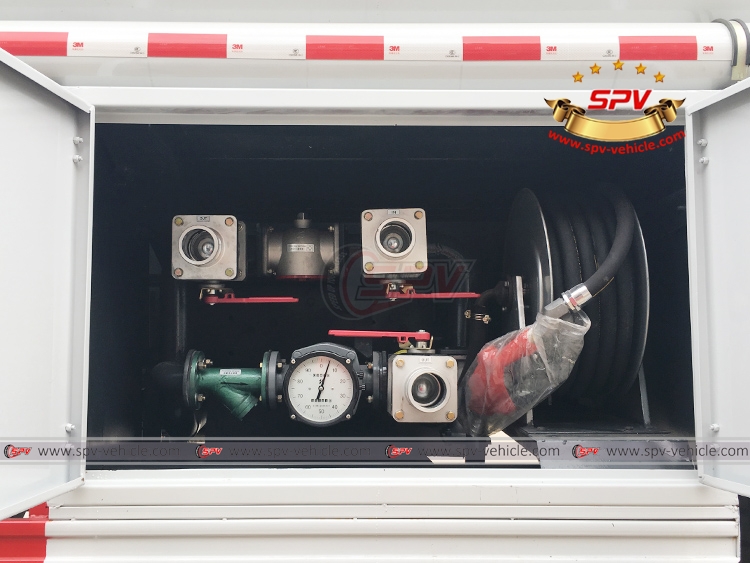

20,000 litres Fuel Tank Truck IVECO - Discharge Box
Discharge box of 20,000 litres Fuel Tanker Truck IVECO
