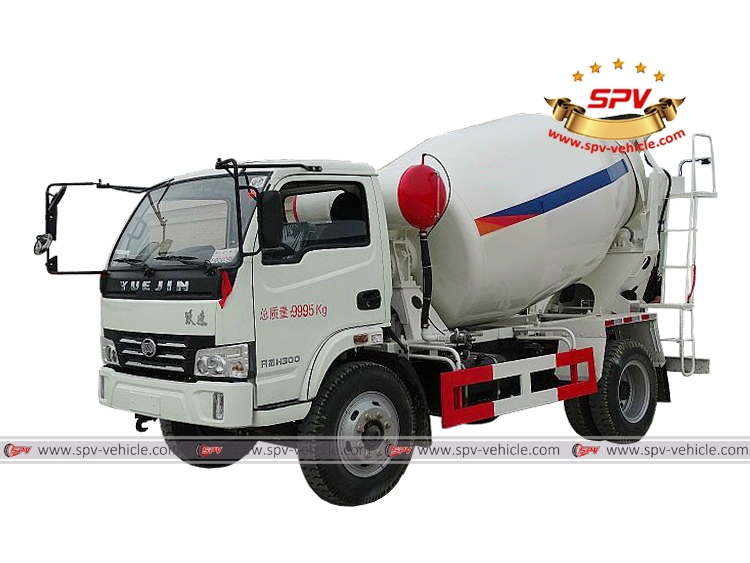

IVECO (YUEJIN) 3 m³ Mixer Truck

Construction Vehicle IVECO (YUEJIN)
3 m³ Mixer Truck
Construction Vehicle IVECO (YUEJIN)

Function:
Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.
Features:
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts,  massive, durable, perfect performance
---- Prolonged service life
Specification:
Similar Keywords:  transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
Construction Vehicle IVECO-YUEJIN (3 CBM)
GeneralVehicle BrandSPV
Chassis BrandIVECO (YUEJIN)
Overall Dimension5995 * 2200 * 3380 mm
GVW / Kerb Weight9,995 kg / 4,900 kg
CabCab Capacity3 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandYuchai engine
Power130 Hp (97 KW)
Displacement3922 ml
Emission StandardEuro III
ChassisDrive Type4X2, left or right hand drive
Transmission5-speed front, 1 reverse
Wheelbase/No. of axle 3300mm / 2
Tyre Specification8.25R20
Tyre Number6 tyres and 1 spare tyre
Max Speed80 km/h
PaintMetallic paint
SuperstructureMixing Capacity3 m³
Drum MaterialAlloy steel
Hydraulic MotorImported Brand
HydraulicPumpImported Brand
Reduction BoxImported Brand
RadiatorHigh Class Chinese Brand
Rest Rate≤0.5%
Water Supply SystemAir pressure
Water Tank Volume L
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.

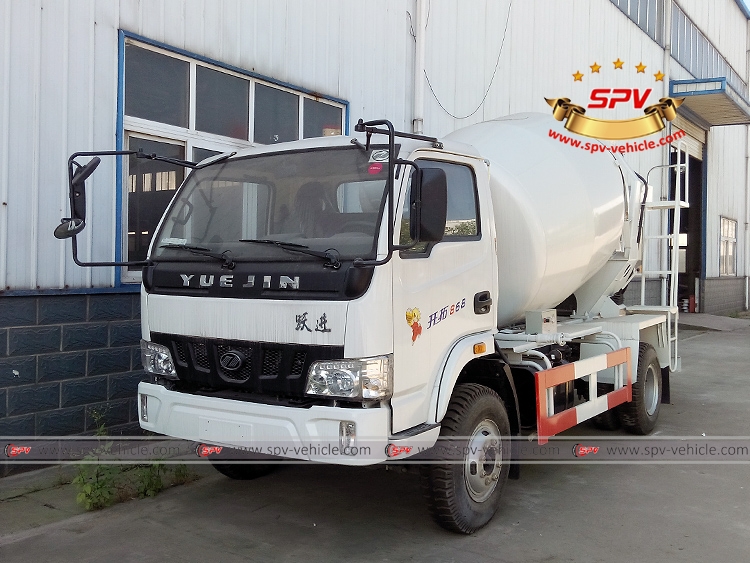

Construction Vehicle IVECO(Yuejin)-LF
Photo 1: Left front view of Construction Vehicle IVECO- Yuejin

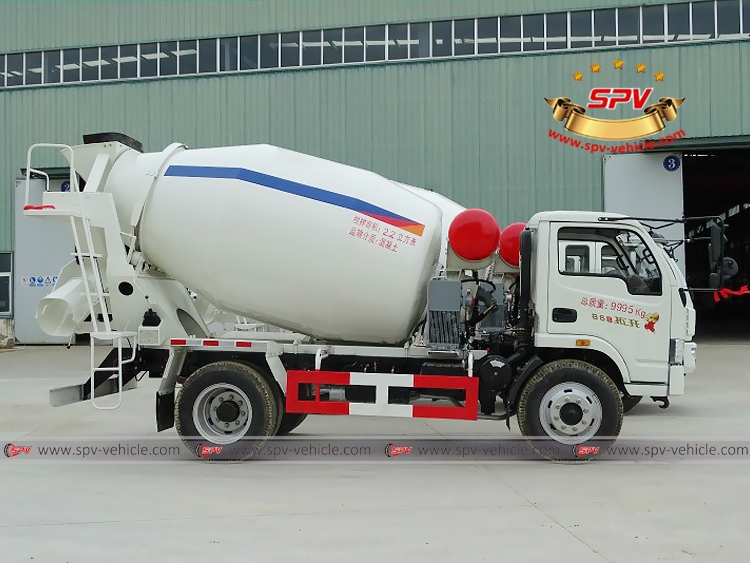

Construction Vehicle IVECO(Yuejin)-RS
Photo 2: Right side view of Construction Vehicle IVECO- Yuejin

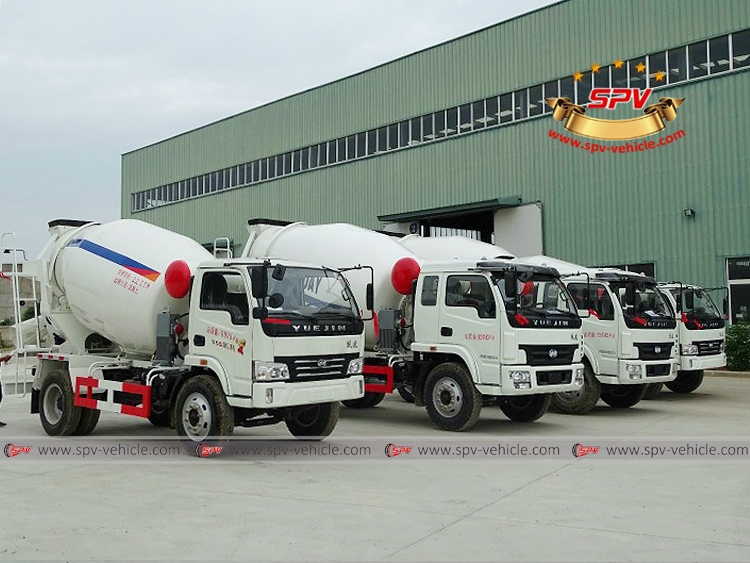

Construction Vehicle IVECO(Yuejin)-RF
Photo 3: Right front view of Construction Vehicle IVECO- Yuejin
