JAC 4,000 Litres Water Tank trick

Water Truck JAC
4,000 Litres Water Tank
Water Truck JAC

Function:

Water truck(also called water bowser, water tank, water tanker truck, water lorry, water wagon, water delivery truck, water tank vehicle, water camion, truck mounted water tank, Camión cisterna) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.

With non-toxic treatment inside tank or tank made of stainless steel, the water truck can be suitable for transporting drinking water, called as drinking water tanker, clean water lorry, potable water tank, stainless steel water tanker, agua potavel,safe to human body.

Water truck can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, plants irrigation, emergent firefighting etc, called as watering truck, water sprinkler, water spray truck.

With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water truck can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Features:
---- JAC chassis, perfect performance
---- JAC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump(driven by PTO), super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
Similar Key Words: bulk water delivery, water tank vehicle, stainless water tank, water cart vehicle, water tanker bowser, water truck tank
Water Truck JAC (4,000 Litres)
GeneralVehicle BrandSPV
Chassis BrandJAC
Overall Dimension5830 * 2200 * 2100 mm
GVW / Kerb Weight7,300 kg / 3,100 kg
CabCab Capacity2 persons allowed
Air ConditionerAir conditioner equipped
EngineFuel TypeDiesel
Engine BrandJAC
Power92 Hp (68 KW)
Displacement2771 ml
Emission StandardEuro II, IV
ChassisDrive Type4X2, left hand drive or right hand drive
Transmission5 speed forward gear box and 1 reverse
Wheelbase/No. of axle3308 mm / 2
Tyre Specification7.00R16LT
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureTank Capacity4,000 Litres ( 1,000 gallons)
Tank MaterialCarbon steel
Flow Speed500 Litres / min
Delivery Head45 m
Suction Head6 m
HoseHigh quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

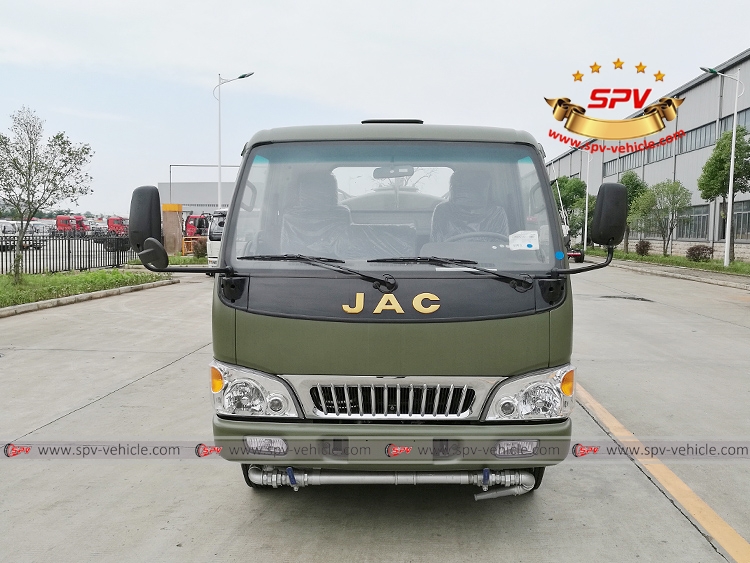

4,000 Litres Water Spraying Truck JAC-F
Photo 1: Front view of JAC water tank bowser(4,000 Litres)

4,000 Litres Water Spraying Truck JAC-LS

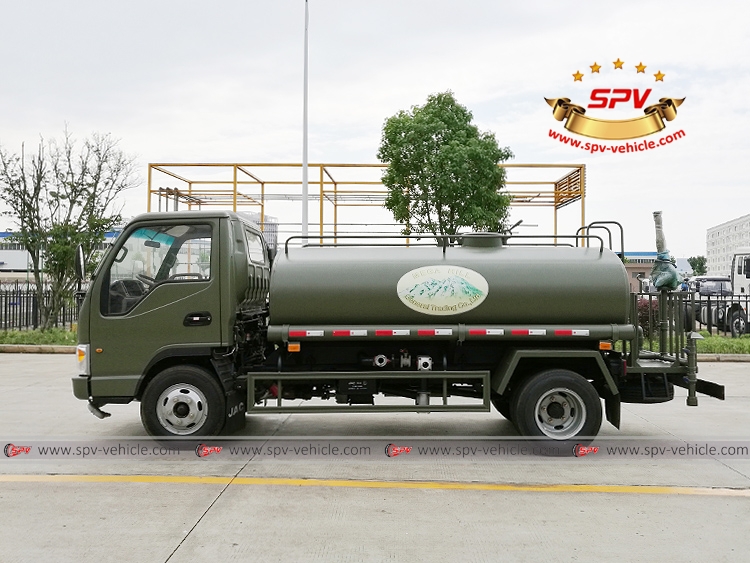

Photo 2: Left side view of JAC water tank bowser(4,000 Litres)

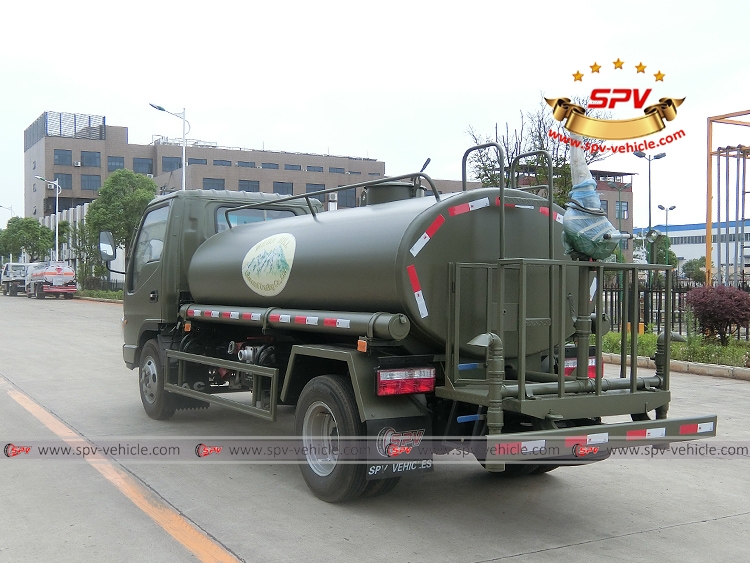

4,000 Litres Water Spraying Truck JAC-LB
Photo 3: Left back view of JAC water tank bowser(4,000 Litres)

4,000 Litres Water Spraying Truck JAC-B

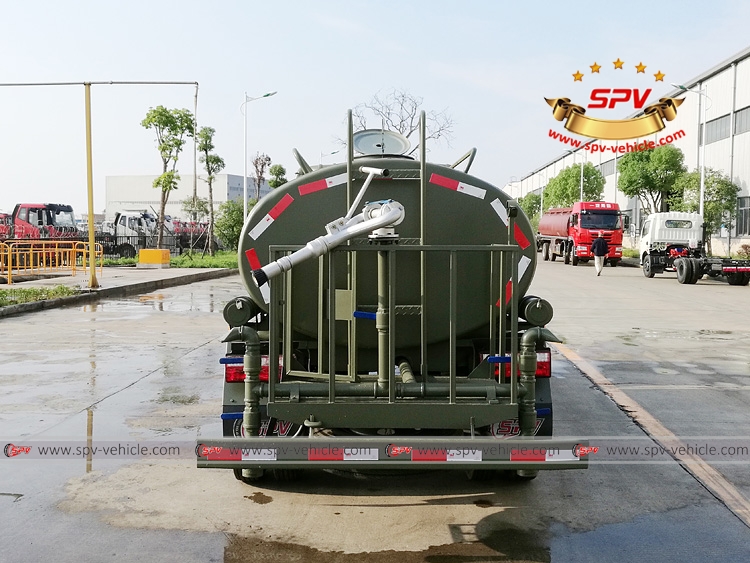

Photo 4: Back view of JAC water tank bowser(4,000 Litres)

4,000 Litres Water Spraying Truck JAC-RF
Photo 5: Right front view of JAC water tank bowser(4,000 Litres)

4,000 Litres Water Spraying Truck JAC-RS

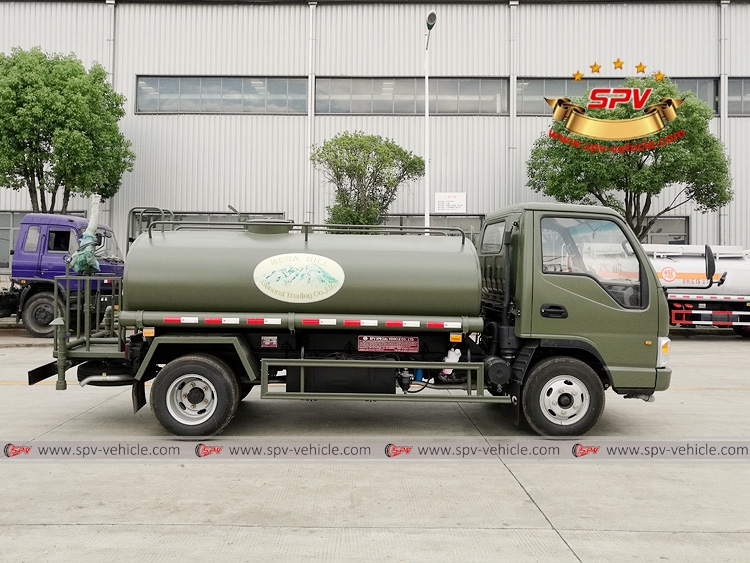

Photo 6: Right side view of JAC water tank bowser(4,000 Litres)

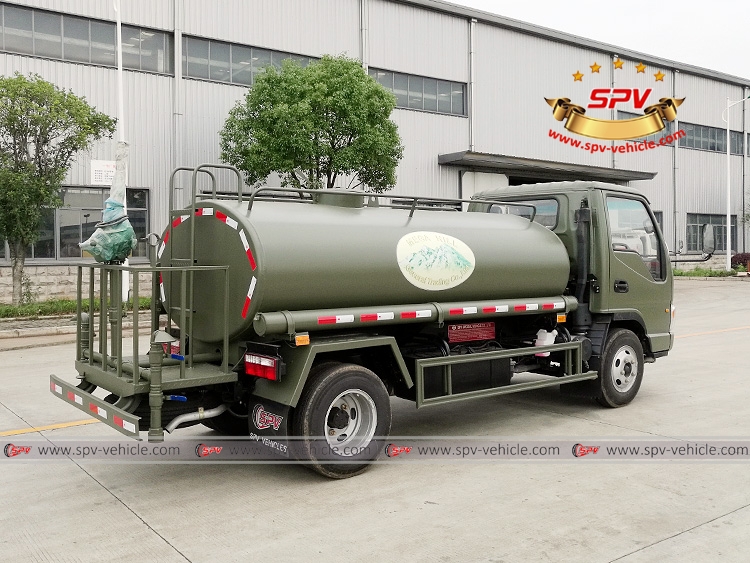

4,000 Litres Water Spraying Truck JAC-RB
Photo 7: Right back view of JAC water tank bowser(4,000 Litres)

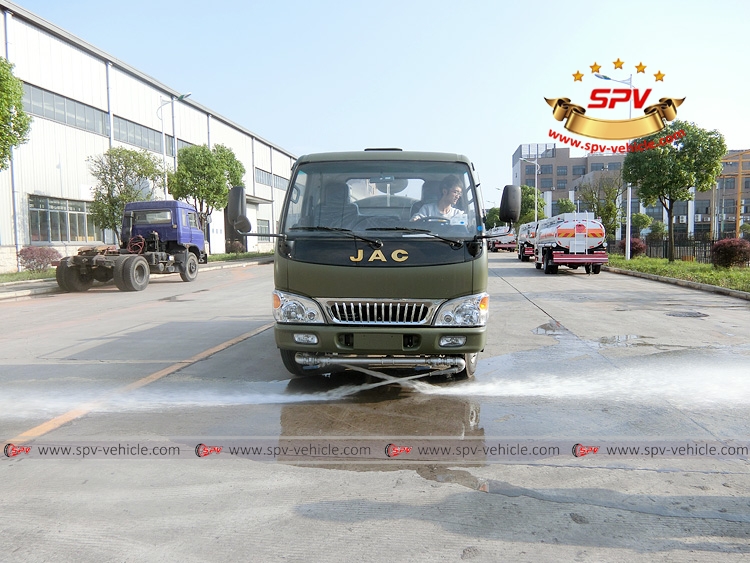

4,000 Litres Water Spraying Truck JAC-Front spraying test
Photo 8: JAC water tank bowser(4,000 Litres) - Front flushing function test

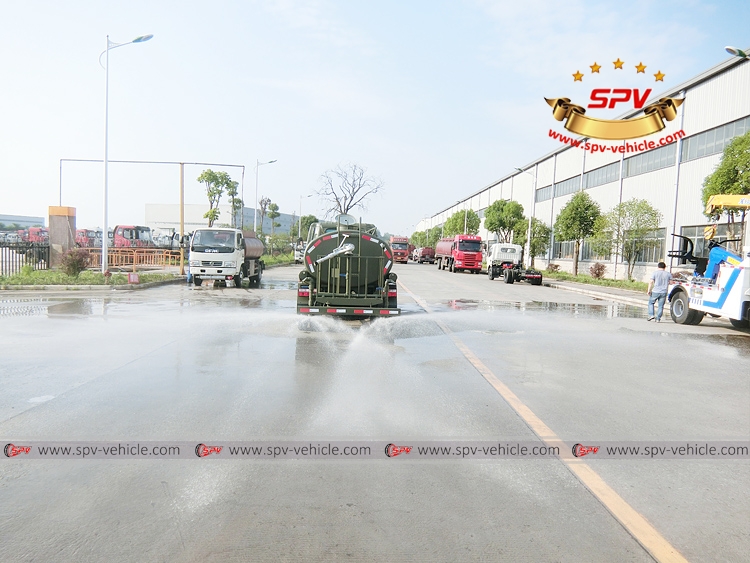

4,000 Litres Water Spraying Truck JAC-Rear Sraying Test
Photo 9: JAC water tank bowser(4,000 Litres) - Rear spraying function test

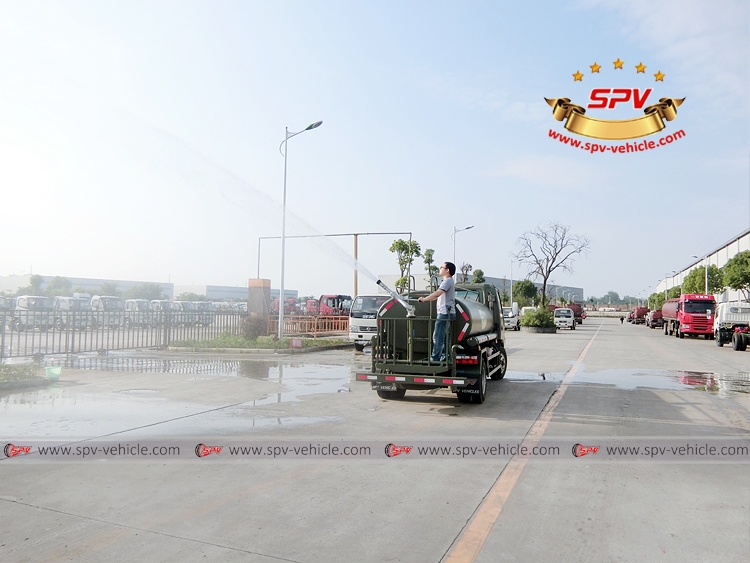

4,000 Litres Water Spraying Truck JAC-water canon function test
Photo 10: JAC water tank bowser(4,000 Litres) - Water canon function test

White color of 4,000 litres JAC water truck ↓

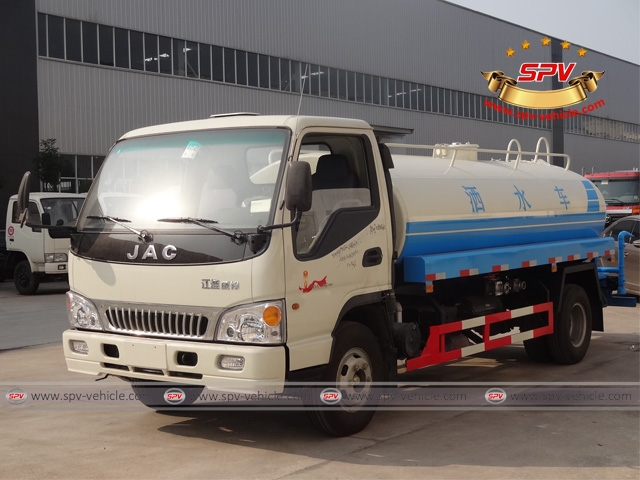

Photo 1: Front view of 4000Litres Water Truck JAC

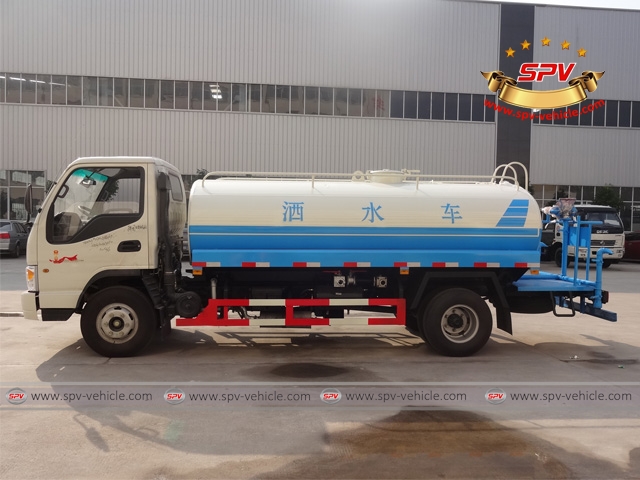

Photo 2: Side view of 4000Litres Water Tanker Truck JAC

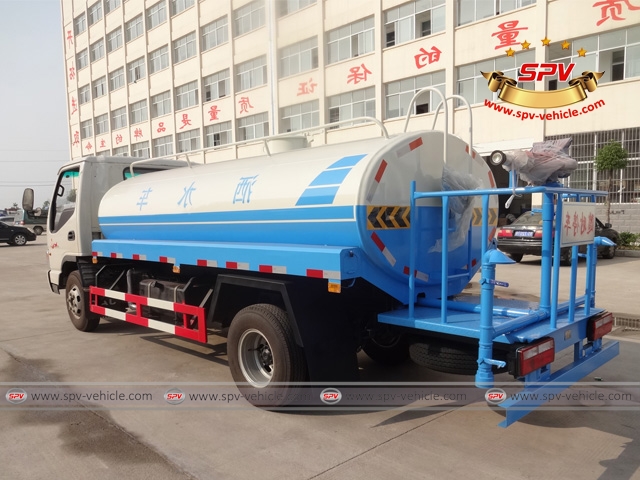

Photo 3: Rear view of 4000Litres Water Tanker Truck JAC (rear spraying system is optional)
