JMC 2,500 Litres Fire Water Truck

Fire Engine JMC

2,500 Litres Fire Water Truck

•

Function:

Fire engine(also called fire water truck, fire fighting water truck, fire fighting tanker, water tank fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- JMC chassis, perfect performance.
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.

Specification:

Fire Engine JMC (2,500 Litres)
General	Vehicle Brand	SPV
	Chassis Brand	JMC
	Overall Dimension	6200 * 2100 * 2900  mm
	GVW / Kerb Weight	7,000 kg / 4,200 kg
Cab	Cab Capacity	2 persons allowed
	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	JMC engine
	Power	115 Ps (85 KW)
	Displacement	2771 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left hand or right drive
	Transmission	5 Speed forward, 1 reverse
	Wheelbase	3360 mm
	Tyre Specification	7.00-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Metallic paint
Superstructure	Water Capacity	2,500 Litres (About 660 gallons)
	Foam Capacity	None
	Tank Material	Carbon steel
	Fire Pump	Flow speed	20L/s
		Pressure	1.0MPa
	Fire Cannon	Flow speed	Water	20 L/s
			Foam	/
		Shot	Water	48 m
			Foam	/
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static
	All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional	Ladders, floodlights...

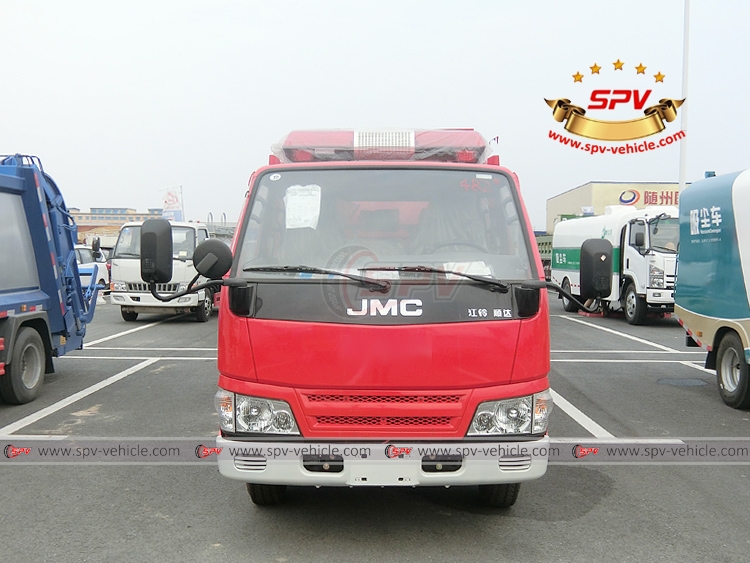

Photo 1: Front view of Fire Engine JMC(2,500 Litres)

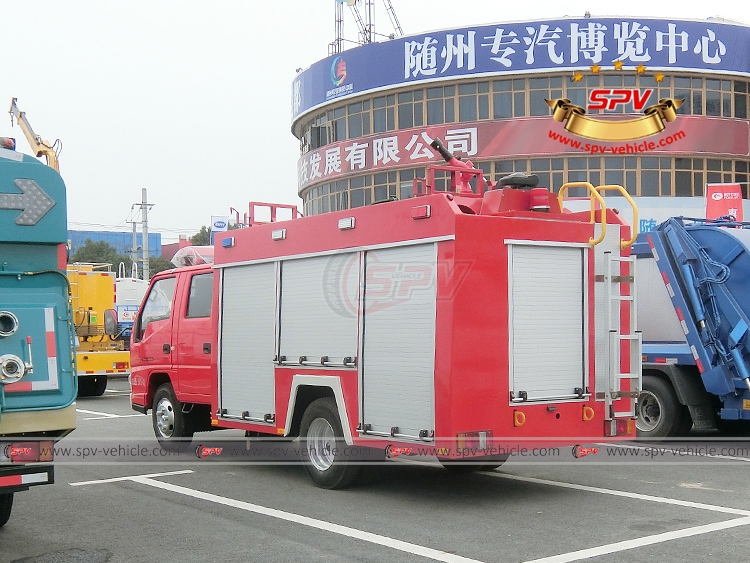

Photo 2: Left back view of Fire Engine JMC(2,500 Litres)

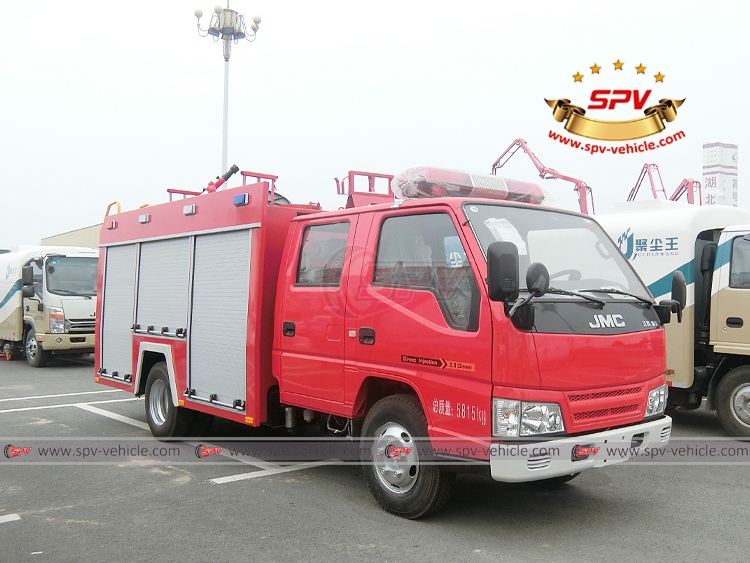

Photo 3: Right front view of Fire Engine JMC(2,500 Litres)

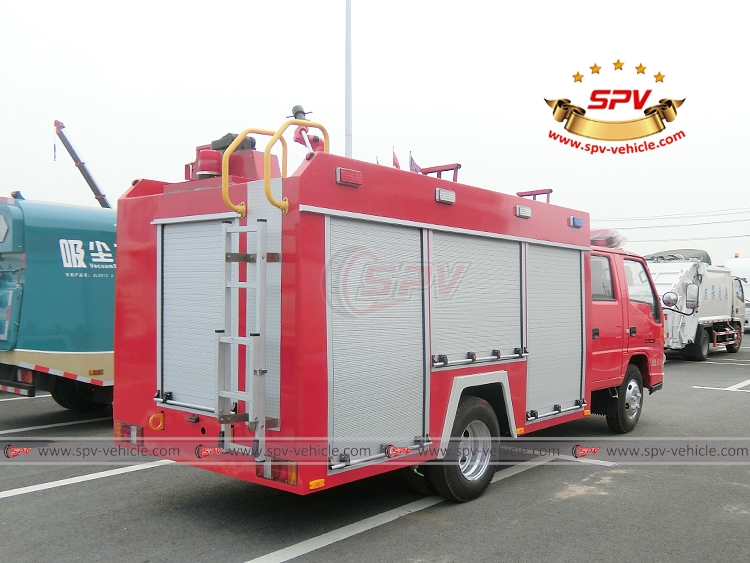

Photo 4: Right back view of Fire Engine JMC(2,500 Litres)
