JMC 4 CBM dustbin and 1.5 CBM water tank

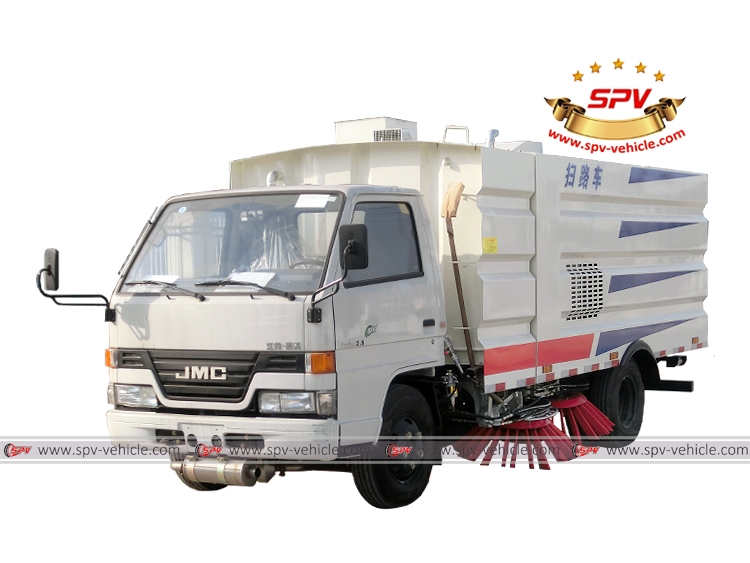

Road Sweeping Vehicle JMC
4 CBM dustbin and 1.5 CBM water tank


Function:
Road sweeping vehicle (also called road sweeper, road sweeper truck, sweeper truck, street-cleaner, road clean vacuum sweeper truck etc.) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeping vehicle is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
Features:
---- Adopting JMC chassis - top light chassis expert, performance reliable.
---- JMC diesel engine, super powerful, fuel efficient.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Specification:
Similar Key Words: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck
Road Sweeper JMC ( 4 CBM dustbin & 1.5 CBM water tank )
GeneralVehicle BrandSPV
Chassis BrandJMC
Overall Dimension5825 * 1980 * 2350 mm
GVW / Kerb Weight5,790kg / 4,500kg
CabCab Capacity2 persons allowed
Air ConditionerWith air conditioner
EngineFuel TypeDiesel
Engine BrandJMC
Power109 Ps (80 KW)
Displacement2771 ml
Emission StandardEuroIII or IV
ChassisDrive Type4X2, left hand drive or right hand drive
Transmission5 forward gears and 1 reverse
Wheelbase/No. of axle3360 mm / 2
Tyre Specification7.00R16LT
Tyre Number6 tyres and 1 spare tyre
Max Speed95 km/h
PaintMetallic paint
SuperstructureDustbin Capacity4 CBM
Dustbin MaterialStainless Steel
Water Tank Capacity1,500 Litres (About 400 gallons)
Water Tank MaterialStainless Steel
Sweeping Capacity42,000 m³/h
Sweeping Speed3-15 km/h
Max Sweeping Width2800mm
Brooms2 sets at each side, at diameter 900 mm
Auxiliary EngineJMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
