HOWO 12,000 Litres LPG Tanker Truck

LPG Dispensing Truck HOWO(RHD)
12,000 Litres LPG Tanker Truck
LPG Dispensing Truck HOWO(RHD)
Function:
LPG dispensing truck (also called LPG dispensing tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

LPG transport tank truck also can be used as a mobile gas station after equipped with gas dispenser, LPG gas pump.

The LPG tanker material uses a specialized steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.

LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
Features:
---- HOWO chassis, perfect performance
---- Chinese top Yuchai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:

LPG Dispensing Truck HOWO (12,000 Litres )
GeneralVehicle BrandSPV
Chassis BrandSinotruk - HOWO
Overall Dimension8200 * 2500 * 3400 mm
GVW / Kerb Weight16,000 kg / 9,100 kg
CabCab Capacity2 persons seat
Air ConditionerAir conditioner is equipped
EngineFuel TypeDiesel
Engine BrandChinese top Yuchai engine
Power160 Hp (118 KW)
Displacement4257 ml
Emission StandardEuro III
ChassisDrive Type4X2, left hand or right hand drive
Transmission6-speed forward, 1-reverse
Wheelbase/No. of axle4700 mm / 2
Tyre Specification9.00R20
Tyre Number6 tyres and 1 spare tyre
Max Speed100 km/h
PaintMetallic paint
SuperstructureTank Capacity12,000 Litres
Tank MaterialQ370R
Specialized steel for high pressure gas tank
Tank Thickness10 mm
Designe Pressure1.77 Mpa
Compression Test Pressure2.1 Mpa
Designe Temperature50 °C
LPG DispenserOptional
All other standard accessories: inlet/outlet, safety valve, emergency shut-off valve, drainback system, thermometer, pressure gauge, fire extinguisher, anti-static grounding tape…
Optional** Separate inlet and outlet.
** Pump, gas dispenser….

LPG Dispensing Truck HOWO - RF

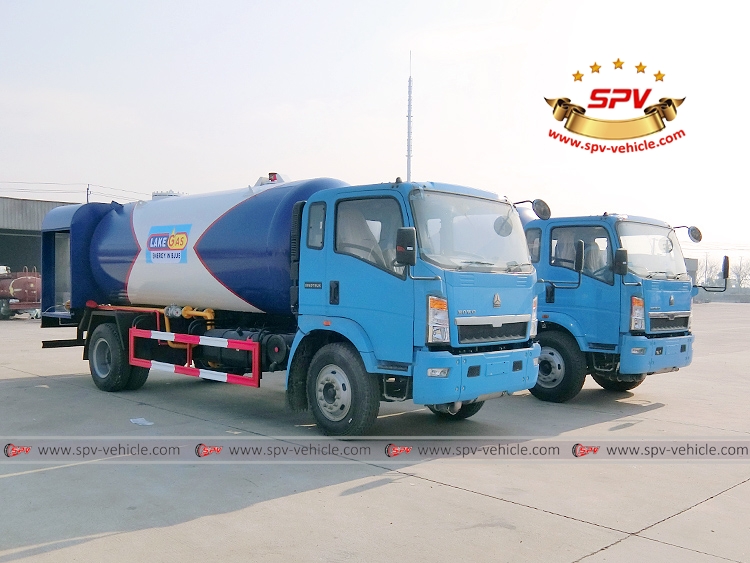

Photo 1: Right Front View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - Cabin Details

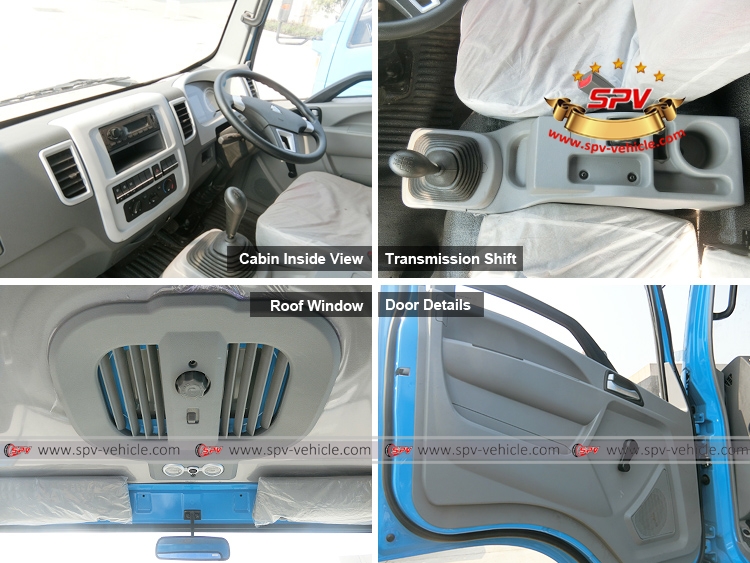

Photo 2: Cabin Inside Detailed View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - LS

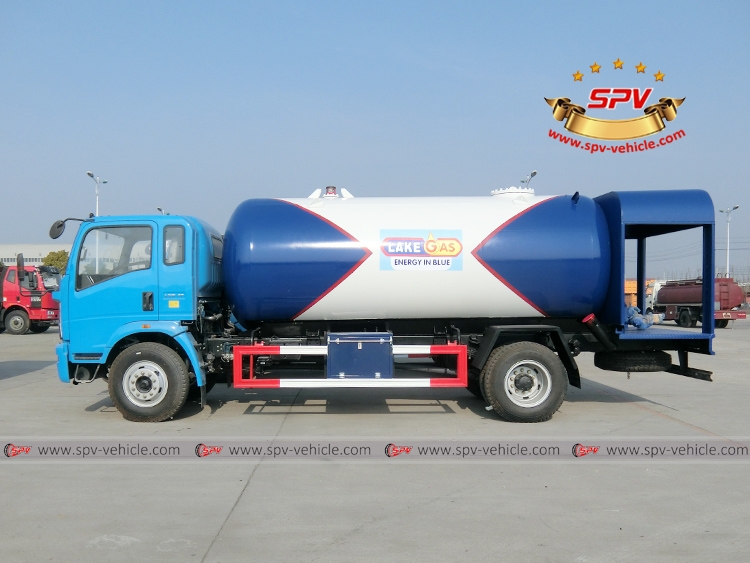

Photo 3: Left Side View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - LB

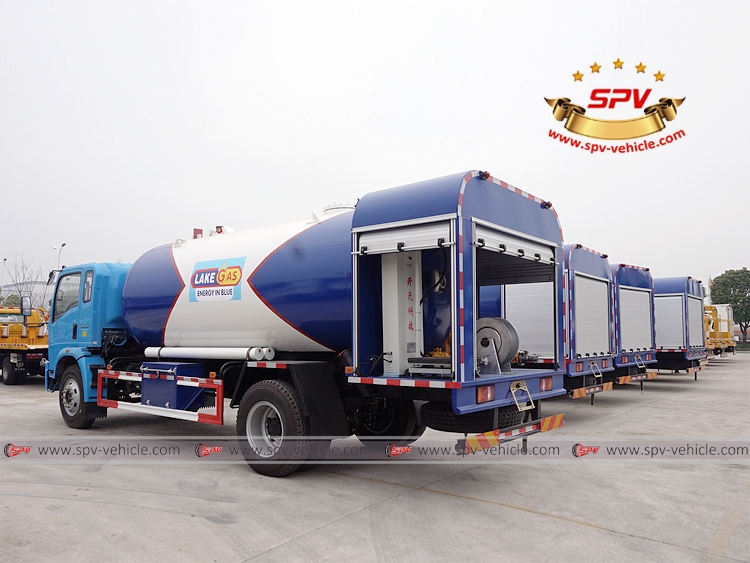

Photo 4: Left Back View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - B

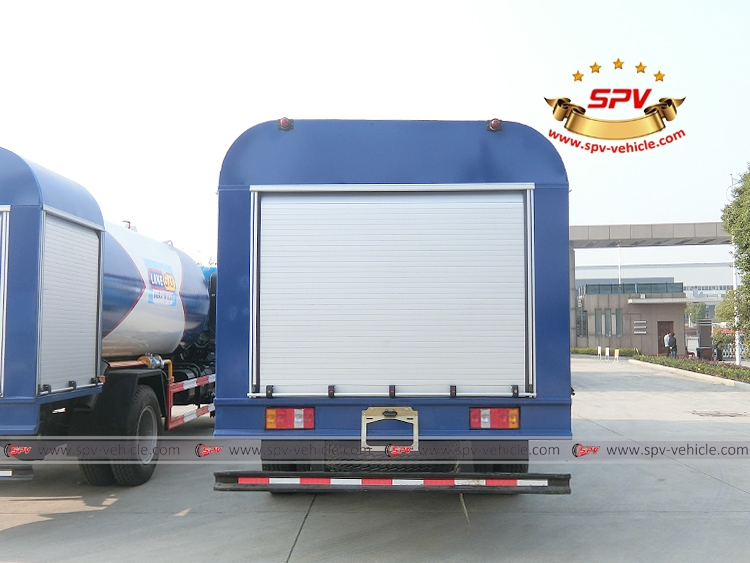

Photo 5: Back View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - Device Detail
Photo 6: Device details of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - RB
Photo 7: Right Back View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - B

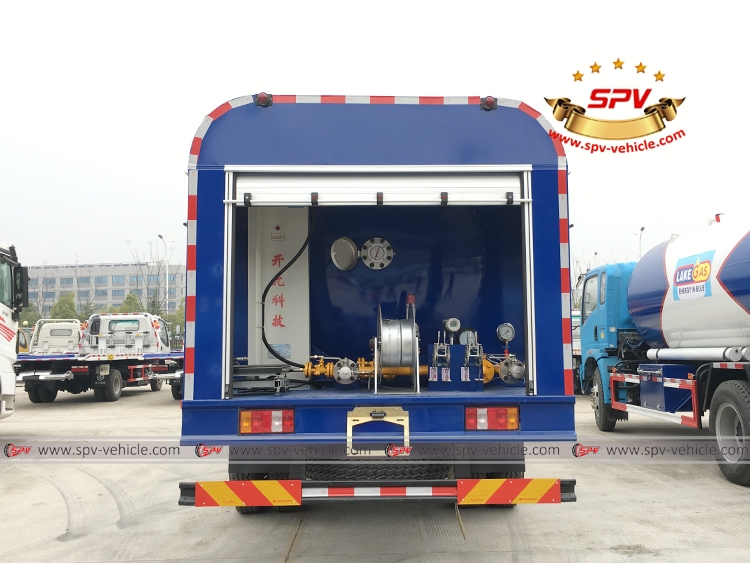

Photo 8: Back View of LPG Dispensing Truck HOWO(RHD)

LPG Dispensing Truck HOWO - Details

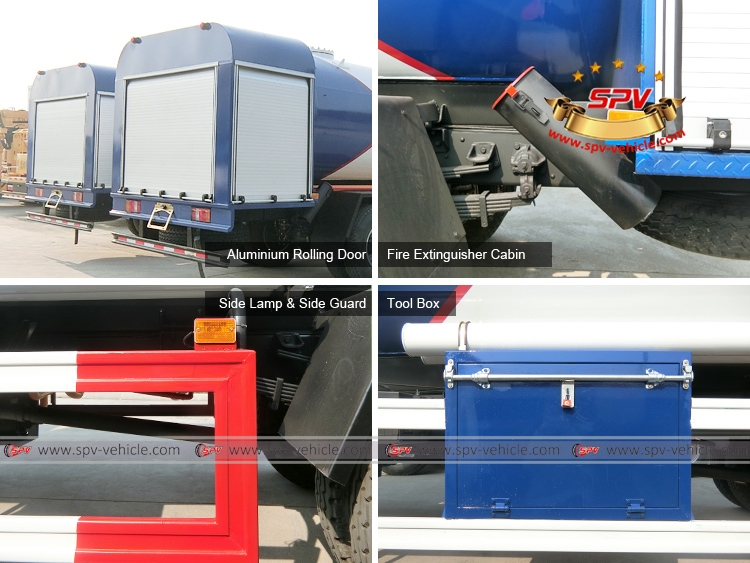

Photo 8: Detialed View of Whole Truck
Similar Key Words: truck mounted LPG tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck
