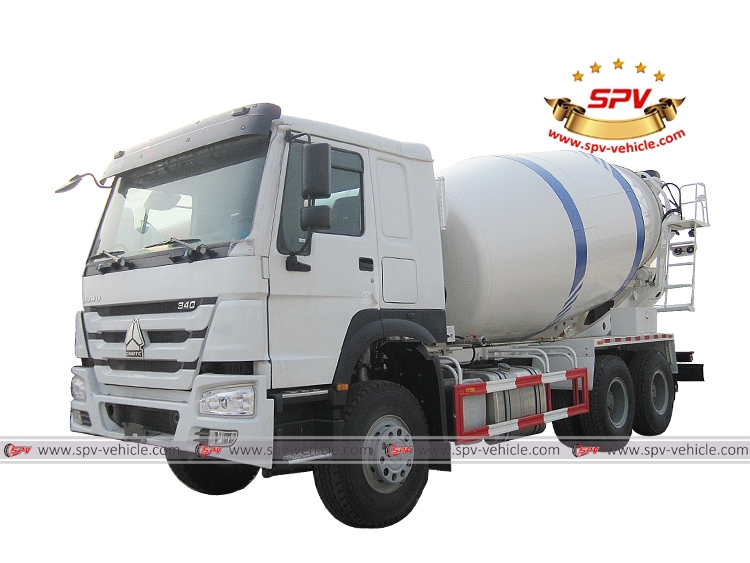

Sinotruk 10 m³ Volumetric Mixer Truck

Mixer Truck Sinotruk
10 m³ Volumetric Mixer Truck
Mixer Truck Sinotruk

Function:
Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.
Features:
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts,  massive, durable, perfect performance
---- Prolonged service life
Specification:
 Similar Key Words:  transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
Mixer Truck Sinotruk (10CBM)
GeneralVehicle BrandSPV
Chassis BrandSinotruk
Overall Dimension9040 * 2500 * 3850 mm
GVW / Kerb Weight25,000 kg / 13,220kg
CabCab Capacity3 persons allowed
Air ConditionerAir conditioner is optional
EngineFuel TypeDiesel
Engine BrandSino Truk engine
Power336 Hp (247 KW)
Displacement9726 ml
Emission StandardEuro III
ChassisDrive Type8X4, left or right hand drive
Transmission10-speed front, 1 reverse
Wheelbase/No. of axle 3950+1350 mm / 3
Tyre Specification11.00-20
Tyre Number10 tyres and 1 spare tyre
Max Speed90km/h
PaintMetallic paint
SuperstructureMixing Capacity10 m³
Drum MaterialAlloy steel
Hydraulic MotorImported Brand
HydraulicPumpImported Brand
Reduction BoxImported Brand
RadiatorHigh Class Chinese Brand
Rest Rate≤0.5%
Water Supply SystemAir pressure
Water Tank Volume400 L
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.

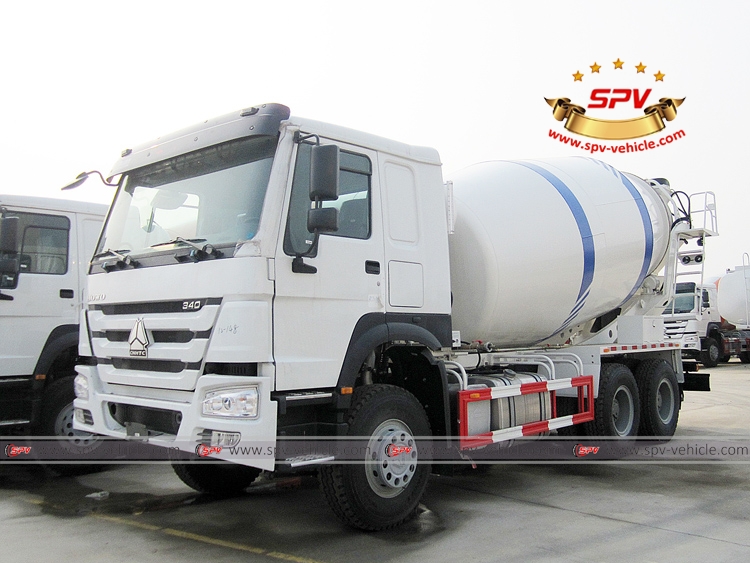

HOWO Concrete Mixer Truck -LF
Photo 1: Left front view of Mixer Truck Sinotruk Howo

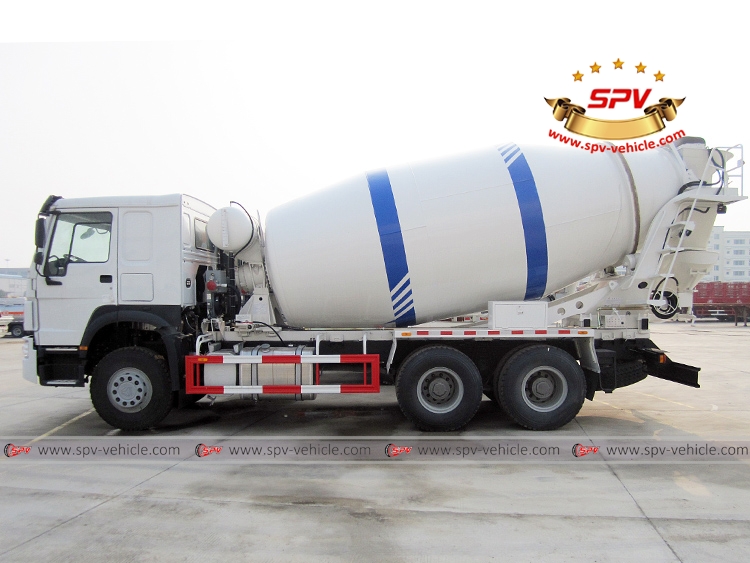

HOWO Concrete Mixer Truck -LS
Photo 2: Left side view of Mixer Truck Sinotruk Howo

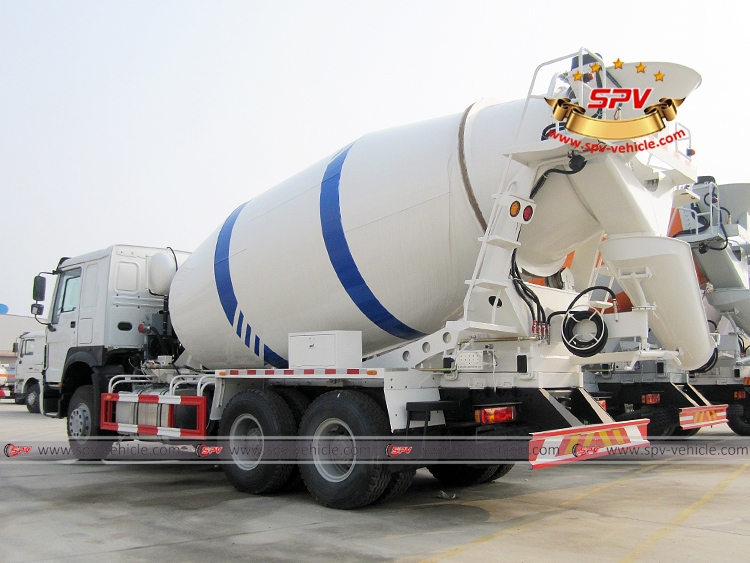

HOWO Concrete Mixer Truck -LB
Photo 3: Left back view of Mixer Truck Sinotruk Howo

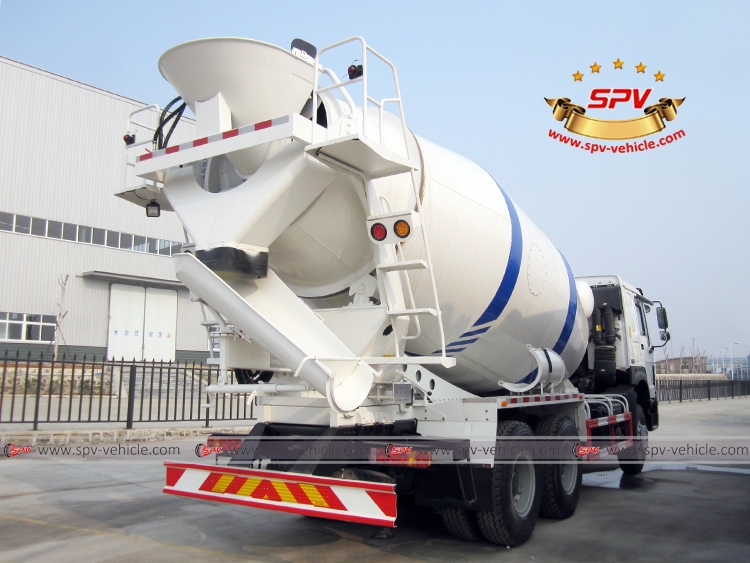

HOWO Concrete Mixer Truck -RB
Photo 4: Right back view of Mixer Truck Sinotruk Howo

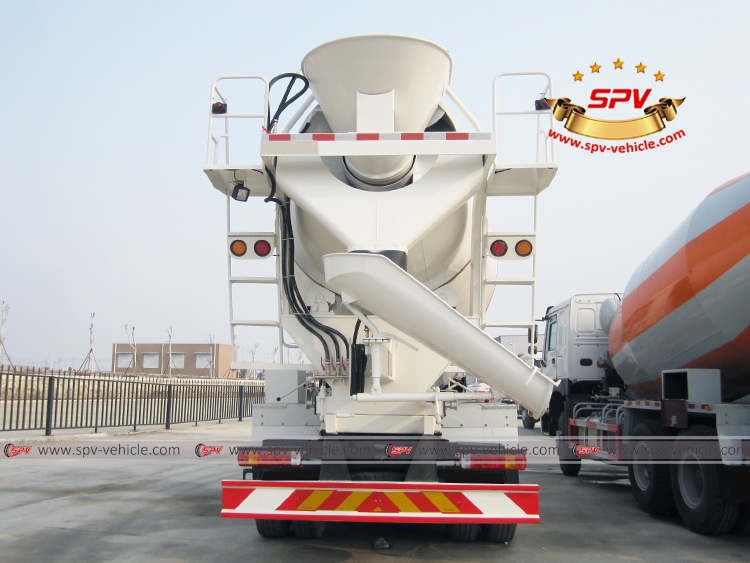

HOWO Concrete Mixer Truck -B
Photo 5: Back view of Mixer Truck Sinotruk Howo
