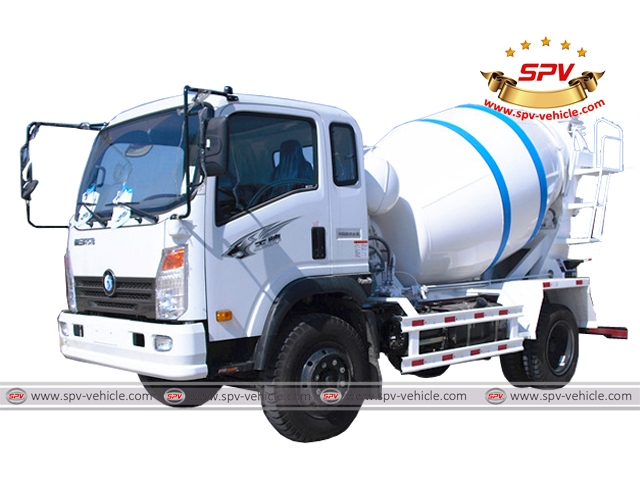

Sinotruk 5 m³ Concrete Mixer

Agitator Truck Sinotruk
5 m³ Concrete Mixer
Agitator Truck Sinotruk

Function:
Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.
Features:
---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts,  massive, durable, perfect performance
---- Prolonged service life
Specification:
 Similar Key Words:  transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck
Agitator Truck Sinotruk (5 CBM)
GeneralVehicle BrandSPV
Chassis BrandSinotruk
Overall Dimension7705 * 2500 * 3700 mm
GVW / Kerb Weight15,775 kg / 8,350 kg
CabCab Capacity3 persons allowed
Air ConditionerAr conditioner is optional
EngineFuel TypeDiesel
Engine BrandCummins engine
Power170 Hp (125 KW)
Displacement5900 ml
Emission StandardEuro III
ChassisDrive Type4X2, left or right hand drive
Transmission6-speed front, 1 reverse
Wheelbase/No. of axle4200 mm / 2
Tyre Specification9.00-20
Tyre Number6 tyres and 1 spare tyre
Max Speed80 km/h
PaintMetallic paint
SuperstructureMixing Capacity5 m³
Drum MaterialAlloy steel
Hydraulic MotorImported Brand
HydraulicPumpImported Brand
Reduction BoxImported Brand
RadiatorHigh Class Chinese Brand
Rest Rate≤0.5%
Water Supply SystemAir pressure
Water Tank Volume L
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.
