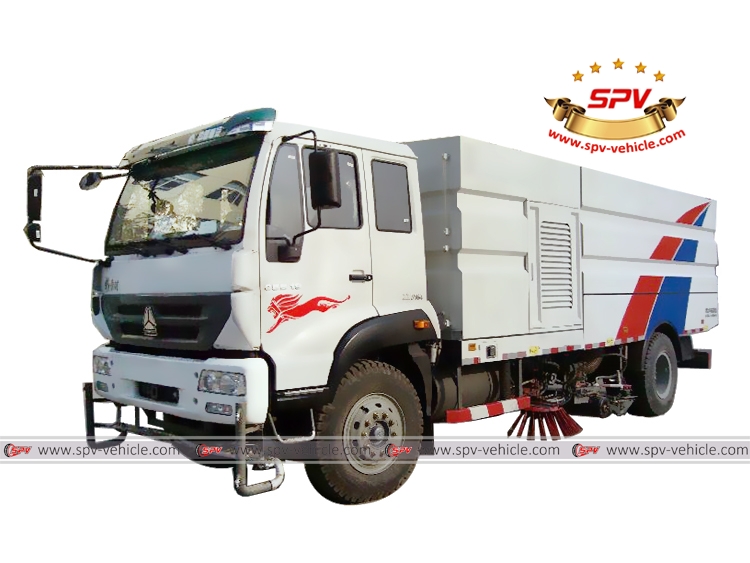

Sinotruk 7 CBM Dustbin and 9 CBM Water Tank

Road Washing Vehicle Sinotruk
7 CBM Dustbin and 9 CBM Water Tank


Function:
Street washing vehicle (also called road cleaning truck, road sweeper truck, road washing and cleaning truck, road sweeper truck, street sweeper truck, truck mounted sweeper) is used for washing, cleaning and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city, municipal roads and areas. Meantime, it has high pressure jetting function - washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

It is equipped with auxiliary engine, air blower, imported high pressure plunge pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.

Street washing truck has self cleaning system which could tip garbage and washing the dustbin automatically.
Features:
---- Sinotruk chassis, perfect performance.
---- Yuchai engine(Chinese top brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Imported Italian high pressure water pump, highly powerful for cleaning.
---- PLC operation and control system.
---- Massive, durable, long service life.
---- 7 CBM Dustbin and 9 CBM Water Tank
Specification:

Road Washing Vehicle Sinotruk (7 CBM Dustbin and 9 CBM Water Tank)
GeneralVehicle BrandSPV
Chassis BrandSinotruk
Overall Dimension8580 * 2500 * 3100 mm
GVW / Kerb Weight16,000kg / 11,350 kg
CabCab Capacity2 persons allowed
Air ConditionerW/ air conditioner
EngineFuel TypeDiesel
Engine BrandYuchai engine (Chinese top brand)
Power190 Ps (140 KW)
Displacement6494 ml
Emission StandardEuro III
ChassisDrive Type4X2, left hand or right hand drive
Transmission6-speed forward, 1 reverse
Wheelbase/No. of axle5000 mm / 2
Tyre Specification9.00-20
Tyre Number6 tyres and 1 spare tyre
Max Speed90 km/h
PaintMetallic paint
SuperstructureWater Tank9 CBM  (About 2,300 gallons)
Dustbin Material7 CBM , Stainless Steel
High Pressure PumpImported Italian high pressure water pump,
154L/min @ 160 bar
Working Speed3-20 km/h
Working Width3.5 m
Sweeping Capacity70,000 m³/h
Brooms2 sets
Suction PlateBig diameter 180mm, Hydraulic controll
Auxiliary EngineCummins engine (American brand),
170 HP (125 KW), super powerful
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual……
Optional** Stainless steel water tank.
** Front snow plow.
** Elevating Platform.
** High cannon.
Similar Keywords: road cleaning truck, road sweeper truck, road washing and cleaning truck, road sweeper truck, street sweeper truck, truck mounted sweeper
