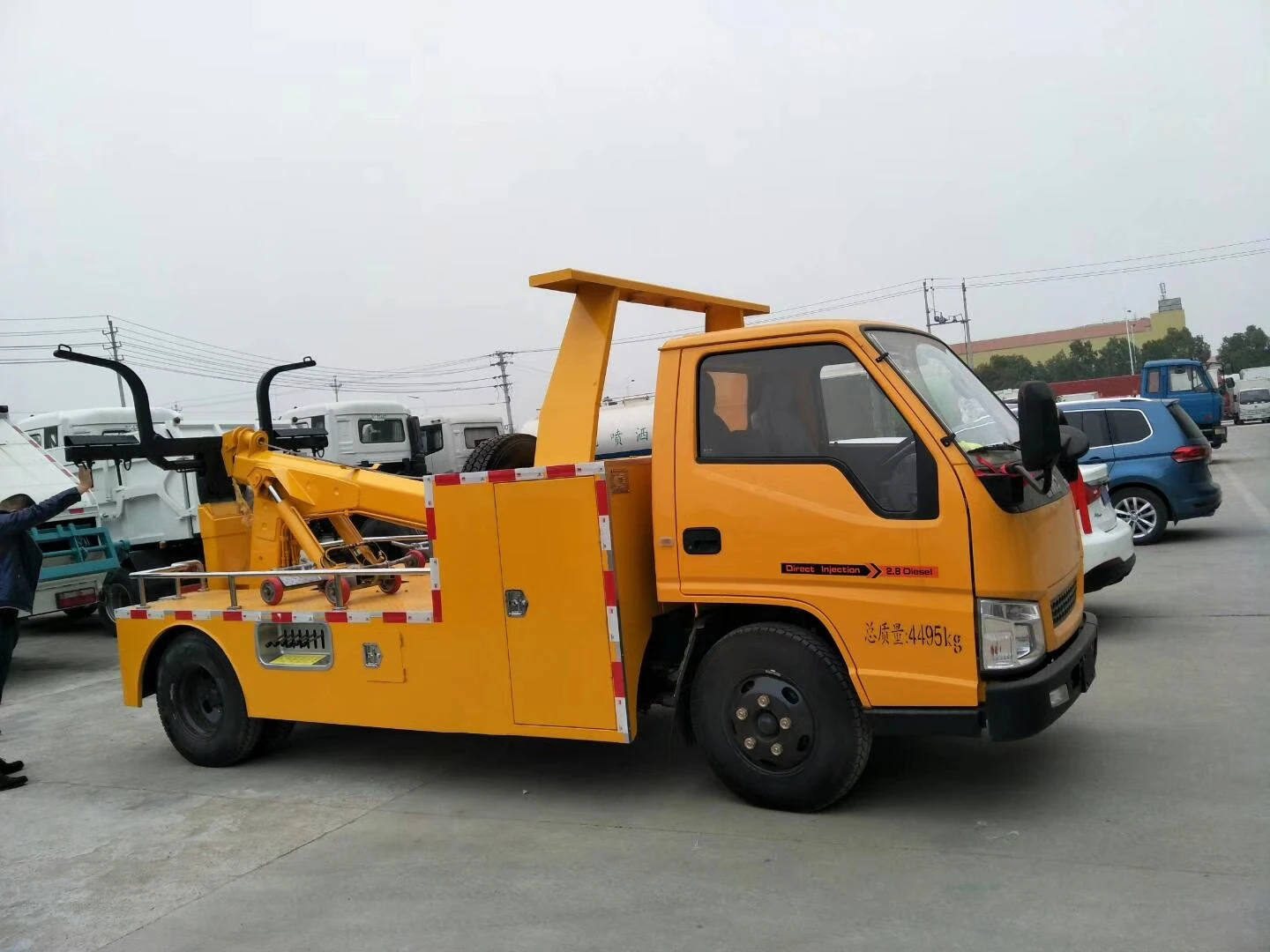

China JMC 3 ton small recovery rescue truck emergency tow truck
China JMC 3 ton small recovery rescue truck emergency tow truck
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Capacity :2ton - 60ton
7. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
8.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sintruk.Shacman.I-SUZU.I-VECO
Product Description
We provide various wreckers with different types of towing equipment such as Boom, Hook and Chain ("sling" or "belt lift"), Wheel lift (Spectale Lift), Flatbed ("rollback" or a "slide"), Integrated ("Self Loader" Snatcher, Quick Pick or Repo Truck), etc. ranging from 3MT to 20MT capacity.
For the flatbed tow truck, the basic equipment includes double sides operation devices, lifting arm, winch, checkered plate, assistant trolley, yellow alarm lamp, strap devices, etc.
For the flatbed tow truck, the slide-to-ground-flatbed is available and attachable baffles can be added. Also the straight or knuckle crane and buckets on the crane can be added.
Vehicle technical parameters
| |||
product name
|
China JMC 3 ton small recovery rescue truck emergency tow truck
|
Dimensions
|
5.5 x2.05x2.5 meters
|
Total mass
|
4.495 tons
|
Curb quality
|
4.1 tons
|
Hoisting specification
|
3 tons
|
Tops
|
3 tons
|
Chassis technical parameters
| |||
Chassis name
|
Jiangling
|
Chassis model
|
JX1041TG25
|
Number of axes
|
2
|
Number of tires
|
7 (including spare tire)
|
Wheelbase
|
3.36 meters
|
Tire specifications
|
7.00R16
|
Gearbox
|
5 files
|
Rear axle
|
2.5 tons
|
Fuel type
|
Diesel
|
brake
|
Oil brake
|
Emission basis
|
GB17691-2005 country V, GB3847-2005
| ||
engine model
|
Engine manufacturer
|
Displacement (ml)
|
horsepower
|
JX493ZLQ5
|
Jiangling Company
|
2771
|
115 horsepower
|
Top basic configuration
| |||
The standard configuration
|
3 tons of tops, 3 tons of winches, imported hydraulic system, 25 meters of steel wire rope, a pair of auxiliary wheel trolleys, a pair of 7-fork, a pair of square sleeves, 4 sets of straps, chain hooks, two work lights, yellow electronics Engineering warning lights, a set of vehicle tools.
| ||
Optional configuration
|
Can be equipped with automatic clamping device, fork, fork, LED long row flashing lights
| ||
Top loading configuration:
JMC small towing trucks. 3 tons of joint body tops, with 4 tons of hydraulic winch, imported hydraulic system, double side linkage operation, 25 meters steel wire rope, one set of vehicle tools, 4 straps, 3 rear work lights, 1 set of auxiliary light assemblies, auxiliary 1 set of tracheal assembly with 1 yellow long row of warning lights. Our company's wrecker adopts advanced foreign skillful product technology and production technology, all imported seals, and reinforced beams are fixed to enhance the carrying capacity.
Product Pictures
Flatbed Wrecker Towing Truck photos
The detail photos that introduce How to load truck, how to operate truck, how to produce the wrecker towing truck
Detailed Images
Company Information
About our company:
Chengli Special Automobile Co., Ltd has nearly 16 years’ history since 2004, where the first heavy duty truck was produced in China.
We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.
This is our advantage. Our products with BV, WMI, CCC and ISO certificate approved!
Packaging & Shipping
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container
2.By Flat Rack Container
Trust us
1.11 years manufacture experience, good at controlling our products' quality. Choosing us ,you choose professional supplier.
2.The good faith management is our philosophy,and welcome visits our company at any time.
3.According to your order, we provide suitable trailer.
4.We also provide rational packing and shipping program, let shipment save money and security.
Just trust us,you will get a satisfactory answer.
FAQ
1. Does your company has your own factory?
- Yes, we have a factory ourselves,which is in this business for 12 years in China. Our factory is very famous
where is manufacturing various trailers in ShanDong, China.
2. Can you satisfy my special requirement?
- Definitely! We can make the trailers based on your requirement.
3. What’s your minimum quantity?
- Min.1set
4. How to trust us?
- The good faith management is our philosophy, and you are welcome to visit our company at any time.
5. What’s your payment term?
--- T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
--- L/C: 100% irrevocable credit of letter.
