Dongfeng 10 ton One for three tow wrecker truck and airport tow truck in malaysia

Dongfeng 10 ton One for three tow wrecker truck and airport tow truck in malaysia

Our Services

 1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .

3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.

4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.

5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;

6. Capacity :2ton - 60ton

7. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.

8.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sintruk.Shacman.I-SUZU.I-VECO

Product Description

We provide various wreckers with different types of towing equipment such as Boom, Hook and Chain ("sling" or "belt lift"), Wheel lift (Spectale Lift), Flatbed ("rollback" or a "slide"), Integrated ("Self Loader" Snatcher, Quick Pick or Repo Truck), etc. ranging from 3MT to 20MT capacity.

For the flatbed tow truck, the basic equipment includes double sides operation devices, lifting arm, winch, checkered plate, assistant trolley, yellow alarm lamp, strap devices, etc.

For the flatbed tow truck, the slide-to-ground-flatbed is available and attachable baffles can be added. Also the straight or knuckle crane and buckets on the crane can be added.

Vehicle technical parameters
product name	4x2 Dongfeng 10 ton One for three tow wrecker truck and airport tow truck	Dimensions	8.58x2.48x2.73 meters
Total mass	8.49 tons	Curb quality	6.2 tons
Tablet size	6.22 meters	Plate thickness	4 thick
Hoisting specification	4 tons	Tops	4 tons
Chassis technical parameters
Chassis name	Dongfeng 145	Chassis model	CA1083P62K1L2E4
Number of axes	2	Number of tires	7 (including spare tire)
Wheelbase	4.4 meters	Tire specifications	8.25-16
Gearbox	6 files	Rear axle	7 tons
Fuel type	Diesel	brake	Air brake
Emission basis	GB17691-2005 country V, GB3847-2005
engine model	Engine manufacturer	Displacement (ml)	horsepower
BF4M2012-14E4	China First Automobile Group Corporation	4040	160 horsepower
Top basic configuration
The standard configuration	10 tons joint body top, with winch 8 tons x 2 hydraulic winch, 35 meters steel wire rope, 4 sets of steel forks, a set of trailer sets, a set of steel ear lifting forks, a set of tire protection devices, a set of vehicle tools, auxiliary lights A set of assemblies, a set of auxiliary air pipe assemblies, with a set of yellow long row engineering lights.

Top loading configuration:

  Dongfeng flat-panel is one for three wreckers. The flat plate has a length of 7 meters and a width of 2.5 meters. The flat plate can use 4 thick tread plates or a new one-time forming punching plate. 6 tons tops, equipped with hydraulic winch 5 tons, 25 meters steel wire rope, double side linkage operation, pair of auxiliary wheel trolleys, pair of tow forks, pair of seven-word forks, pair of square sleeves, one set of car tools, bundled With 4 sets, two work lights, with yellow LED long row electronic police lights. Our company's wrecker adopts advanced foreign product technology and production technology, all imported hydraulic parts for seals, new anti-skid plates, reinforced beams, enhanced load-bearing capacity, more stable during the trailer process, and the platform loading surface is stamped with die. Strong endurance and no deformation, our company has a nationwide after-sales service site to ensure that the home, you can rest assured to buy.
(Optional with imported multi-way valve, fork, fork, chain hook, wire tire, hand washing box, LED long row of police lights, etc.,)

Product Pictures

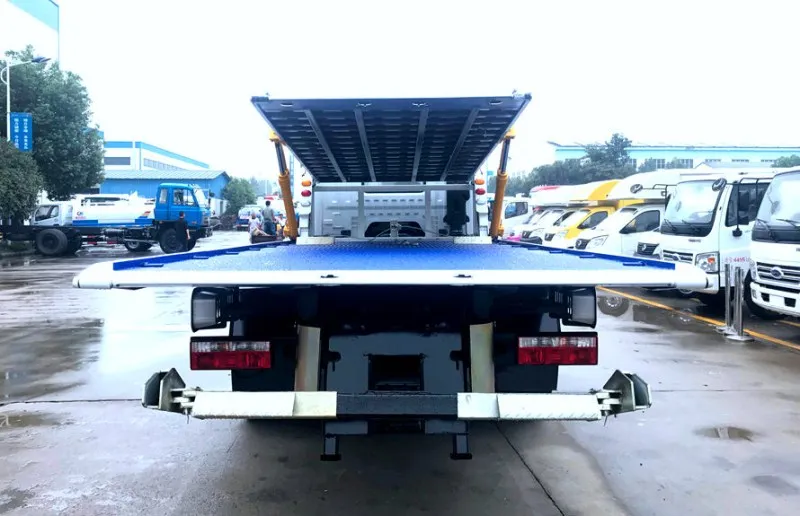

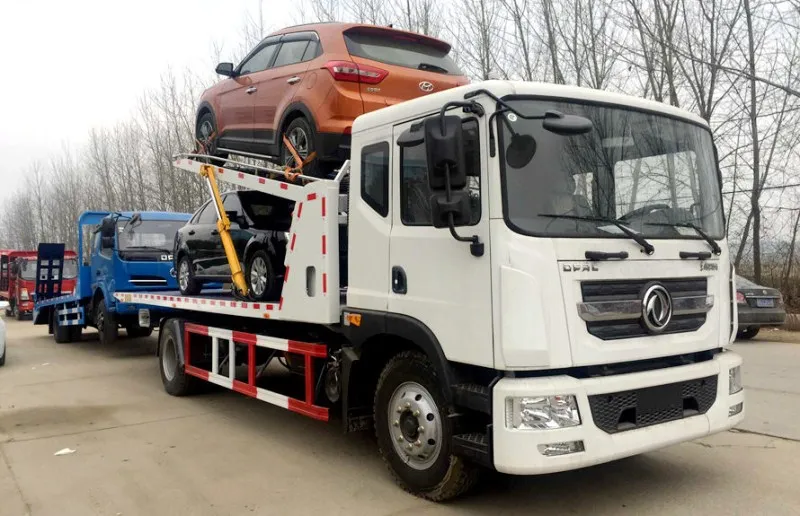

 Flatbed Wrecker Towing Truck photos

The detail photos that introduce How to load truck, how to operate truck, how to produce the wrecker towing truck



Detailed Images



Company Information

About our company:

Chengli Special Automobile Co., Ltd has nearly 16 years’ history since 2004, where the first heavy duty truck was produced in China.

We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.

This is our advantage. Our products with BV, WMI, CCC and ISO certificate approved!

Packaging & Shipping

1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container

 Trust us

1.11 years manufacture experience, good at controlling our products' quality. Choosing us ,you choose professional supplier.

2.The good faith management is our philosophy,and welcome visits our company at any time.

3.According to your order, we provide suitable trailer.

4.We also provide rational packing and shipping program, let shipment save money and security.

Just trust us,you will get a satisfactory answer.

FAQ

 1. Does your company has your own factory?

- Yes, we have a factory ourselves,which is in this business for 12 years in China. Our factory is very famous

where is manufacturing various trailers in ShanDong, China.

2. Can you satisfy my special requirement?

- Definitely! We can make the trailers based on your requirement.

3. What’s your minimum quantity?

- Min.1set

4. How to trust us?

- The good faith management is our philosophy, and you are welcome to visit our company at any time.

5. What’s your payment term?

--- T/T: 30% deposit by T/T, 70% balance should be paid before shipment.

--- L/C: 100% irrevocable credit of letter.
